Kenwood KDC 6011 Owners Manual

Page 1

KENW...

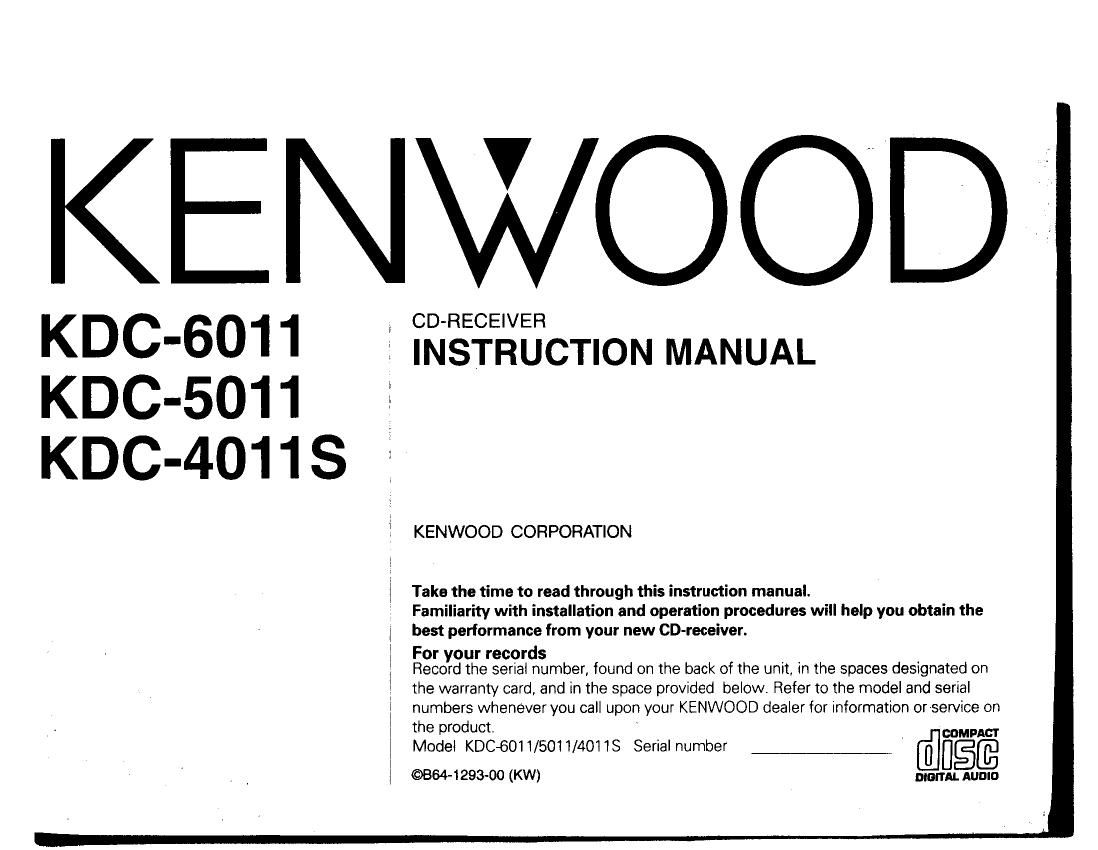

KDC'5011 lClrilFéEicl'Elg/SCTION MANUAL
KDC-5011
KDC-4011 S :

i KENWOOD CORPORATION

i Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the
best performance from your new CD-receiver.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on
the warranty card, and in the space provided below. Refer to the model and serial
numbers whenever you call upon your KENWOOD dealer for information or-service on
the product.

, . COMPACT
Modei KDC-601 1/5011/401 18 Serial number @D§@
©BS4-1293-00 (KW) DlflllAL AUDIO

Page 2

Contents

Before use
Warning..........' .................
Safety precautions
Handling Compact discs

Basic operations
Power .......................
Switching Modes.
Volume ..............
Menu System
Attenuator ..

Loudness .................

Tuner features
Tuning .............................
Station Preset Memory
Auto Memory Entry .........
Clean Reception System Circuit (CRSC).
Station Name Preset (SNPSl .....
Station Name Preset Play (SNP
Switching Display for Tuner .............

REDS features
RBDS (Radio Broadcast Data System) ..............
Alarm ................................................
Traffic information Function
Program Type (PTY) Function
Radio Text ...............
Radio Text Scroll ......

CD/External disc control features
Playing CDs ......................................
Playing Other Disc mode
Switching Display for Discs...
Fast Forwarding and Reversing Disc Play..
Track Search ......
Disc Search .......
Track / Disc Repeat ..
Track Scan .
Disc Scan
Random Play .....
Magazine Rando

Text Scroll. ..........
Disc Name Preset Play
Presetting Disc Names ...... '.

21 Other features

._ Audio Control Shtting...
Switching Clock Display
Switching Graphic Display
Switching Display
Dimmer ...........
Automatic Dimmer Function
Selectable Illumination ,
Touch Sensor Tone
Contrast Adjustment. .
Adjusting Time .28
Adjusting Time .29
Disabled System Indicator (DSI). .29
Theft Deterrent Faceplate .30

Basic operations of remote

Installation
Installation Procedure
Accessories ...............
Connecting Wires to ..
Installation ...............................

..38
Specifications ..................................................... 4 1

Troubleshooting guide..
