Kenwood KDC 6007 Owners Manual

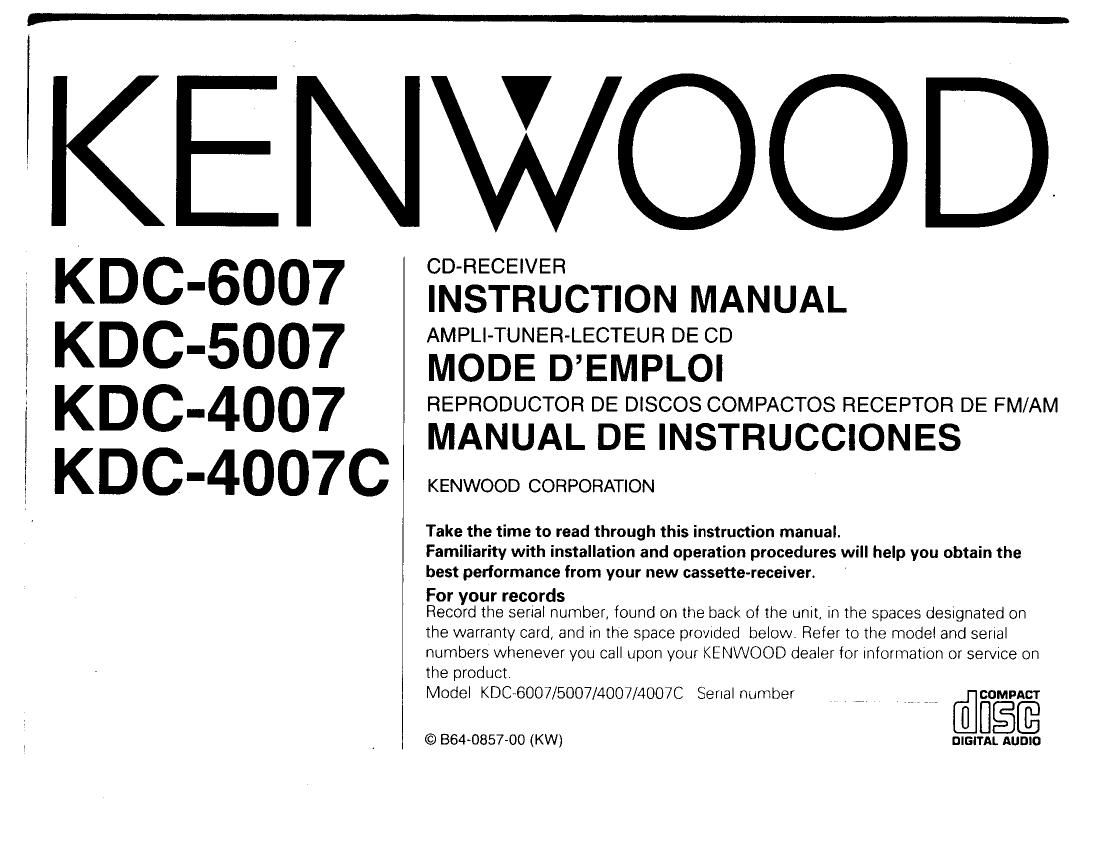

Page 1

KENWOOD

y KDC-6007
l KDC-5007
J KDC-4007
KDC-4007C

CD-RECEIVER

INSTRUCTION MANUAL

AMPLI-TUNER-LECTEUR DE CD

MODE DEMPLOI

REPRODUCTOR DE DlSCOS COMPACTOS RECEPTOR DE FM/AM

MANUAL DE INSTRUCCIONES
KENWOOD CORPORATION

Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the
best performance from your new cassette-receiver.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on
the warranty card, and in the space provrded below. Refer to the model and serlal
numbers whenever you call upon your KENWOOD dealer for Information or service on
the product.

Model KDC-6007/5007/4007/4007C Senal number 77 7 [flcompmrr

USE}

© BG4~0857-00 (KW) DIGITAL AUDIO

Page 2

English

Contents

Before use
Warning .......................
Safety precautions .....
Handling Compact disc

Buttons and Display

Basic operations ............................................................................ 8
Tuner features ......... .,8
CD player features ................ ..9
Disc changer control features .. ..9
Other features ....................... .,.10
Remote ....................................................................................... 10
Basic operations
Power ............................................................................ 11
Volume... .11
Attenuator .. ...11
Loudness .......................... ...11
Basic Operations of Rem Control .......................................... 12
Tuner features
Tuning ......................................................................................... 13
Station Preset Memory.. ...14
Auto Memory Entry ............................. ..14
Clean Reception System Circuit (CRSC) ...14
Direct Access Tuning .................................................................. 14
CD player features
Playing CDs ................................................................................ 15
Switching Display for CDs ...................... .15
Fast Forwarding and Reversing Disc Play.. .,15
Track Search ........................................ ..15
Direct Track Search ...16
Track Repeat ...... .,,16
Track Scan. .16
Random Play ............................................................................... 16
Disc changer control features
Playing Discs Using 8 Disc Changer ........................................... 17
Switching Display for Discs .................. ,.17
Fast Forwarding and Reversing Disc Play. 17

Track Search17

Disc search ................................................................................. 18
Direct Track Search
Direct Disc Search,
Track /Disc Repeat.

Track Scan ........... .19
Disc Scan ..... .19
Random Play .............. 19
Magazine Random Play. 120
Presetting Disc Names ............................................................... 20
Other features
Audio Control Setting .................................................................. 21
Selectable illumination .. ............................ 21
Switching Preout .......................................... 23
Clock Display ..................... .23
Adjusting Time ......................... .23
Disabled System Indicator (DSI) .......................... 23
Theft Deterrent Faceplate .......................................................... 24
Installation
Accessories ................................................................................. 25
installation Procedure ................................................................. 25
Connecting Wires to Terminals .................................................. 26
Installation ................................................................................... 27
Troubleshooting Guide ................................................ 30
Specifications ................................................................ 33

Page 18

English

18

Disc changer control features (See page 9/

Search forward or backward through the discs in a disc chang-

er.

Making a Reverse Disc Search:
Press the DISC - button to display the desired disc number.
Each time the button is pressed, the displayed disc number
decreases by one.
Play starts at the beginning of the displayed disc.

Making a Forward Disc Search:
Press the DISC + button to display the desired disc number.
Each time the button is pressed, the displayed disc number
increases by one.

Play starts at the beginning of the displayed disc.

LOAD is displayed when discs are being exchanged on the disc
changer.

Function of Remote (See page 70)

Direct Track Search

Using the remote, directly input the track number that you
want to listen to.

1 Using the number buttons on the remote, input the number of
the track that you want to listen to.
The selected track number will blink in the display for 10 sec
onds.
lf you make no further input in the lO-second period, the num
ber entry mode will automatically be canceled.

2 Press either the TRACK+ or TRACK- button while the track
number is blinking.
The track starts playing.

Canceling Direct Track Search While It Is Operating:
Press the b" button.

You cannot use the direct track search function while domg track
or disc scans or using random or magazine-random play.

l

Function of Remote (See page 10)
Direct Disc Search

Using the remote, directly input the disc number that you
want to listen to.

1 Using the number buttons on the remote, input the number of
the disc that you want to listen to.
The selected disc number will blink in the display for 10 sec-
onds.

If you make no further input in the lO-second period, the num-
ber entry mode will automatically be canceled.

- Input "0" to select disc 10.
- If you input more than two numbers all at once, a search will be
made only of the last number input.

2 Press either the DISC+ or DlSC- button while the number
inputted is blinking.
The disc starts playing.

Canceling Direct Disc Search While It Is Operating:
Press the >II button.

Track / Disc Repeat

Repeat playing the track or the disc currently being listened
to.

Turning Repeat Play On/Ofl:
Press the REP button to swnch repeat track/disc play on and
off as follows.

W

Track Repeat ON
V

Disc Repeat ON
V

Track/Disc Repeat OFF
_.J

The REP indicator lights up when repeat play is turned on,
The track number blinks in the display when track repeat is on.
