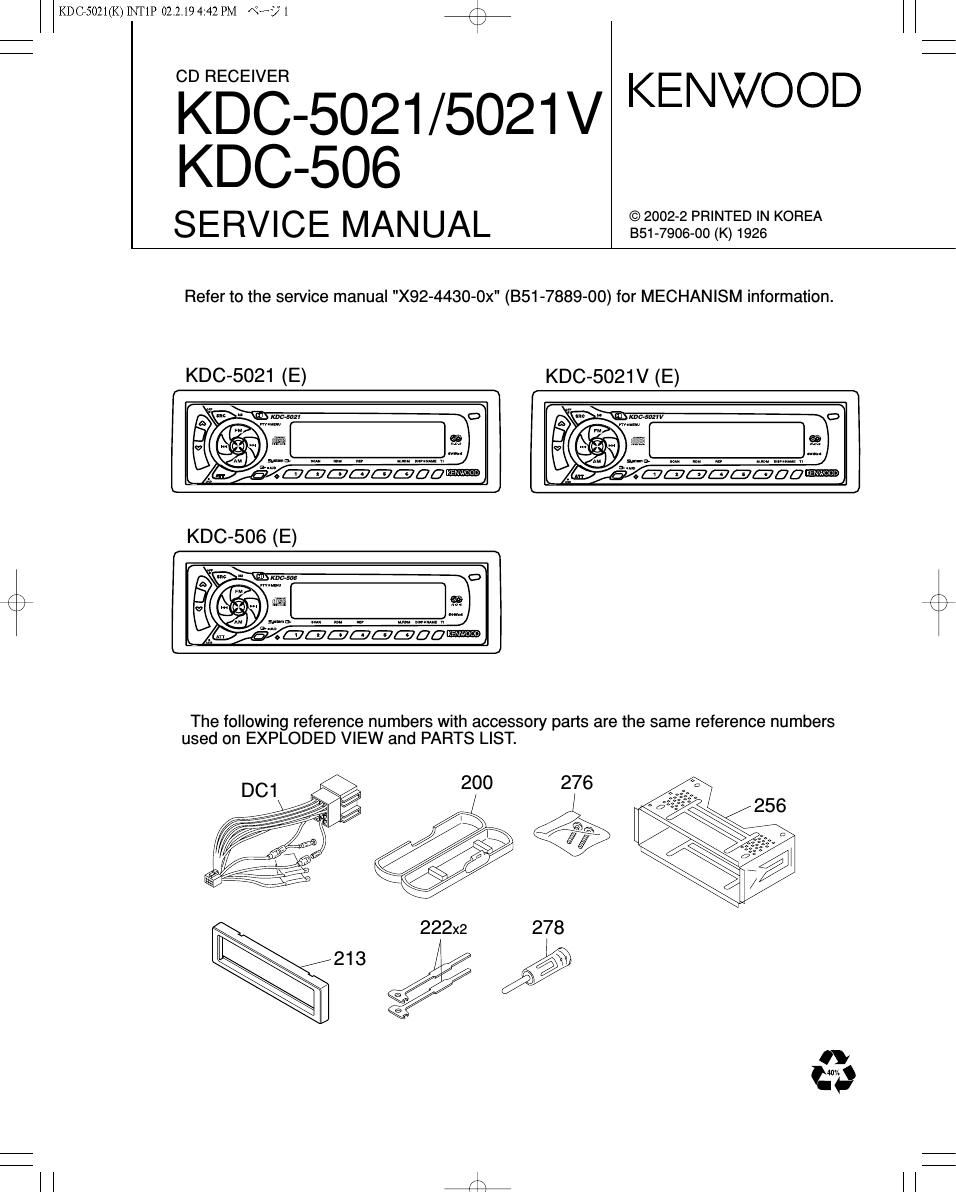

Page 1
KDC75021(K)]NT1P 02.2.19 4:42PM \°-/1 /\
\/
ORRbCE'VcEi-5021/5021v KENWOOD
KDC-506
SERVICE MANUAL 352;?3352622'l33342mm
Refer to the service manual X92-4430-0x" (851-7889-00) for MECHANISM information.
KDC-5021 (E) KDC-5021V (E)
r\
\/
The following reference numbers with accessory parts are the same reference numbers
used on EXPLODED VIEW and PARTS LIST.
Page 8
KDC75021(K)]NT1P 02.2.19 4:42PM \°-/8 /\
KDC-5021/5021V,506
TEST MODE
3. When the message "Security" is displayed, press and
hold the Track Up/Down key for 1 second to enter the
security registration mode.
4. Enter the code using the FM/AM/Track Upfl' rack
Down keys.
- FM key : Number up
- Am key : Number down
- Track Up key : Cursor right shift
- Track Down key : Cursor left shift
5. Hold down the Track Up key for at least 3 seconds
and the message, "RE-ENTER appears, so once
again enter the code according to Step 4 above.
6. Press and hold the Track Up key for 3 seconds until
"APPROVED" is displayed.
7. Exit from the test mode. (See 2. How to exit from the
test mode)
(Note) All Clear is not applicable to the security code
of this model.
