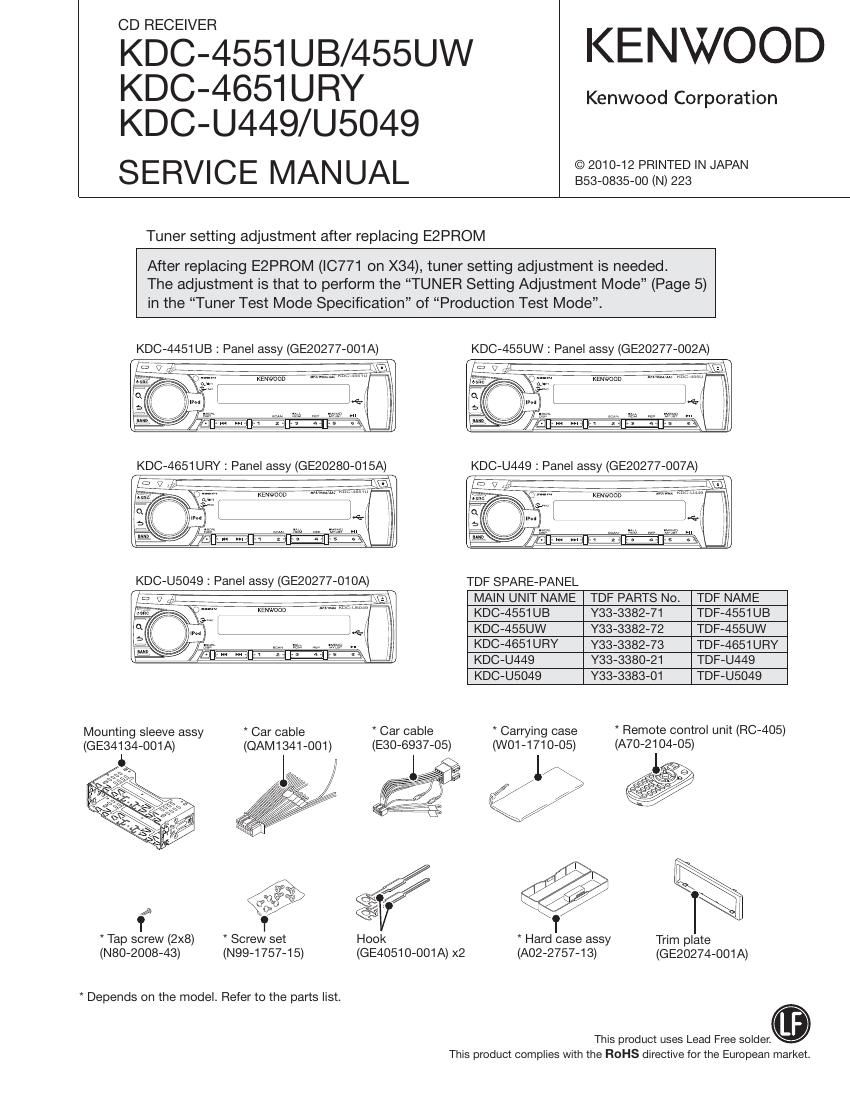

CD RECEIVER
KDC-4551UB/455UW KENWOOD
KDC'4651 U RY Kenwood Corporation
KDC-U449/U5049
S E RVI C E MAN UAL Ssilégéiomziim JAPAN
Tuner setting adjustment after replacing E2PROM
After replacing E2PROM (IC771 on X34), tuner setting adjustment is needed.
The adjustment is that to perform the TUNER Setting Adjustment Mode (Page 5)
in the Tuner Test Mode Specification of Production Test Mode.
KDC-4451UB : Panel assy (GE20277-001A) KDC-455UW : Panel assy (GE20277-002A)
KENWOOD
KDC-U5049 : Panel assy (GE20277-010A) TDF SPARE-PANEL
MAIN UNIT NAME TDF PARTS No. TDF NAME
KDC-4551UB Y33-3382-71 TDF-4551UB
KDC»455UW Y33-3382-72 TDF-455UW
KDC-4651URY Y33-3382-73 TDF-4651URY
KDC-U449 Y33-3380-21 TDF-U449
KDC-U5049 Y33-3383-01 TDF-U5049
Mounting sleeve assy * Car cable * Car cable * Carrying case * Remote control unit (RC-405)
(GE34134-001A) (QAM1341-001) (E30-6937-05) (W01-1710»05) (A70- -2104- -05)
jfife
§ ///
9//;
4} \rv
* Tap screw (2x8) * Screw set Hook * Hard case assy Trim plate
(N80»2008-43) (N99-1757-15) (GE4051 0-001 A) X2 (A02-2757-13) (G E20274-001 A)
* Depends on the model. Refer to the parts list.
This product uses Lead Free widen.
This product complies with the ROHS directive for the European market.
