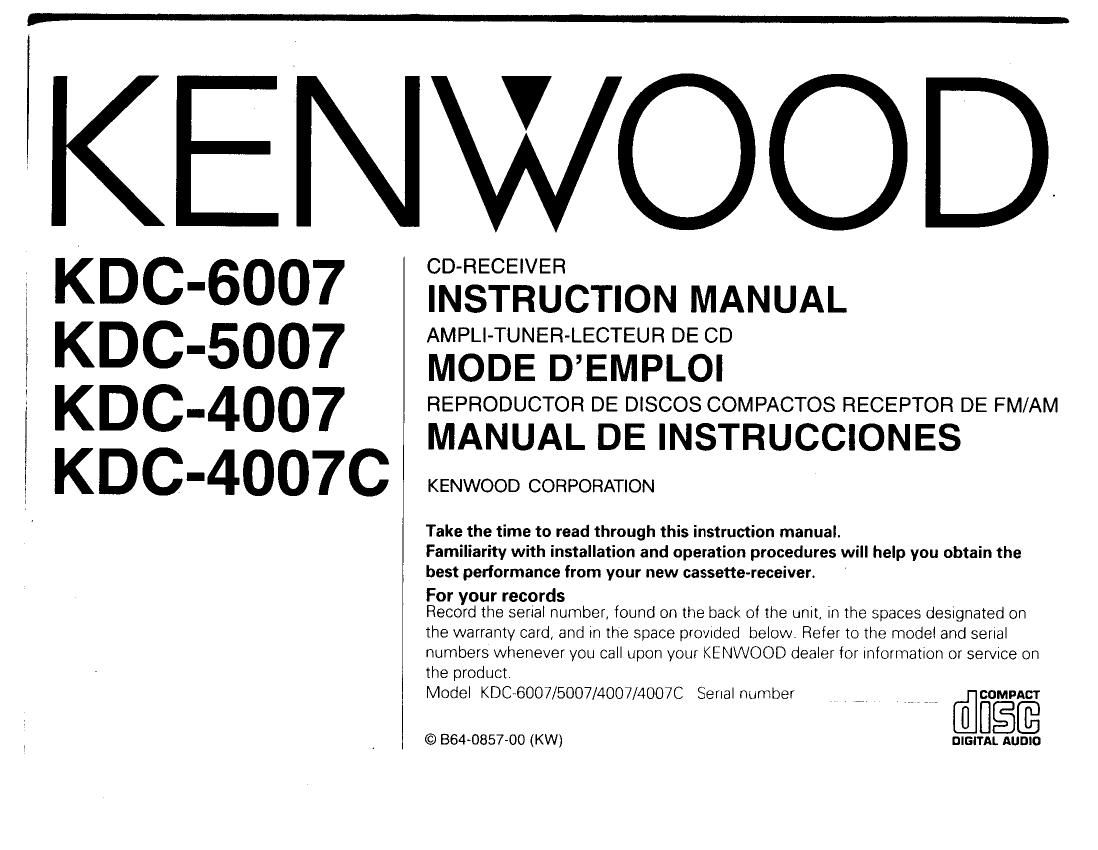

Page 1
KENWOOD
y KDC-6007
l KDC-5007
J KDC-4007
KDC-4007C
CD-RECEIVER
INSTRUCTION MANUAL
AMPLI-TUNER-LECTEUR DE CD
MODE DEMPLOI
REPRODUCTOR DE DlSCOS COMPACTOS RECEPTOR DE FM/AM
MANUAL DE INSTRUCCIONES
KENWOOD CORPORATION
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the
best performance from your new cassette-receiver.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on
the warranty card, and in the space provrded below. Refer to the model and serlal
numbers whenever you call upon your KENWOOD dealer for Information or service on
the product.
Model KDC-6007/5007/4007/4007C Senal number 77 7 [flcompmrr
USE}
© BG4~0857-00 (KW) DIGITAL AUDIO
Page 2
English
Contents
Before use
Warning .......................
Safety precautions .....
Handling Compact disc
Buttons and Display
Basic operations ............................................................................ 8
Tuner features ......... .,8
CD player features ................ ..9
Disc changer control features .. ..9
Other features ....................... .,.10
Remote ....................................................................................... 10
Basic operations
Power ............................................................................ 11
Volume... .11
Attenuator .. ...11
Loudness .......................... ...11
Basic Operations of Rem Control .......................................... 12
Tuner features
Tuning ......................................................................................... 13
Station Preset Memory.. ...14
Auto Memory Entry ............................. ..14
Clean Reception System Circuit (CRSC) ...14
Direct Access Tuning .................................................................. 14
CD player features
Playing CDs ................................................................................ 15
Switching Display for CDs ...................... .15
Fast Forwarding and Reversing Disc Play.. .,15
Track Search ........................................ ..15
Direct Track Search ...16
Track Repeat ...... .,,16
Track Scan. .16
Random Play ............................................................................... 16
Disc changer control features
Playing Discs Using 8 Disc Changer ........................................... 17
Switching Display for Discs .................. ,.17
Fast Forwarding and Reversing Disc Play. 17
Track Search17
Disc search ................................................................................. 18
Direct Track Search
Direct Disc Search,
Track /Disc Repeat.
Track Scan ........... .19
Disc Scan ..... .19
Random Play .............. 19
Magazine Random Play. 120
Presetting Disc Names ............................................................... 20
Other features
Audio Control Setting .................................................................. 21
Selectable illumination .. ............................ 21
Switching Preout .......................................... 23
Clock Display ..................... .23
Adjusting Time ......................... .23
Disabled System Indicator (DSI) .......................... 23
Theft Deterrent Faceplate .......................................................... 24
Installation
Accessories ................................................................................. 25
installation Procedure ................................................................. 25
Connecting Wires to Terminals .................................................. 26
Installation ................................................................................... 27
Troubleshooting Guide ................................................ 30
Specifications ................................................................ 33
Page 24
Other features
Theft Deterrent Faceplate
The faceplate of the unit can be detached and taken with you,
helping to deter theft.
Grooves
Removing the Faceplate:
Press the release button
The faceplate IS unlocked, allowxng you to detach it.
- The faceplate is a preCiSion piece ol eqmpment and can be
damaged by shocks or iolts For that reason, keep the faceplate
in its speCial storage case while detached.
- Do not expose the faceplate or its storage case to direct sun-
light or excessive heat or humidity. Also avord places With too
much dust or the pOSSIbility of water splashing.
Heartaching the Faceplate:
1 Align the projections on the unit with the grooves on the face-
plate.
2 Push the faceplate in until it clicks.
The faceplate is locked in place, allowing you to use the unit.
24
