Kenwood KDC 315 V Owners Manual

Extracted text from Kenwood KDC 315 V Owners Manual (Ocr-read)

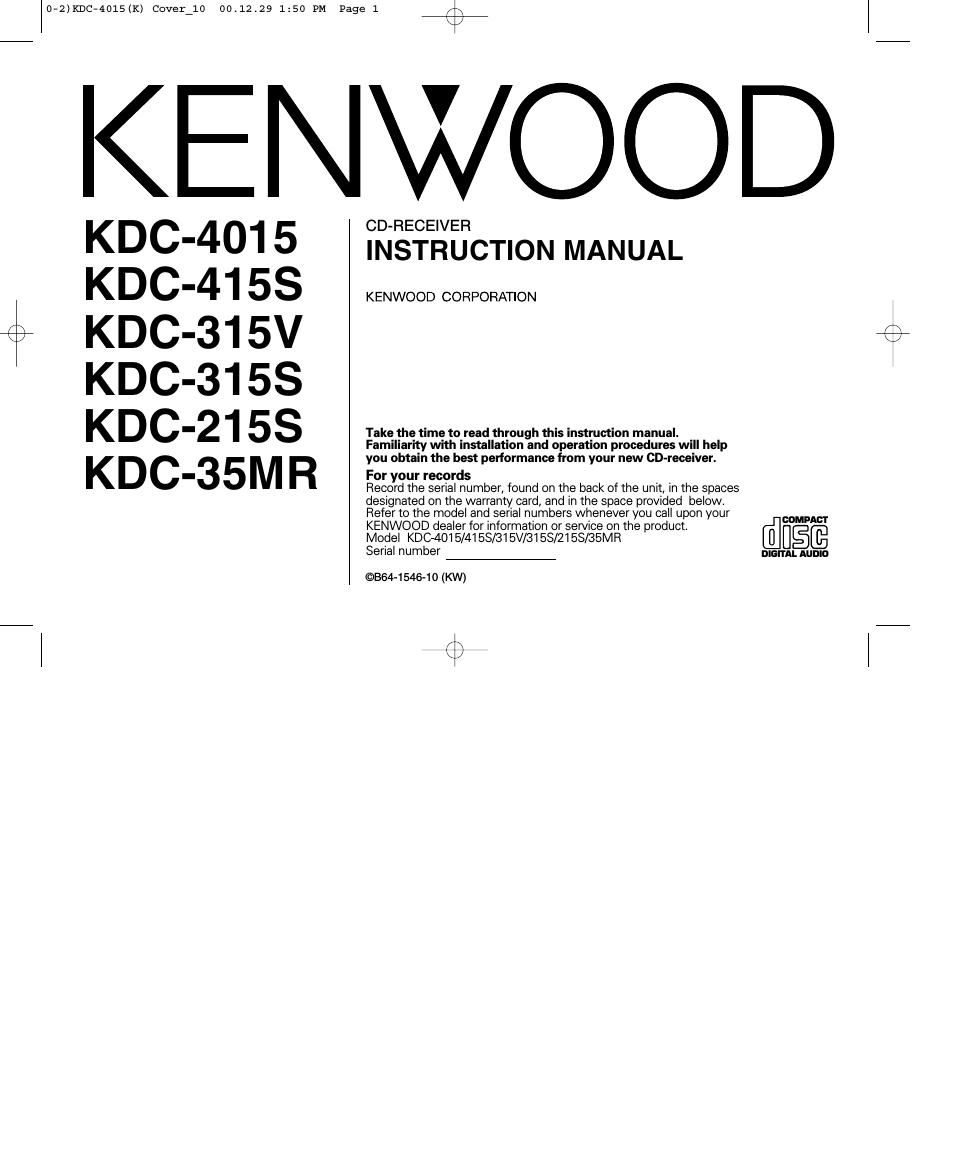

Page 1

072)KDC74015(K) Cover_10 00.12.29 1:50 PM Page 1 *
K3

KENWOOD

KDC-4015
KDC-415$
KDC-315V
KDC-3155
KDC-215$
KDC-35MR

CD-RECEIVER

INSTRUCTION MANUAL

KENWOOD CORPORATION

Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help
you obtain the best performance from your new CD-receiver.

For your records

Record the serial number, found on the back of the unit, in the spaces
desrgnated on the warranty card, and in the space provided below.
Refer to the model and serial numbers whenever you call upon your

KENWOOD dealer for information or sen/ice on the product. COMPACT
Model KDC4015/4158/315V/3158/2158/35MR H§@
Serial number DIGITAL AUDIO

©BS4-1546-10 (KW)

¢= l

Page 2

3Aj KDciaols (K) _U.Sr4_10

English

00.12.26 3:41 PM Page 2

Contents

4%

Before use
Warning .............
Safety precautions
Handling Compact discs.

General features


Switching Modes.
Loudness ..........

Audio Control Settrn
ec4/dB (Sound Coordinatel
Mobile Preset .............
Theft Deterrent Faceplate.
Clock display.
Adjusting Tim


Tuner features
Tuning .....................
Station Preset Memo
Auto Memory Entry....
Clean Reception System Circult (CRSC


CD/External disc control features
Playing CDs
Playing Other Disc mode
Fast Forwarding and Reversing Disc Play
Track Search
Disc Search
Track / Disc Repeat.
Track Scan..
Disc Scan
Random Play.
Magazine Random Pla

Basic Operations of remote ................................ 17

Installation
Accessories ..............
Installation Procedure
Connecting Wires to Terminals
Installation


Troubleshooting Guide
Specifications ..

Page 7

3AjKDC41015(K)_U.Sr4_10 00.12.26 3:41 PM Page 7 SJ;

General features
PllfilllgFF Turning on the power:
FM »| Press the SRC (source) button.
A
Turn the power on before carrying out the following procedures.
Turning off the power:
Press the PWR OFF button for at least one second.
V A", 5 AUDI « Increasing Volume:
LOUD A-ADJ AM Press the /\ button to turn up the volume.
ELK Decreasing Volume:
Press the V button to turn down the volume.
AIT' d' This function allows you to turn down the volume quickly.
In Icator
Turning Attenuator 0n/Olf:
Press the ATT button to switch the attenuator on and off.
When the attenuator is on, the ATT indicator blinks.
- - . When the attenuator is off, the volume returns to the original
GED M x L' _l l :E-EE |-;a level.
_I L . l I__|
LOUD 0
Tu ng the volume up, or turning it all the way down deactivates
the attenuator function.

MUD Indicator

Page 21

F\

BAjKDC74015lK)_U.Sr4_lO 00.12.26 3:41 PM Page 21 :3

sta I1

I Installation

Firewall or metal support


Accessory®

Bend the tabs of the
mounting sleeve With
a screwdriver or
similar utensil and

Selfrtapplng ACCESSOWQ) attach it In place.
screw Metal mounting

lcommerciall strap

y available)

Make sure that the unit is installed securely in place. If the unit is
unstable, it may malfunction (for example, the sound may skip).

I Installing in Japanese-Made Cars

1 Refer to the section Removing the hard rubber frame (F. 22)"
and then remove the hard rubber frame.

2 Align the holes in the unit (two locations on each side) with the
vehicle mounting bracket and secure the unit with the
accessory screws.

6 Egg

T

T: Toyota cars
N: Nissan cars Accessory©...for Nissan car

Accessory® ...for Toyota car

0 During installation, do not use any screws except for those
provided. The use of different screws might result in damage to
the main unit.

0 Damage may occur if a screwdriver or similar tool is used with
excessive force during the installations.
