Kenwood KDC 3024 YA Service Manual

This is the 30 pages manual for Kenwood KDC 3024 YA Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 30
Kenwood KDC 3024 YA Service Manual

Extracted text from Kenwood KDC 3024 YA Service Manual (Ocr-read)


Page 1

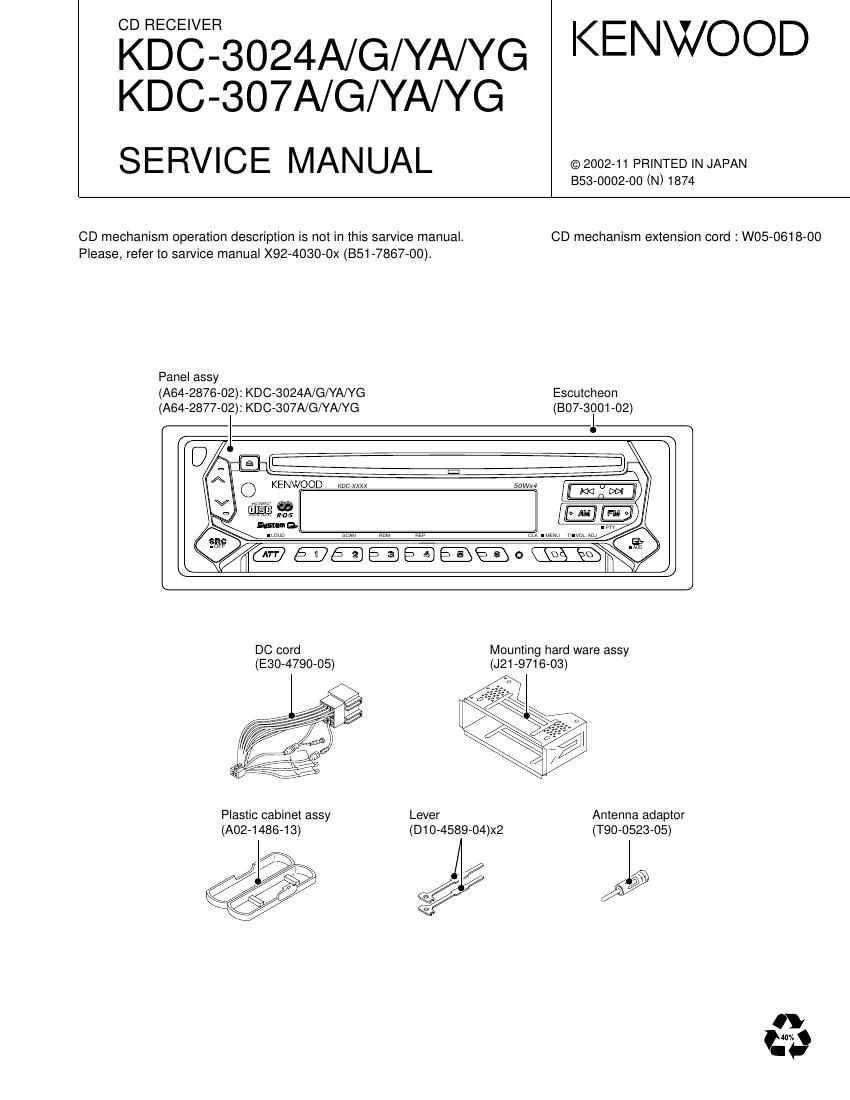

iERficgE53024A/G/YA/YG KENWOOD
KDC-307A/G/YA/YG

SERVICE MAN UAL ©2002-11 PRINTED IN JAPAN

353-0002-00 (N) 1874

CD mechanism operation description is not in this sarvice manual. CD mechanism extension cord : W05-0618-00
Please, refer to sarvice manual X92-4030-0X (851-7867-00).

Panel assy
(A64-2876-02): KDC-3024A/G/YA/YG Escutcheon
(A64-2877-02): KDC-307A/G/YA/YG (807-3001-02)

KENWOOD we xxxx

DC cord Mounting hard ware assy
(E30-4790-05) (J21-9716-03)

Plastic cabinet assy Lever Antenna adaptor

(A02-1486-13) (D1 O-4589-04)><2 (T90-0523-05)

////; y/§§\ / 2/2 / Q
