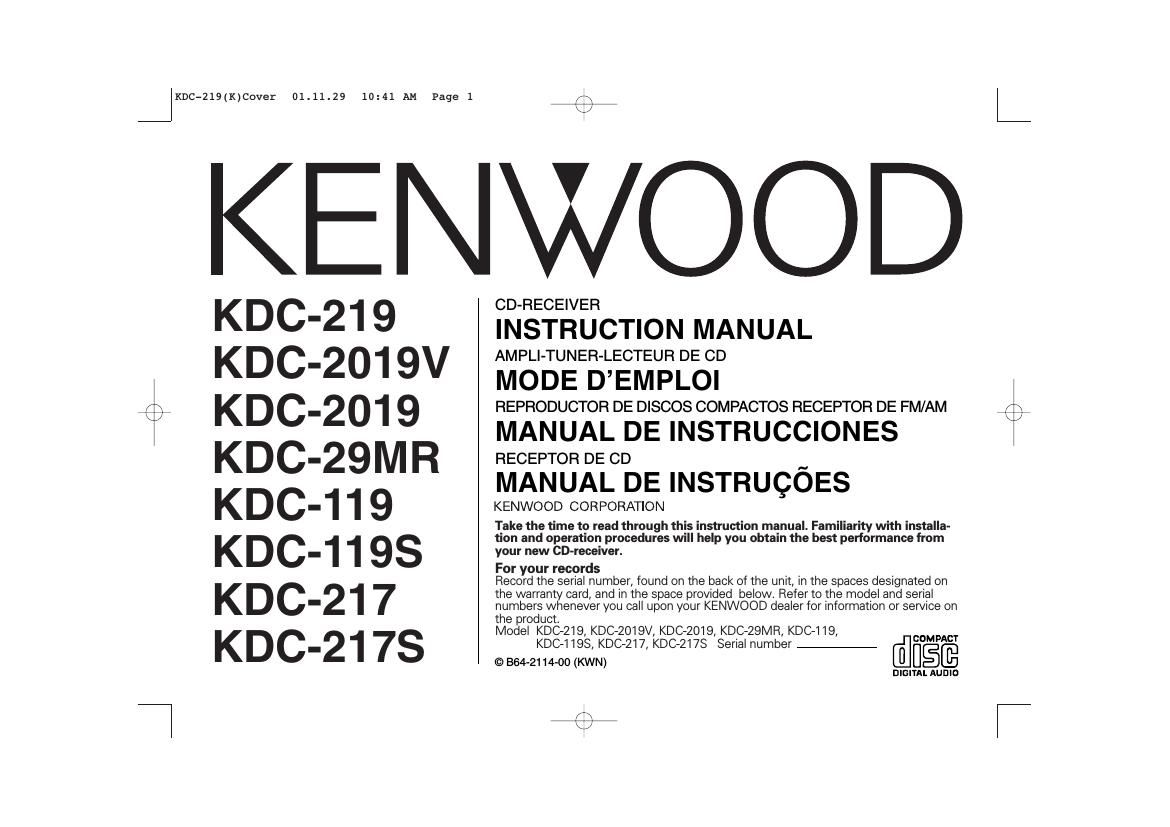

KDC-219(K)Cover 01.11.29 10:41 AM Page 1

KENWOOD

KDC-219
KDC-2019V
KDC-2019
KDC-29MR
KDC-119
KDC-119S
KDC-217
KDC-217S

CD-RECEIVER

INSTRUCTION MANUAL

AMPLI-TUNER-LECTEUR DE CD

MODE DEMPLOI %
f i

REPRODUCTOR DE DISCOS COMPACTOS RECEPTOR DE FM/AM

MANUAL DE INSTRUCCIONES

RECEPTOR DE CD

MANUAL DE INSTRUCOES

KENWOOD CORPORATION

Take the time to read through this instruction manual. Familiarity with installa-
tion and operation procedures will help you obtain the best performance from
your new CD-receiver.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on

the warranty card, and in the space provided beiow. Refer to the model and seriai

numbers whenever you call upon your KENWOOD dealer for information or service on

the product.

Model KDC7219, KDC72O19V, KDC72O19, KDCVZQMR, KDC7119, T
KDC71198, KDC7277, KDC7217S Serial number - filcwm

© 864-2114-00 (KWN) DIGIYAI. AUDIO

47L r

Page 2

KDC-219/KDC-2019V7U.S 01.11.29 10:43 AM Page 2 :E
K

English

Audio Control

Speaker Setting

Clock Display

Adjusting Clock

DSI (Disabled System Indicator)
Theft Deterrent Faceplate

Contents
Warning ....................................... 3 CD/Extemal disc control
Safety precautions ...................... 4 features """""""""""""""""" 12
About CBS ................................... 6 P'aylng CD V
Playing External DISC

General features ......................... 7 Fast Forwarding and Reversing

Power Track Search

Selecting the Source Album Search

Volume Track/Album Repeat

Attenuator Track Scan

Loudness Random Play

System 0 Magazine Random Play

Basic Operations of remote..
Loading and Replacing the battery
Basic operations
In Tuner source
In Disc source

Tuner features ........................... 10 Accessories """""""""""""""" 1 7
Tuning Mode Installation Procedure .............. 17
Tuning Connecting Wires to Terminals 18
Stalk) Preset Memory Installation ................................ 19
Auto Mam? Entry Troubleshooting Guide ............. 21
Preset Tuning _ . .

CRSC (Clean Reception System Circuit) Specifications ........................... 24
_ 2 _

xx

Page 19

KDC-219/KDC-2019V7U.S 01.11.29 10:43 AM Page 19 E;

Installation

I Installation I Installing in Japanese-Made Cars

Firewall or metal suppm 1 Refer to the section 'Removing the hard rubber frame" (page 20!
and then remove the hard rubber frame.

2 Align the holes in the unit (two locations on each side) with the
vehicle mounting bracket and secure the unit with the accessory
screws.

6 1mg"

T

Screw (M4X8)
(commercially
availablel

Bend the tabs of the
mounting sleeve

T: Toyota cars

with a screwdriver or N: Nissan cars Accessory@ for Nissan car
similar utensil and Accessory® ...for Toyota car
attach it In place. 0 During installation, do not use any screws except for those provided.
Selfrtapplrig screw 9" m°"9 map The use of different screws might result in damage to the main unit.
(commemiallv available) (commercially available) - Damage may occur if a screwdriver or similar tool is used with C {

excessive force during the installations.

Make sure that the unit is installed securely in place. if the unit is
unstable, it may malfunction (for example, the sound may skip).

I Screwing the Faceplate on the Unit

If you want to fasten the VACCSSSOWG)
faceplate to the main unit so .

that it does not fall off, E
screw in the provided screw /

(24 X 16 mm) in the hole
shown below.

Never insert the taptite screw (24 x 16 mini in any other screw hole
than the one specified. If you screw it in another hole, it will Contact
and may cause damage to the mechanical parts inside the unit.

_19_
