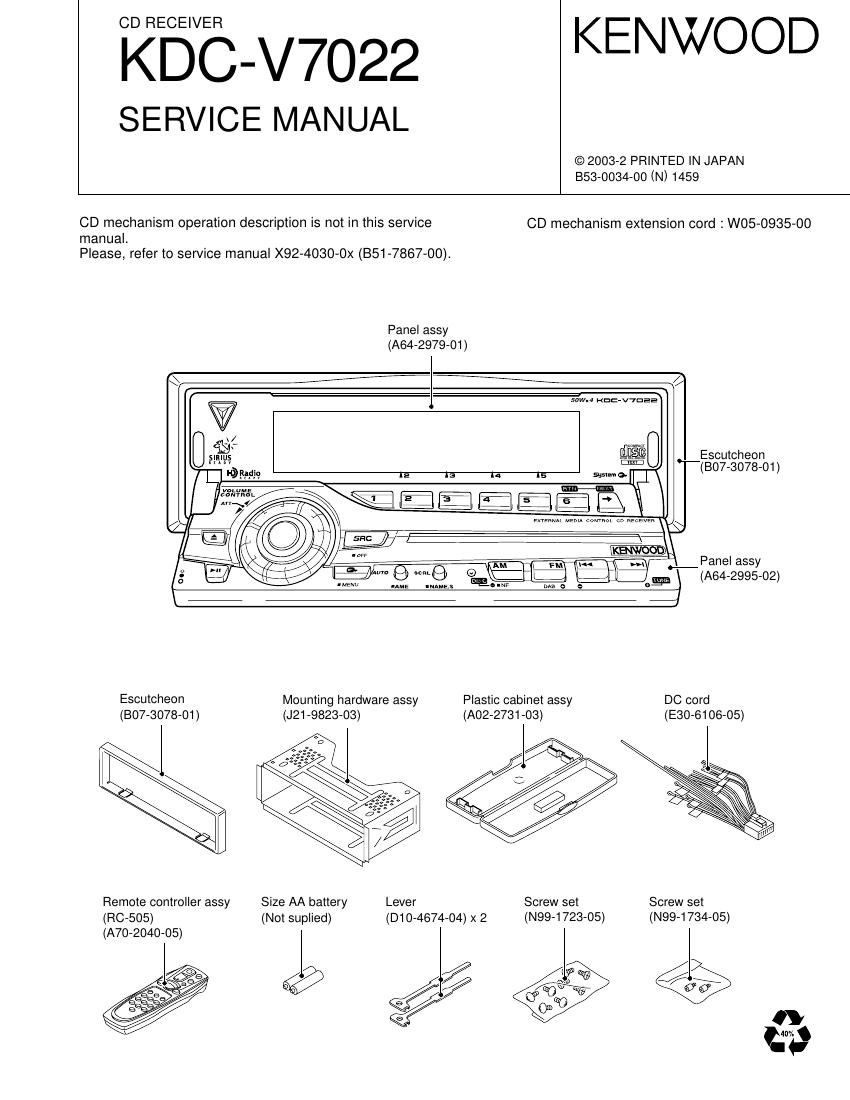

Page 1

CD RECEIVER

KDC-V7022

SERVICE MANUAL

KENWOOD

CD mechanism operation description is not in this service
manual.
Please, refer to service manual X92-4030-0x (BS1 -7867-00).

Panel assy
(A64-2979-01)

CD mechanism extension cord : W05-0935-00

50w KEG-V7DEE

Escutcheon
(BO7-3078-Ot)

Panel assy
I (A64-2995-02)

Escutcheon
(BO7-3078-01)

i I

Mounting hardware assy
(J21 -9823-03)

Remote controller assy Size AA battery Lever

(RC-505) (Not suplied)
(A70-2040-05)

(A02-2731-03)

(D10-4674-04) X 2

re/

Plastic cabinet assy DC cord
(E30-6106-05)

Screw set Screw set
(N99-1723-05)

(N99-1734-05)

/0?

Page 2

KDC-V7022
HOW TO THE PANEL MECHANISM ASSEMBLY

1. Fixed the position of operation side A
(Fixed the horizontal position when the panel opened)
CD The mounting hardware (281) of operation side is rota-
tion (A) into the stop position with close side.
C2) As figure (B) line is just above and the gear (230) at-
tached to pin.

Rotary to the 281

stop position

Fig. B

2. The slider assembly insert to bottom chassis
CD The bracket for display panel (284) is leave down, in-
sert to the chassis (702). (C)

(2) The slider assembly insert to the chassis (702) after
that shift (D) direction.

(3) The bracket for display panel (284) is raised (E) direc-
tion.

GD Keep the raising conditions, the slider assembly is shift
(F) direction.
(Note) Do not bend the knob of chassis detection switch
when the slider assembly insert.
