Kenwood KD CPS 909 Owners Manual

Page 1

I
i

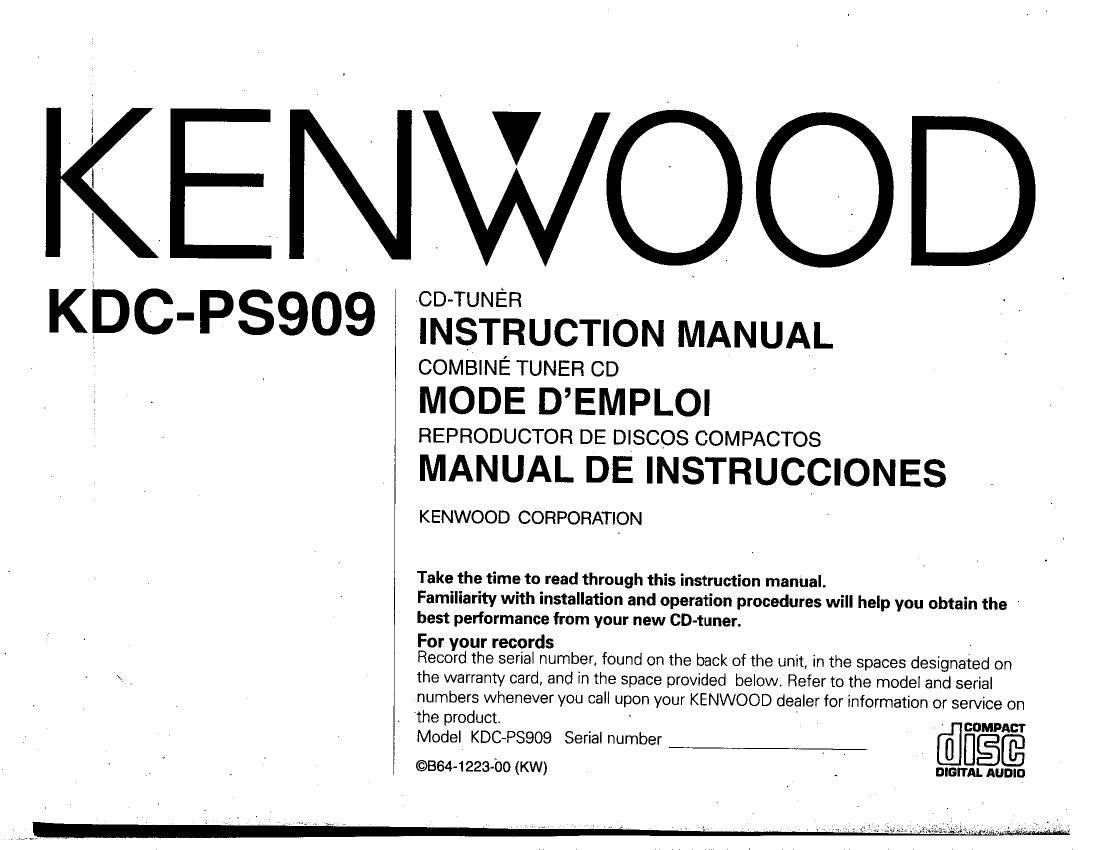

KDC- P3909

ENWOOI

CD- TUNER

INSTRUCTION MANUAL

COMBINE TUNER CD

MODE D EMPLOI

REPRODUCTOR DE DISCOS COMPACTOS

MANUAL DE INSTRUCCIONES

KENWOOD CORPORATION

Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the '
best performance from your new CD t-u.ner

For your records

Record the serial number, found on the back of the unit, in the spaces designated on
the warranty card, and In the space provided below Refer to the model and serial
numbers whenever you call upon your KENWOOD dealer for information or service on

. 'the product.

compAcT
Model KDC- P8909 Serial number ' [j]
©Be4-1223-bo (KW) . DIGITAL AunIo

Page 2

. Contents

Before use
Warning .....................
Safety precautions
Handling Compact discs

Buttons and Display
Basic operations ...............................
Tuner features.
RBDS features
Disc control features.
Other features .....
Remote .......................................................................

Basic operations «
Stealth Retraction Mechanism...
Switching Modes .................

Volume ............ ..12
Loudness .. ..12
Attenuator .....

Attenuator Gain selection.
Menu System ..............................

Tuner features
Tuning ..............................
Station Preset Memory..
Auto Memory Entry ...........

Clean Reception System Crew .15
Switching Display for Tuner ..... .15
Station Name Preset (SNPS) .16
Direct Access Tuning ............... .17
Station Name Preset Play (SNPP) ..17
REDS features
RBDS (Radio Broadcast Data System) ...................................... 18
Alarm .............................................. .18
Traffic Information Function .. .18
Program Type (PTY) Function .18
Radio Text ................... .20
Radio Text Scroll ..................................... 20
Disc control features
Playing CD5 ....................................................... 21
Playing other Disc mode .............. ........................ 21

Fast Forwarding and Reversing Disc Play...
Track Search. ...........
Disc Search
Track/ Disc Repea .
Track Scan .....
Disc Scan
Random Play
Magazine Random Play

Switching Display for Discs
Text Scroll ......................
Presetting Disc Names ..
Direct Track Search ..
Direct Disc Search... ,,,,,,,,,
Disc Name Preset Play (DNP

Other features
Audio Control Setting ............
Table of Audio Control Setting.
Balanced Output
Dimmer ....................
Selectable Illumination
Touch Sensor Tone ......
Switching Clock Display.
Switching Graphic Display.
Adjusting Time .........
Security Code ............

Basic operations of remote .....................................

Installation 7
Accessories ..................
installation Procedure...
Connecting Wires to Terminals.
Installation (non-Japanese cars)
Removing the Unit .................
Installation (Japanesecars).

Troubleshooting guide ............................. ..,40
Specifications ...................................................................... 43

Page 15

Clean Reception System Circuit (CRSC)

Temporarily have reception switched from stereo to mono to
reduce multi- -path noise when listening to the FM station.
The factory default for this function' Is ON.

Turning CHSC On/Off:

1 Press the MENU button for at least one second.
"MENU" is displayed and the menu mode is turned on.

2 Keep pressing the >>I button until the Clean Reception
System Circuit function appears in the display
Press the I44 button to search In the other direction.
The function setting is indicated by' 'CRSC ON" or "CRSC OFF"
in the display, indicating that the CRSC Is on or off
respectively.

3 Switching settings
Press either the AM or FM button.
The display and setting will change.

4 Press the MENU button to end the menu mode.

Strong electrical fields (such as from power lines) may cause
unstable sound quality when CRSC Is turned on In such a
situation, turn it off.

Switching Display for Tuner
You can change the display used when listening to the radio.

Changing the Display.

Each time you press the DISP button, the display changes as
follows.

j

Station frequency
V

Program Service name (during RBDS station reception) /
SNPS name (only when being preset)
V

Radio text (only during RBDS station reception)
V

Clock
_l

- When receiving an RBDS station to which a name has been
preset with Station Name Preset, switching to the program
service name/SNPS name display will result in the program
service name being displayed with priority.

- Only when the Switching Clock display function (P. 30) Is on, the
clock Is displayed

- The 0 indicator lights while the clock Is displayed.

_.15_
