Kenwood KD CMP 8017 Owners Manual

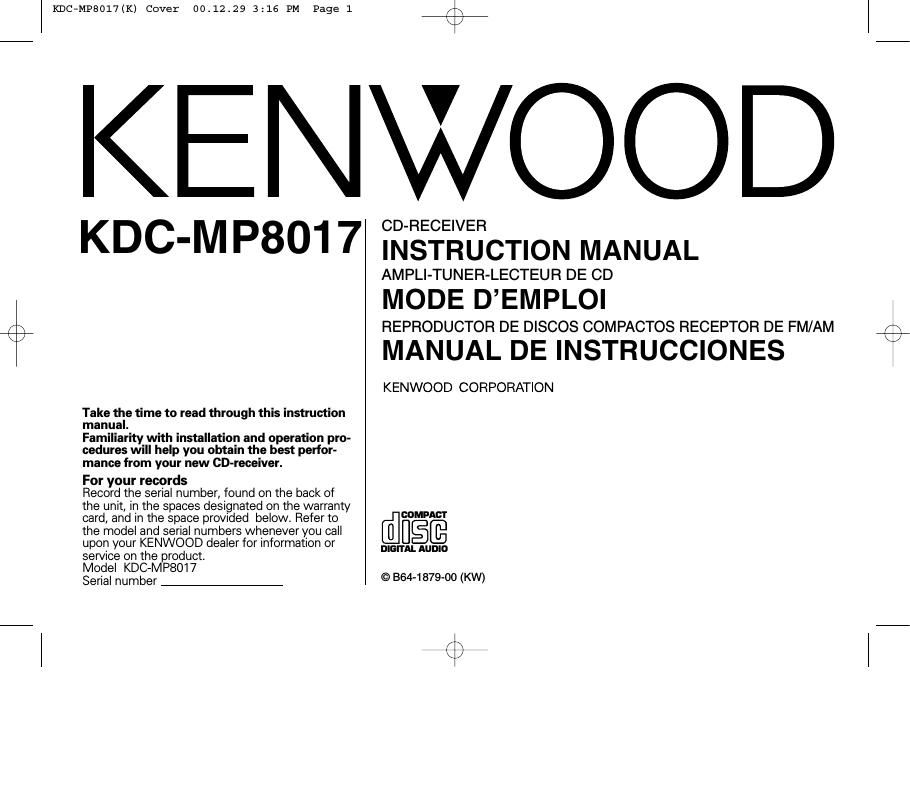

Page 1

KDCeMPSOl'iiK) Cover 00.12.29 3:16 PM Page 1 *
K3

KENWOOD

KDC'M P801 7 flEGRSE'l'Elg/SCTION MANUAL

AMPLI-TUNER-LECTEUR DE CD

MODE DEMPLOI

REPRODUCTOR DE DISCOS COMPACTOS RECEPTOR DE FM/AM E3

MANUAL DE INSTRUCCIONES

KENWOOD CORPORATION

Take the time to read through this instruction
manual.

Familiarity with installation and operation pro-
cedures will help you obtain the best perfor-
mance from your new CD-receiver.

For your records

Record the serial number, found on the back of
the unit, in the spaces designated on the warranty
card, and in the space provided below. Refer to COMM
the model and serial numbers whenever you call
upon your KENWOOD dealer for information or
service on the product.

Model KDC7MP8017

Serial number - © 364-1879-00 (KW)

(:2

DIGITAL AUDIO

Page 2

KDCFMP8017_U.S

English

00.12.26 0:59 PM Page 2

Contents

4%

Safety precautions
Warning .............
Safety precautions
Handling Compact discs
Notes on playing MP3 file ..

General features
Power ................
Switching Modes.
Volume
Attenuato
Loudness
System 0...
Audio Control Setting.
Speaker Setting.
Clock display.
Theft Deterren

Tuner features
Tuning ......................
Station Preset Memor
Auto Memory Entry
Station Name Preset (SNPSl
Switching Display for Tuner.

CD/External disc control features
Playing CDs...
Playing Other Disc mode
Switching Display for Dis
Fast Forwarding and Reversing
Track Search

Disc Search 20
Track / Disc Repeat. 20
Track Scan.. 21
Random Play. 21

Magazine Random Pla
Text / Title Scroll
Presetting Disc

MP3 player features
Playing MP3 File
File Search ..
Folder Search.
Fast Forwarding and Reversing MP3 Play
Folder Select ......
File / Folder Repea
Random Play ......
Switching Display for MP3
Name Scroll for MP3 ......

Menu settings
Menu System
Security Code.
Touch Sensor Tone
Manual fime Adjustment
Selectable lllumination....
Switching Graphic Display.
Contrast Adjustment
Dimmer .................
Clean Reception System Crrcult (CRSC
Reading the MP3 |D3 tag ........
Switching the MP3 title information display
Text Scroll .........

Installation
Accessories ..............
Installation Procedure .
Connecting Wires to Termina s

Installation ..........
Troubleshooting Guide ........................................ 37
Specifications ..................................................... 41

Page 31

KDCiMP8017_U.S 00.12.26 0:59 PM Page 31

%

Clean Recep 'on System C' (CRSC)

Temporarily have reception switched from stereo to mono to
reduce multi-path noise when listening to the FM station.

Display and setting:
"CRSC ON" : The CRSC is on. (Default setting)
"CRSC OFF" : The CRSC is off.

Strong electrical fields (such as from power iinesl may cause

unstable sound quaiity when CRSC is turned on. In such a
situation, turn it off.

Reading the MP3 lD3 tag

If you dont turn the MP3 ID Read ON, the setup items will not
be displayed.

This function permits the CD text, MD title and lD3 tag(Song
title, Artist, Album) to be scrolled and the entire text to be

displayed. Switching between manual scrolling and automatic
scrolling is permitted.

Display and setting:

"Scroll Auto : Automatic scrolling (Default setting!
"Scroll MANU" : Manual scrolling

lD3 tag information in the MP3 file is configured for use.

Display and setting:
"lD3 Read ON' : |D3 tag is read.
"lD3 Read OFF' : |D3 tag is not read. (Default setting)

f you switch this setting during the play of MP3, the track is
replayed from the beginning.

- If you turn the |D3 tag read ON, beginning of the play is
delayed for reading process of each tag for the tune.

Switching the MP3 title information display

You can switch what you want to display for an ongoing tune.
Display and setting:
"lD3 DISP A" : Filename

"lD3 DISP B : |D3 tag song title and its artist name (Default
setting)

"lD3 DISP C : |D3 tag album name and its artist name
