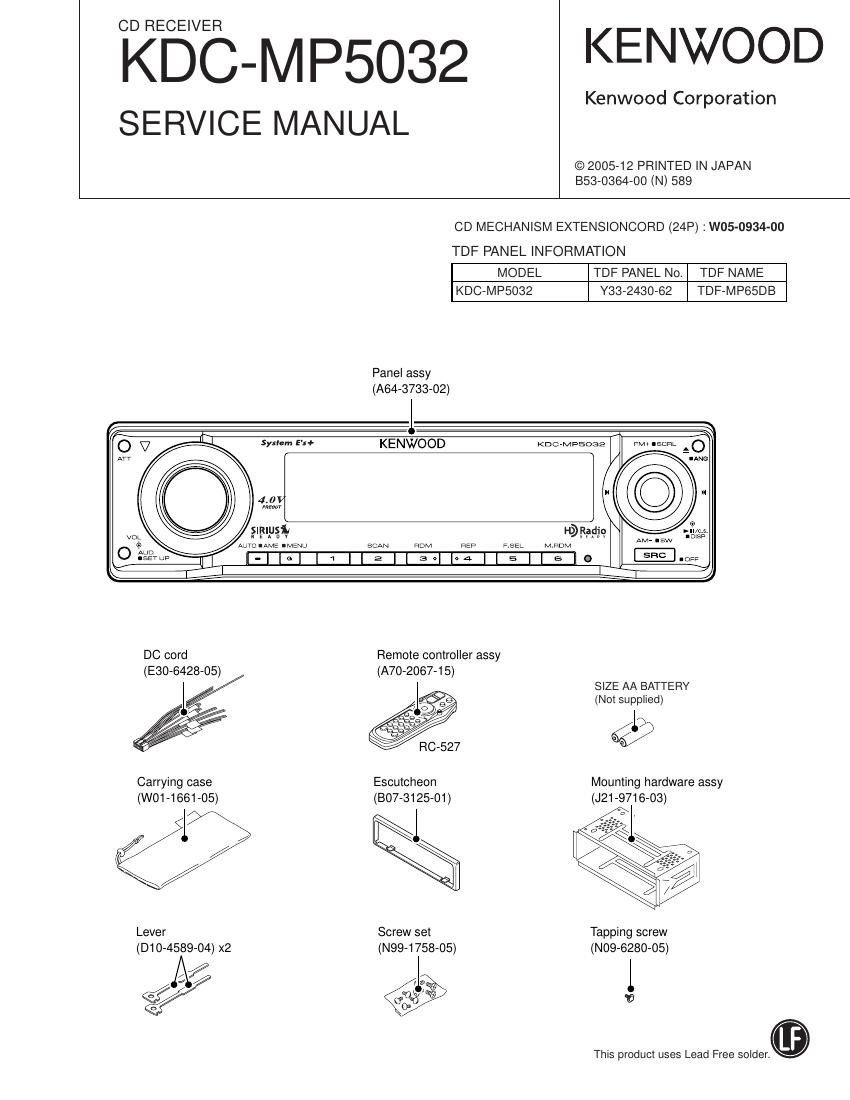

KDC-M P5032

10

TEST MODE

0 How to enter the test mode

In order to enter the test mode, reset the unit while simulta-
neously pressing down [1] and [3] keys.

(While is being displayed, power can be ON for 30 min-
utes.)

0 How to clear the test mode

The test mode is cleared in case of any of the following events:
resetting, momentary power down, Acc OFF, Power OFF and
removal of the panel.

0 Initial conditions of the test mode

- Source is STANDBY.

- Displays lights are all turned on.

- The volume is at -10dB (The display is 30).

- Loudness (LOUD) is OFF.

- CRSC is OFF, regardless of whether there are switching
functions or not.

- SYSTEM Q is NATURAL (=FLAT).

- BEEP will sound anytime with a less than 1 second push.

0 Special display when set to TUNER

When in TUNER mode, if any of the following displays appear,

there is an abnormality with the front end.

- TNE2P_NG : Front»end E2PROM values are still default
(not determined).

- TNCONfiNG : In this condition, the communication with
the front-end is not possible.

0 Forced switching of K3|

In TUNER FM mode, each time [6] key is pressed, the func-
tions move in the following cycle :

AUTO -> forced WIDE a forced MIDDLE -> force NARROW
-> AUTO

The initial condition is AUTO and the displays below will ap-
peat

- AUTO : FM1_98.1A

- Forced MIDDLE : FM1798.1M

- Forced WIDE : FM1798.1W

- Forced NARROW : FM1fi98.1N

0 CD receiver test mode specifications

- Display mode default setting shall be P-TIME

- Jumps to the next tracks by pressing the [>>i] key.
No.9->No.15->No.10->No.11->No.12->No.13->
No.22 -> No. 14 -> No.9 (Recursive)
It must be noted, however, that when paying MP3 /WMA/

AAC disk, which contain 8 files or less, the first track and
the following tracks are played in order.

- When [I44] key is pressed, it goes down by 1 track.

- When playing an MP3 / WMA / AAC disc, display the file
format before starting to play each file.

(MP3, WMA, AAC")

- When a CD is used as a source, by pressing [1] key for less
than 1 second, a jump to the Track No. 28 is made.

- When a CD is used as a source, by pressing [2] key for less
than 1 second, ajump to the Track No. 14 is made.

- When a CD is used as a source, by pressing [3] key for less
than 1 second, a display of CD mechanism model name
and its version is made. When the pressing of [3] key for
less than 1 second is made forthe second time, the normal
display is resumed. (Time code display)

6680:0123

\-/
Model name

%/
Version

~ When a CD is used as a source, by pressing [6] key for less
than 1 second, ajump to the Track No. 15 is made. At the
same time, the volume value is set to 27 (4V PRE).

0 Audio adjust mode

Model with no DSP

- By pressing [AUD] key for less than 1 second, the audio
adjustment mode can be entered.

- Using the remote controller [*1 key and [AUD] key, the au-
dio adjustment mode can be entered.

' Adjustment items of both the AUDIO FUNCTION MODE
and SETUP MODE are included.

- By pressing [AUD] or [FM] key briefly, switch the item to be
adjusted in the following order. (only in forward rotation)
The initial item will be Fader, which is followed by : Balance
a Bass Level -> Middle Level a Treble Level -> HPF Front
4 HPF Rear -> LPF Sub Woofer (After this, it will be arbi-
trary)

- With the remote controller, continuous forwarding is pro-
hibited.

- Using the VOL knob and [1441/ [>>|] key, the Fader can be
adjusted in 3 steps : R15 <-> 0 <-> F15 (The initial value is 0)

- Using the VOL knob and ['44] / [>>|] key, the Balance can
be adjusted in 3 steps : L15 <-> O <-> R15 (The initial value is
0)

- Using the VOL knob and II<<] / [>H] key, the Bass / Middle
/Treble Level can be adjusted in 3 steps :-8 <-> 0 <-> +8
