Kenwood KD 750 Owners Manual

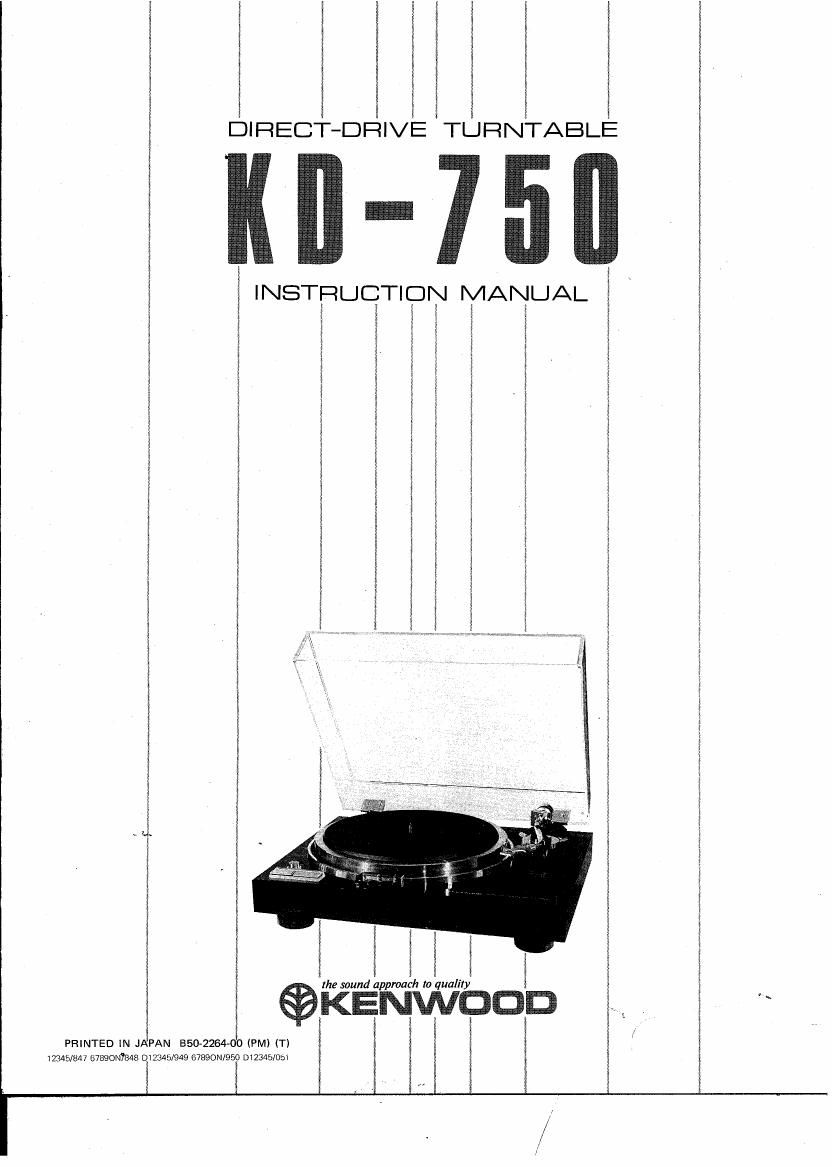

Page 1

g I
DIRECT-DRIVE TURNTABLE

IIlI-75II

INSTRUCTION MANUAL

the sound approach to quality I
© KEN WOOD

I,

PRINTED IN JAPAN BSD-2264410 (PM) (T)
12345/847 67890N7848 012345/949 mason/950 mzsab/om

Page 2

INTRODUCTION

Thank you for purchasing our turntable. Be
cause we take great pride in the long tradition of
quality components the name KENWOOD repre-
sents, your choice of ou'r'product places you in a
distinguished family of connoisseurs of superb high-
fidelity sound reproduction.

The purpose of this manual is to acquaint you
with the operating features of your new turntable.
You will notice that in every detail of planning,
engineering, styling, operating convenience, and
adaptability, we have sought to anticipate your
needs and desires.

We suggest that you read this manual care-
fully. Knowing how to set up your turntable, to
the best advantage, will enhance your listening
pleasure right from the start. You will also become
aware of the ease with which you can adjust your
turntable to meet your special requirements.

SERIAL NUMBER

Record your SERIAL NUMBER on the spaces
designated on the warranty card. You will find the
serial number on the back of the unit.

AFTER UNPACKING

After unpacking, we recommend you inspect
and examine the unit for any possible shipping
damage. If your unit is damaged or fails to operate,
notify your dealer immediately. If your unit was
shipped to you directly, notify the shipping com-
pany without delay. Only the consignee (the per»
son or company receiving the unit) can file a claim
against the carrier for shipping damage.

We recommend you retain the original carton
and packing materials to prevent any damage should
you transport or ship your unit in the future.

WARNING:

TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISc
TURE.

NOTES

CONCERNING LINE VOLTAGE

0 Units shipped to the countries listed in the
table below are designed to be operated with the
AC line voltages that are shown, which are standard
in those countries.

Destination AC Voltage '
U.S.A. 120V
CANADA 120V ~
U.K. \ 240V
AUSTRALIA 240V

0 These units are therefore not equipped with
an AC Voltage Selector. The owners of such units
should disregard all.reference to these items in this
Instruction Manual.

AC VOLTAGE SELECTOR

0, Units shipped to countries not listed in the
above table are equipped with an AC Voltage Selec-
tor on the back of the unit that is preset at the
factory to the voltage generally available in the
destination area. Before operating this turntable,
make sure that the position of the AC Voltage
Selector matches your line voltage.

This setting is correct This setting is correct
for 220 V AC power for 120 V AC power
source. source.

@Lfiét)
©

Stopper plats

Set screw

0 If the setting of the AC Voltage Selector
Switch on your unit is not set correctly to your
line voltage, it must be reset.

First remove the AC plug and reset switch
to your line voltage as follows:
1. Remove the set screw and stopper plate.
2. Switch the lever to opposite side.
3. Lock the lever by attaching stopper plate with
the set screw.

0 Our warranty does not cover damage caused
by excessive line voltage due to improper setting
of the AC Voltage Selector Switch.
