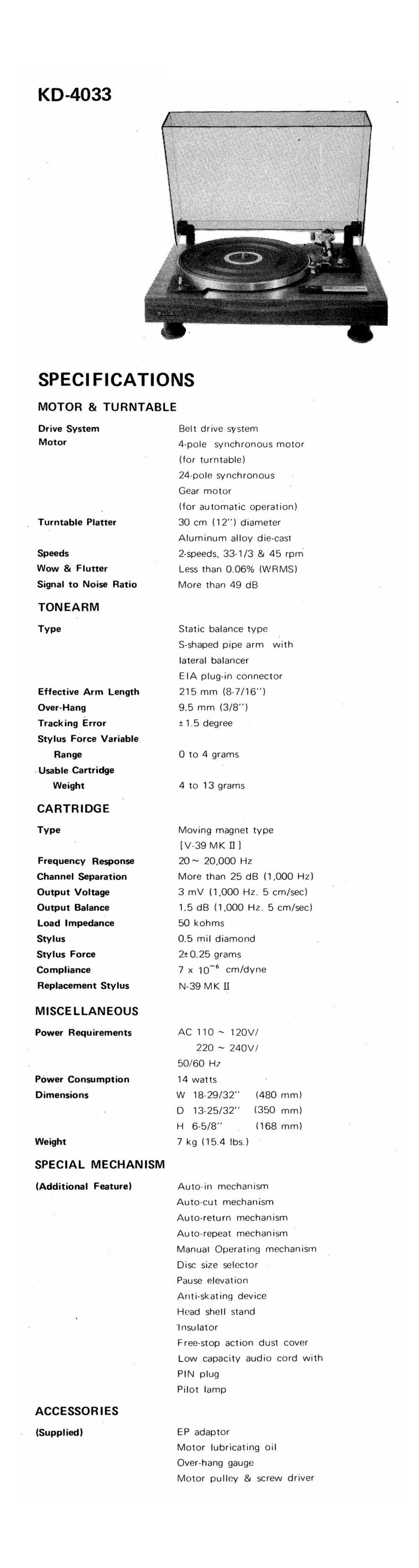

Page 1
KD-4033
SPECIFICATIONS
MOTOR & TURNTABLE
Drive System
Motor
Turntable Platter
Speeds
Wow 8: Flutter
Signal to Noise Ratio
TON EARM
Type
Effective Arm Length
Over-Hang
Tracking Error
Stylus Force Variable
Range
. Usable Cartridge
Weight
CARTRIDGE
Type
Frequency Response
Channel Separation
Output Voltage
Output Balance
Load Impedance
Stylus
Stylus Force
Compliance
Replacement Stylus
MISCELLANEOUS
Power Requirements
Power Consumption
Dimensions
Weight
SPECIAL MECHANISM
(Additional Feature)
ACCESSORIES
(Supplied)
Belt drive system
4-pole synchronous motor
(for turntable)
24-pole synchronous
Gear motor
(for automatic operation)
30 cm (12) diameter
Aluminum alloy die-cast
2-speeds, 33-1/3 81 45 rpm
Less than 0.06% (WRMS)
More than 49 dB
Static balance type
S-shaped pipe arm with
lateral balancer
EIA plug-in connector
215 mm (8-7/16")
9.5 mm (3/8")
11.5 degree
0 to 4 grams
4 to 13 grams
Moving magnet type
[V39MKH]
20~ 20,000 Hz
More than 25 dB (1.000 H2)
3 mV (1,000 Hz. 5 cm/sec)
1.5 dB (1.000 H2. 5 cm/sec)
50 kohms
0.5 mil diamond
2: 0.25 grams
7 x 10-6 cm/dyne
N-39 MK 11
AC 110 ~ 120V/
220 ~ 240V/
50/60 Hz
14 watts
W 18-29/32"
D 13-25/32"
H 6-5/8"
7 kg (15.4 lbs.)
(480 mm)
(350 mm)
(168 mm)
Auto-in mechanism
Auto-cut mechanism
Auto-return mechanism
Auto-repeat mechanism
Manual Operating mechanism
Disc size selector
Pause elevation
Anti-skating device
Head shell stand
insulator
Free-stop action dust cover
Low capacity audio cord with
PIN plug
Pilot lamp
EP adaptor
Motor lubricating oil
Over-hang gauge
Motor pulley & screw driver
