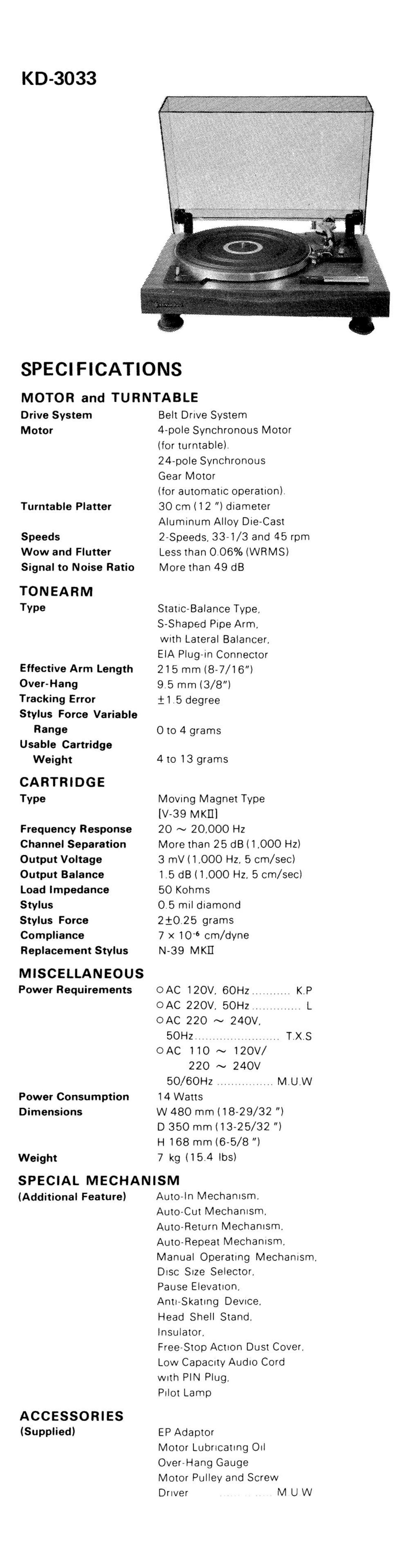

Page 1
KD-3033
SPECIFICATIONS
MOTOR and TURNTABLE
Drive System
Motor
Turntable Platter
Speeds
Wow and Flutter
Signal to Noise Ratio
TONEARM
Type
Effective Arm Length
Over-Hang
Tracking Error
Stylus Force Variable
Range
Usable Cartridge
Weight
CARTRIDGE
Type
Frequency Response
Channel Separation
Output Voltage
Output Balance
Load Impedance
Stylus
Stylus Force
Compliance
Replacement Stylus
MISCELLANEOUS
Power Requirements
Power Consumption
Dimensions
Weight
Belt Drive System
4-pole Synchronous MOtor
(for turntable).
24-pole Synchronous
Gear Motor
(for automatic operation).
30 cm (12 ") diameter
Aluminum Alloy Die-Cast
2-Speeds, 33-1/3 and 45 rpm
Less than 0.06% (WRMS)
More than 49 dB
Static-Balance Type.
S-Shaped Pipe Arm,
with Lateral Balancer.
EIA Plug-in Connector
215 mm (8-7/16)
9.5 mm (3/8)
351.5 degree
Oto 4 grams
4 to 13 grams
Moving Magnet Type
[v-39 MKH]
20 ~ 20,000 Hz
More than 25 dB (1.000 H2)
3 mV (1.000 H2. 5 cm/sec)
1.5 dB (1.000 H2. 5 cm/secl
50 Kohms
0.5 mil diamond
2i0.25 grams
7 x 106 cm/dyne
N-39 MKH
OAC 120V. 60Hz ........... KP
OAC 220V. 50Hz .............. L
OAC 220 ~ 240V.
50Hz ........................ T.X.S
OAC 110 ~120V/
220 ~ 240V
50/60Hz ................ M.U.W
14Watts
W 480 mm (18-29/32 )
D 350 mm (13-25/32 ")
H 168 mm (6-5/8 ")
7 kg (15.4 lbs)
SPECIAL MECHANISM
(Additional Feature)
ACCESSORIES
(Supplied)
Auto-1n Mechanism.
Auto-Cut Mechanism,
Auto-Return Mechanism,
Auto-Repeat Mechanism.
Manual Operating Mechanism.
DISC Size Selector.
Pause Elevation,
Anti-Skating Dewce.
Head Shell Stand.
insulator.
Free-Stop ACIion Dust Cover.
Low Capacnty Audio Cord
With PIN Plug,
Pilot Lamp
EP Adaptor
Motor Lubricating Oil
Over-Hang Gauge
Motor Pulley and Screw
Driver M U W
