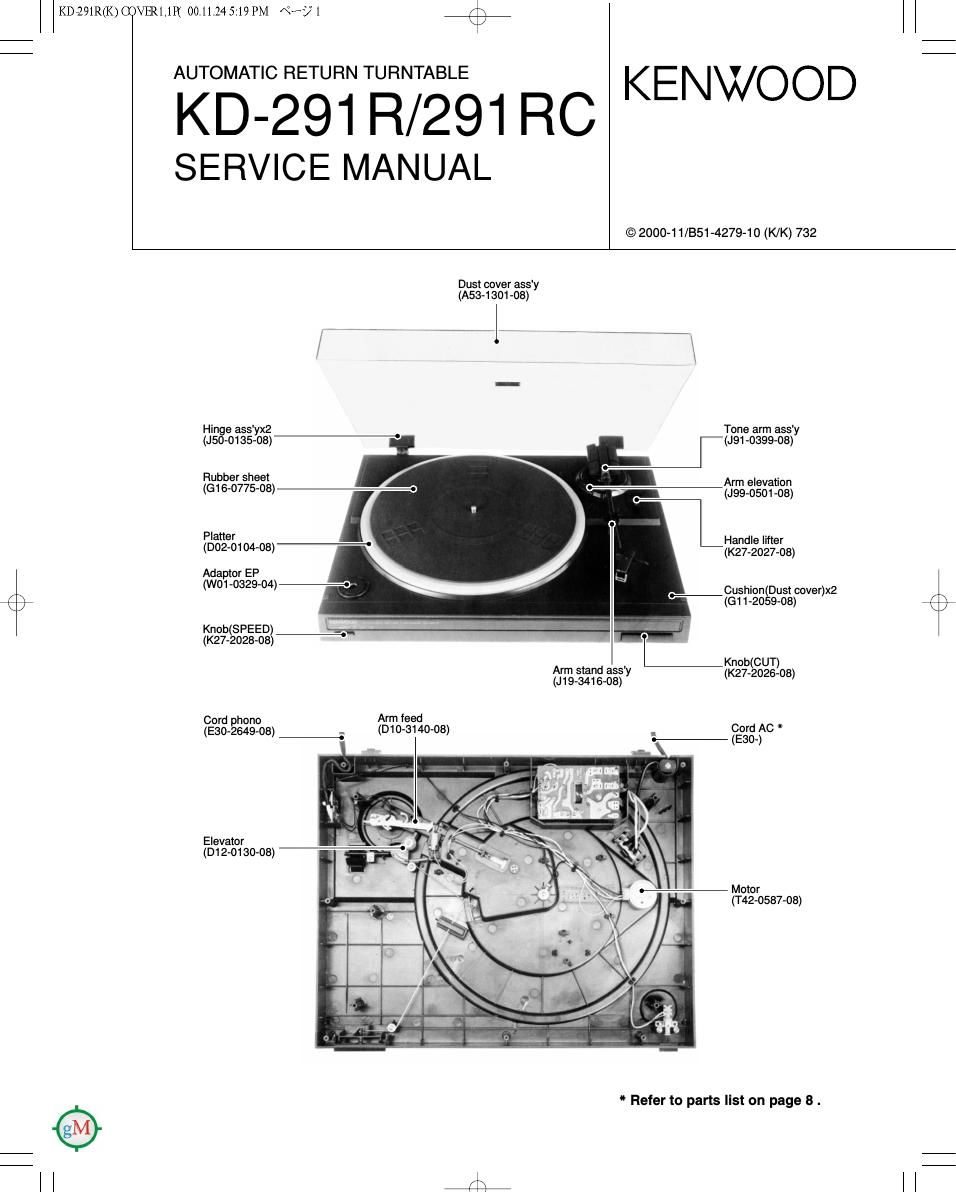

Kenwood KD 291 RC Service Manual
This is the 10 pages manual for Kenwood KD 291 RC Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KD 291 RC Service Manual (Ocr-read)
Page 1
KD-291R/291RC 2 MECHANISM DESCRIPTION Operation 1. Motor ON When the tonearm is moved down on the surface of the record, the feed arm ~moves in the direction of an arrow so that SW2 turns ON to start the motor. 2. Tonearm Return When the tonearm arrives at the end of the record, an operation as shown below is performed. Thus, the gear of the center shaft is engaged with the ring gear to start counterclockwise rotation. By the ring gear ass'y alone, the tonearm actuator moves in the direction of arrows to return the tonearm.
Page 2
KD-291R/291RC 3 MECHANISM DESCRIPTION 3. Cueing a. For manual return, the lifter and the elevator work. b. For auto return, the tonearm actuator and the elevator work.
