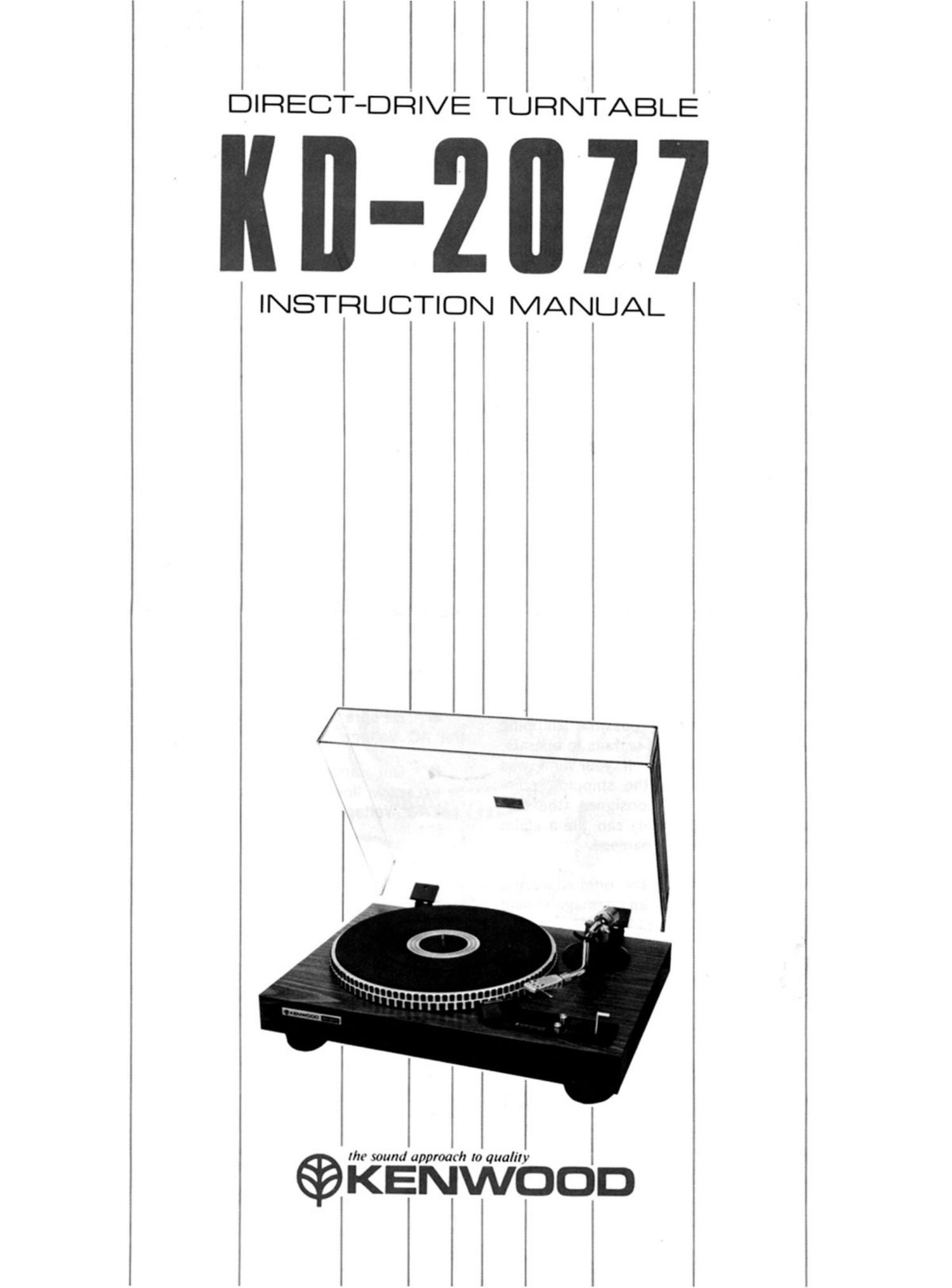

Kenwood KD 2077 Owners Manual

Page 2

INTRODUCTION

Thank you for purchasing our turntable. Be-
cause we take great pride in the long tradition of
quality components the name KENWOOD represents,
your choice of our product places you in a
distinguished family of connoisseurs of superb
high-fidelity sound reproduction.

The purpose of this manual is to acquaint you
with the operating features of your new turntable.
You will notice that in every detail of planning.
engineering. styling, operating convenience, and
adaptability, we have sought to anticipate your needs
and desires.

We suggest that you read this manual care-
fully. Knowing how to set up your turntable, to
the best advantage, will enhance your listening
pleasure right from the start. You will also be-
come aware of the ease with which you can adjust
your turntable to meet your special requirements.

SERIAL NUMBER

Record your SERIAL NUMBER on the spaces
designated on the warranty card. You will find the
serial number on the back of the unit.

AFTER UNPACKING

After unpacking, we recommend you inspect
and examine the unit for any possible shipping
damage. If your unit is damaged or fails to operate,
notify your dealer immediately. If your unit was
shipped to you directly, notify the shipping com-
pany without delay. Only the consignee (the per-
son or company receiving the unit) can file a claim
against the carrier for shipping damage.

We recommend you retain the original carton
and packing materials to prevent any damage should
you transport or ship your unit in the future.

WARNING: TO PREVENT FIRE OR
SHOCK HAZARD, DO NOT expose

THIS APPLIANCE TO RAIN OR MOIS-
TURE.

NOTES
CONCERNING LINE VOLTAGE

.Units shipped to the countries listed in the
table below are designed to be operated with the
AC line voltages that are shown, which are standard
in those countries.

Destination AC Voltage
U.S.A. 120V
CANADA 120V
U.K. 240V
AUSTRALIA 220V

C These units are therefore not equipped with
an AC Voltage Selector. The owners of such units
should disregard all reference to these items in this
Instruction Manual.

AC VOLTAGE SELECTOR

0 Units shipped to countries not listed in
the above table are equipped with an AC Voltage
Selector beneath the Turntable Platter that is preset
at the factory to the voltage generally available in
the destination area. Before operating this turn-
table, make sure that the position of the AC Voltage
Selector matches your line voltage.

If not. it must be changed to the proper setting.

0 Be sure to remove the AC Plug when setting
the AC Voltage Selector.

0 Our warranty does not cover damage caused
by excessive line voltage due to improper setting of
the AC Voltage Selector.

set screw

stopper plate

69 E I"
IZOV Setting 220v Setting

I. Remove the set screw and stopper
plate.

Switch the lever to opposite side.
Lock the lever by attaching stopper
plate with the set screw.

so!»

Page 7

HOW TO ATTACH
THE CARTRIDGE

Cartridge can be attached easily as follows.
The tone arm uses EIA standard connectors that can
accept any head shell on the market that conforms
to this standard.

1. Connect four leads to the cartridge, as shown

in below.
Washers - I
Head Shell ~" . ~ $.53." . ;;;;
Cartridge WHITE L(+)
' I RED R( +)
ms-fig u.)
GREEN R( E)

a.»
3&1

Stylus Cover

2. Attach the cartridge to the head shell but keep
the two screws slightly loose so that the
cartridge can be shifted forward or backward as
desired. Use appropriate length screws. Slip
the overhang gauge over the head shell as
shown in below and move the cartridge so that
the stylus point lines up with the gauge arrow
marks. Now tighten the cartridge locking
screws. This completes correct stylus over-
hang adjustment for this turntable.

3. Plug the head with the cartridge into the tone
arm, and readjust tracking force as explained
on page 5 so that it conforms to the cartridge
manufacturer's recommendation.

Cartridge can be replaced easily by removing
the old one and attaching the replacement in the
above manner.

MAINTENANCE

LIFE OF A STYLUS

A diamond stylus is used in most cartridges.
It is normally good for 500 hours for LP records on
one side. but this varies greatly depending on how
it is used.

A worn stylus will cause treble tones to increase
in harshness. To prevent excessive record wear. a
stylus should be replaced as soon as this becomes
noticeable.

HOW TO REPLACE THE STYLUS

N-47 is the designation of the replacement
stylus for that used in the V47 cartridge.

Replacement stylus may be obtained from the
dealer from whom you purchased this turntable.

You. can replace the stylus easily as shown
below.

StylusN-47"

CLEANING THE CASE AND THE DUST COVER

Clean the case and dust cover gently with dry
cloth or silicone cloth. In case they are badly
dirtied, wipe them with a well wrung cloth that has
been wetted in soapsuds.

Never use thinner, alcohol, benzine or other
volatile liquids.

PERIODICAL CHECK-UP

Generally, machines operated over long periods
without proper care and maintenance may develop
trouble due to poor lubrication, wear. deterioration
or the like. To ensure a long service life and stable
operation. periodical check-up at an interval of two
years or so, if possible, is recommended even if the
equipment appears to be working normally.

Please have such a periodical check-up made
through the dealer.
