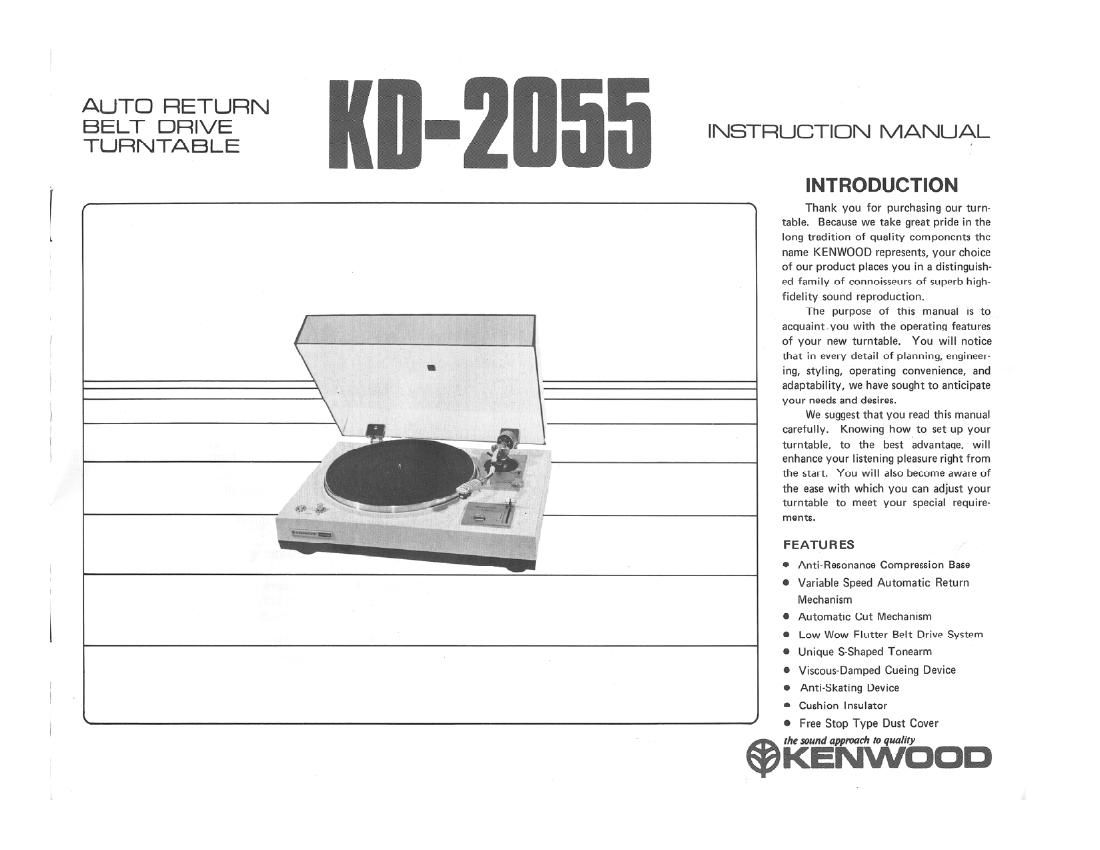

AUTO RETURN
BELT DRIVE INSTR Tl N MAN AL
TURNTABLE - US 0 U '

INTRODUCTION

fi Thank you for purchasing our turn-
table. Because we take great pride in the
long tradition of quality components the
name KENWOOD represents, your choice
of our product places you in a distinguish»
ed family of connoisseurs of superb high-
fidelity sound reproduction.

The purpose of this manual is to
acquaint you with the operating features
of your new turntable. You will notice
that in every detail of planning, engineer-
ing, styling. operating convenience, and
adaptability. we have sought to anticipate
your needs and desires.

We suggest that you read this manual
carefully. Knowing how to set up your
turntable to the best advantage, will
enhance your listening pleasure right from
the start. You will also become aware of
the ease with which you can adjust your
turntable to meet your special require-
ments.

FEATURES

O Anti-Resonance Compression Base

0 Variable Speed Automatic Return
Mechanism

Automatic Cut Mechanism

Low Wow Flutter Belt Drive System
Unique S-Shaped Tonearm

Viscous-Damped Cueing Device
Anti-Skating Device

Cushion Insulator

0 Free Stop Type Dust Cover

@Wéwuwm'bon

Page 2

NOTES
LINE VOLTAGE

In every district there is its own combination of power supply
voltage and frequency. This unit is shipped after it has been preset to
the condition in destination. However, if it should deviate from the
required setting, then it must be rearranged by use of the AC voltage
selector switch and the extra pulley in accordance with the following
information:

ADJUSTING TO YOUR LINE FREQUENCY

An extra pulley and screwdriver are supplied with all turntables
shipped to certain areas where both 50 and 60 Hz AC power is available,
so that the pulley that matches the line frequency can be used. They
are not supplied with turntables shipped to areas where only 50 H2 or
60 Hz AC is available.

1. Remove the line plug from the AC outlett

MODIFICATION CF AC VOLTAGE

The AC voltage can be switched over always after pulling off the
AC plug from the wall outlet (Fig. 1).

set screw stopper plate

1. Remove the set screw and stopper

(43 plate.
2. Switch the lever to opposite side.
0 -
© © 5 W © 3. Lock the lever by attaching stopper

plate with the set screw.

I zov Setting

220v Setting

Fig. 1 Ac Voltage Selector Switch

Our warranty does not cover damage caused by excessive line voltage
due to improper setting of the AC voltage selector switch.

2

Destination AC voltage Frequency Ac voltage selector 2' Remove ""3 turntable 913
3. Loosen the set screws on the motor pulley and

u.s.A. 120v so Hz Not provided 3" "9 '°° p"°V~

. 4. Tighten the two set screws.
Canada 120V 60 Hz Not prowded / 5. At the same time, pass the drive belt, which is
Scandinavia 220v 50 Hz Not provided underneath the turntable platter. through the

_ guide arm and hook it over the motor pulley.
Australia 220V 50 Hz Not protruded
Europe 120 ~ 220V 50 / 60 Hz Provided Fig. 2 Adjusting to Your Line Frequency
Other nations 120 ~ 220V 50 l 60 Hz Provided

PRECAUTIONS CONCERNING INSTALLATION

Close attention to the following installation hints will help you to

get best performance from this turntable.

0 Install the turntable in a perfectly horizontal position on a firm
foundation that is free from vibration.

O Avoid locations that are subject to direct sunlight, and those
adjacent to heaters or stoves.

0 Best performance may not be obtained in extremely cold, freez-
ing temperatures.

0 Avoid damp locations and places where there is no ventilation.

o It is advisable to keep the turntable as far away from the speakers
as possible to prevent howling and feedback problems.

WARNING: TO PREVENT FIRE 0R SHOCK HAZARD, DO

NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
SERIAL NUMBER

Record your SERIAL NUMBER on the spaces designated on the
warranty card. You will find the serial number on the back of the unit.
