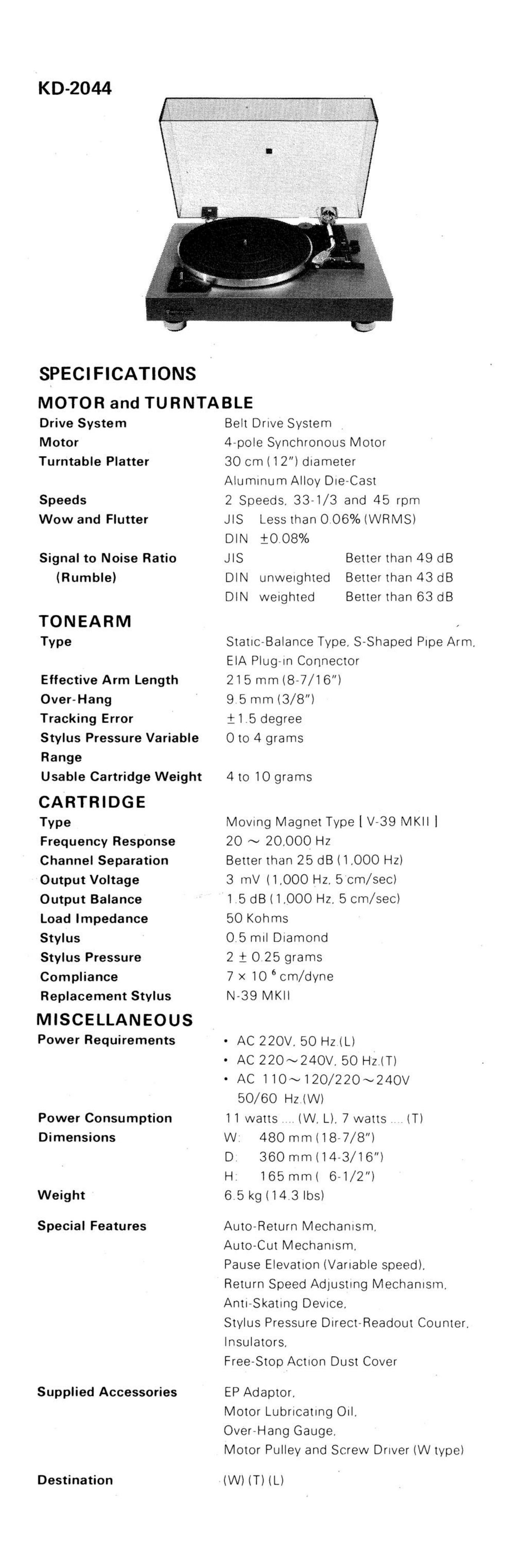

KD-2044

-..,,;.;.;.: .»'.-:-

SPECIFICATIONS

4):}: :1 """

MOTOR and TU RNTABLE

Drive System
Motor
Turntable Platter

Speeds
Wow and Flutter

Signal to Noise Ratio
(Rumble)

TONEARM
Type

Effective Arm Length
Over-Hang

Tracking Error

Stylus Pressure Variable
Range

Usable Cartridge Weight

CA RTR I DG E
Type

Frequency Response
Channel Separation
Output Voltage
Output Balance
Load Impedance
Stylus

Stylus Pressure
Compliance
Replacement Stylus

MISCELLANEOUS

Power Requirements

Power Consumption
Dimensions

Weight

Special Features

Supplied Accessories

Destination

Belt Drive System

4-pole Synchronous Motor

30 cm (12) diameter

Aluminum Alloy Die-Cast

2 Speeds. 33-1/3 and 45 rpm

JIS Less than 0 06% (WRMS)

DIN i0.08%

JIS Better than 49 dB
DIN unweighted Better than 43 dB
DIN weighted Better than 63 dB

Static-Balance Type. S-Shaped Pipe Arm.
ElA Plug-in Connector

215 mm (8-7/16)

9 5 mm (3/8)

i15 degree

0 to 4 grams

4 to 10 grams

Moving Magnet Type I V-39 MKII I
20 ~ 20.000 Hz

Better than 25 dB (1.000 H2)

3 mV ((000 Hz. 5 cm/sec)

1.5 dB (1.000 H2. 5 cm/sec)

50 Kohms

0.5 mil Diamond

2 i O 25 grams

7 x10 6 cm/dyne

N-39 MKII

- AC 220V. 50 Hz(L)

- AC 220~240V. 50 Hz.(T)

- AC 110~120/220~240V
50/60 Hz.(W)

11 watts .. (W. L). 7 watts .. . (T)

W: 480 mm(18-7/8")

D. 360 mmlI4-3/16)

H. 165mm( 6-1/2")

6.5 kg (14.3 lbs)

Auto-Return Mechanism.

Auto-Cut Mechanism.

Pause Elevation (Variable speed).
Return Speed Adjusting Mechanism.
Anti-Skating DeVice.

Stylus Pressure Direct-Readout Counter.
Insulators.

Free-Stop Action Dust Cover

EP Adaptor.

Motor Lubricating Oil.

Over-Hang Gauge.

Motor Pulley and Screw Driver (W type)

(W) (T) (L)
