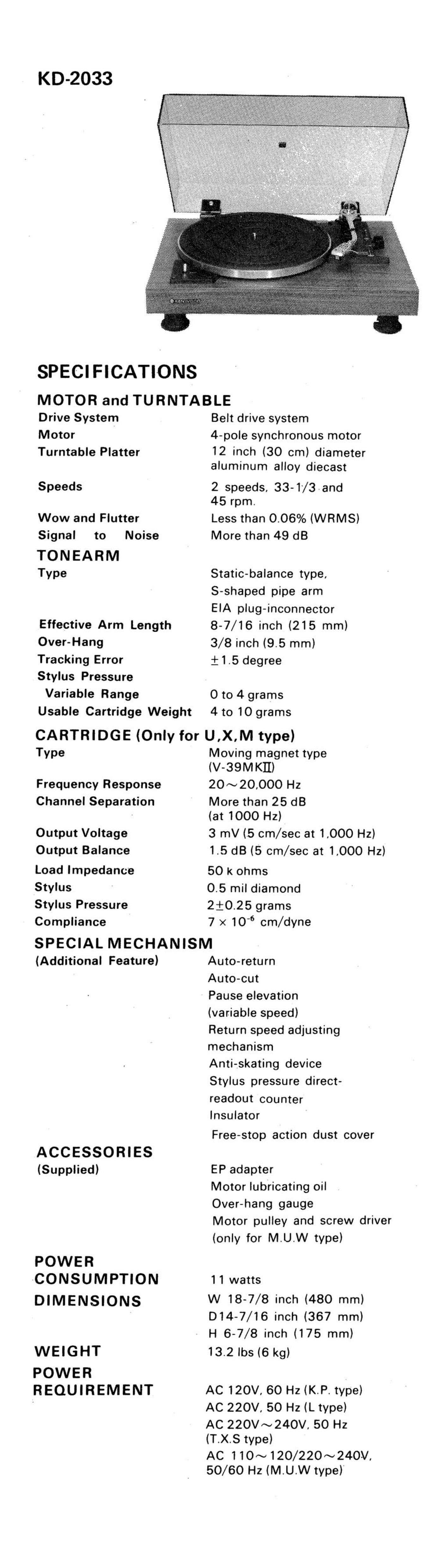

Page 1
KD-2033
SPECIFICATIONS
MOTOR and TURNTABLE
Drive System Belt drive system
Motor 4-pole synchronous motor
Turntable Platter 12 inch (30 cm) diameter
aluminum alloy diecast
Speeds 2 speeds, 33-1/3-and
45 rpm.
Wow and Flutter Less than 0.06% (WRMS)
Signal to Noise More than 49 dB
TONEARM
Type Static-balance type,
S-shaped pipe arm
ElA plug-inconnector
Effective Arm Length 8-7/16 inch (215 mm)
Over-Hang 3/8 inch (9.5 mm)
Tracking Error 1:15 degree
Stylus Pressure
Variable Range 0 to 4 grams
Usable Cartridge Weight 4 to 10 grams
CARTRIDGE (Only for U,X,M type)
Type Moving magnet type
(V-39M K11)
Frequency Response 20~20,000 Hz
Channel Separation More than 25 dB
' (at 1000 Hz)
Output Voltage 3 mV (.5 cm/sec at 1.000 H2)
Output Balance 1.5 dB (5 cm/sec at 1,000 Hz)
Load Impedance 50 k ohms
Stylus ' 0.5 mil diamond
Stylus Pressure 2i0.25 grams
Compliance 7 x 10'6 cm/dyne
SPECIAL MECHANISM
(Additional Feature) Auto-return
Auto-cut
Pause elevation
(variable speed)
Return speed adjusting
mechanism
Anti-skating device
Stylus pressure direct-
readout counter
Insulator '
Free-stop action dust cover
ACCESSORIES
(Supplied) EP adapter
Motor lubricating oil
Over-hang gauge
Motor pulley and screw driver
(only for M.U.W type)
POWER
CONSUMPTION 11 watts
DIMENS|0NS W 18-7/8 inch (480 mm)
014-7/16 inch (367 mm)
H 6-7/8 inch (175 mm)
WEIGHT 13.2 lbs (6 kg)
POWER
REQUIREMENT AC 120V, 60 Hz (K.P. type)
AC 220V, 50 Hz (L type)
AC 220V~24OV, 50 Hz
(T.X.S type)
AC 110~120/220~240V.
50/60 Hz (M.U.W type)"
