Kenwood KCZ 1 Service Manual

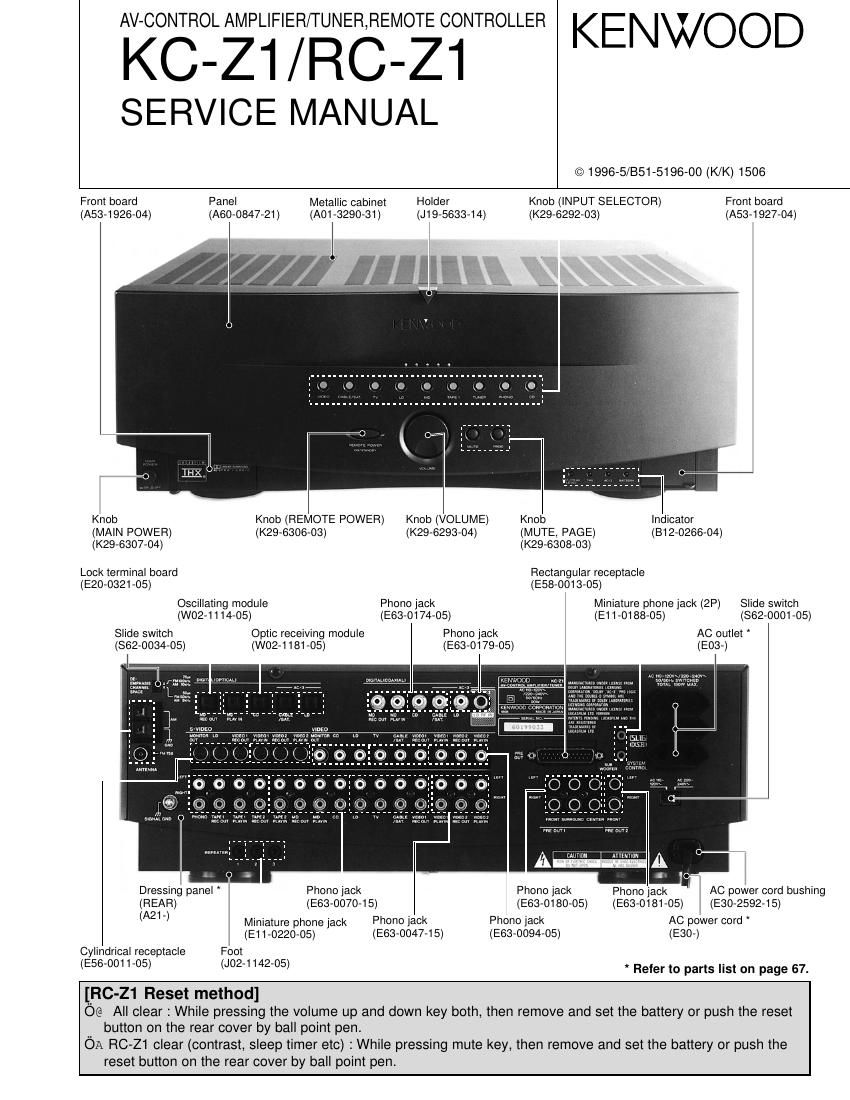

Page 1

AV-CONTROLAMPLIFIER/TUNERBEMOTECONTROLLER KEN V OOD
KC-Z1/RC-Z1 W

SERVICE MANUAL

©1996-5/BS1-5196-00 (K/K) 1506

From board Panel Metallic cabinet Holder Knob (INPUT SELECTOR) Front board
(A53-1926-04) (A60-0847-21) (A01 -3290-31) (J19-5633-14) (K29-6292-03) (A53-1927-04)

Knob Knob (REMOTE POWER) Knob (VOLUME) Knob Indicator

(MAIN POWER) (K29-6306-03) (K29-6293-04) (MUTE, PAGE) (312-0266-04)
(K29-6307-04) (K29-6308-03)

Lock terminal board Rectangular receptacle

(E20-0321-05) (E58-0013-05)

Oscillating module Phono jack Miniature phone jack (2P) Slide switch
(W02-1114-05) (E63-0174-05) (E11-0188-05) (862-0001-05)
Slide switch Optic receiving module Phono jack AC outlet
(862-0034-05) (W02-1181-05) (E63-0179-05) (EO3-)

WIT-VT

Dressing panel Phono jack Phono jack Phono jack AC power cord bushing
(REAR) (EGG-007045) (E63-0180-05) (E63-0181-05) (E30-2592-15)
(AZH Miniature phone jack Phono jack Phono jack AC power cord

(E11-0220-05) (EGG-00474 5) (E63-0094-05) (E30-)

Cylindrical receptacle Foot
(E56-0011-05)

[RC-Z1 Reset method]

0@ All clear : While pressing the volume up and down key both, then remove and set the battery or push the reset
button on the rear cover by ball point pen.

OA RC-Z1 clear (contrast, sleep timer etc) : While pressing mute key, then remove and set the battery or push the
reset button on the rear cover by ball point pen.

(J02-1142-05)

* Refer to parts list on page 67.

Page 2

CONTENTS / ACCESSORIES

Contents

CONTENTS / ACCESSORIES .. 2 WIRING DIAGRAM

LCD CONTROLLER 3 PC BOARD .....

DISASSEMBLY FOR REPAIR .. 4 SCHEMATIC DIAGRAM.

BLOCK DIAGRAM .............. 5 EXPLODED VIEW

CIRCUIT DESCRIPTION. 7 PARTS LIST....

ADJUSTMENT ................... . 17 SPECIFICATIONS....

Accessories

I N
TouchPanel/LCD controller (1) Batteries for TouchPanel Infra-Red (IR) Repeater
(X94-1080-10) (DR17-type) (2) /Transmitting assy (1)

(WO3-4898-05) (W02-2542-05)

T N

Battery cover (A09-0334-13)

Audio cables (3) , , , AM loop antenna assy (1) (T90-0826-05) 777777
(E30-2600-05)
Loop antenna stand

(J19-3645-05)

System control cable (1) Antenna adaptor(1) FM indoor antenna (1) AC plug adaptor (1)
(E30-2733-05) (T90-0827-05) (T90-0176-05) (E03-0115-05) : M type
r
$4
\ J

Instruction manual

Paris No.(".')@ Parts N0.0A Destination
ENGLISH 860-2476-00 360-2758-00 K, M
FRENCH BSO-Z477-00 360-2759-00
CHINESE 860-2478-00 360-2760-00

TAIWAN ESE 860-2479-00 360-2761-00
SPANISH 860-2724-00 360-2762-00

EEEX
