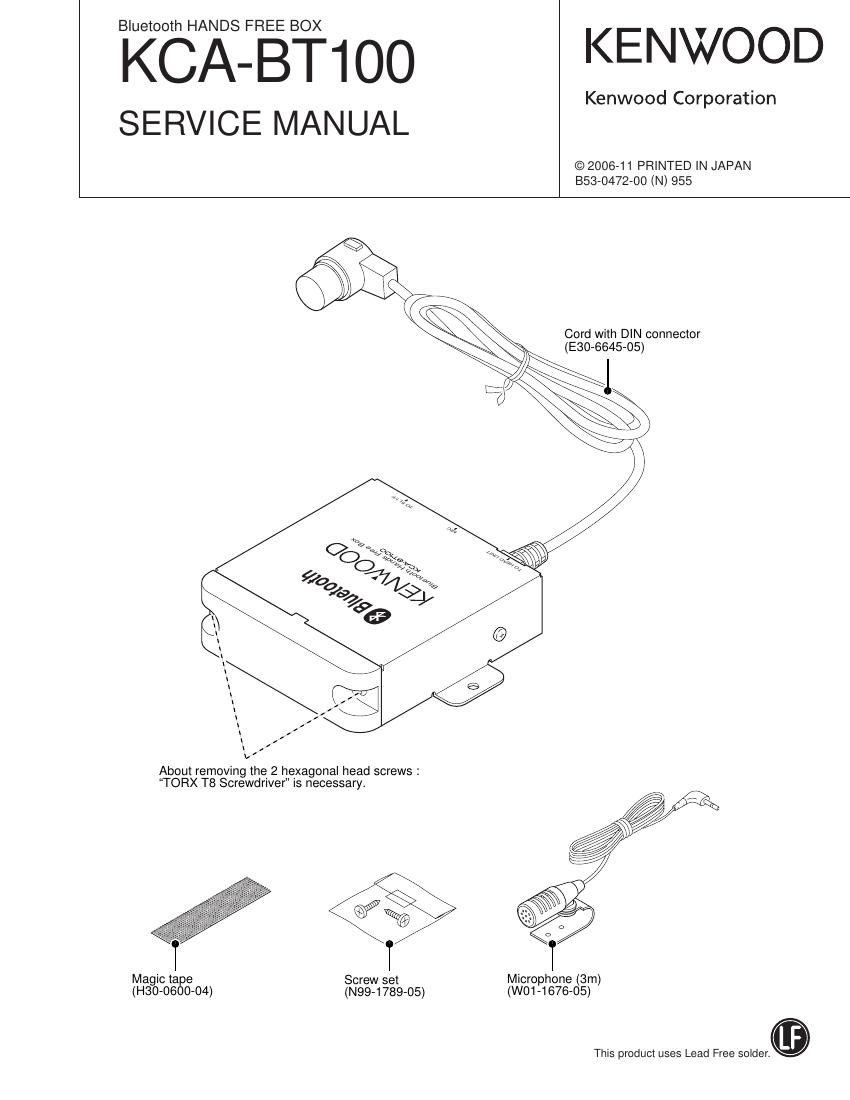

Page 1
KCABT1OO KENWOOD
Kenwood Corporation
SERVICE MANUAL
© 2006-11 PRINTED IN JAPAN
853-0472-00 (N) 955
s
2 :
Cord with DIN connector
(E30-6645-05)
About removing the 2 hexagonal head screws :
TORX T8 Screwdriver is necessary.
._ $
W
Magic tape Screw set Microphone (3m)
(H30-0600-04) (N99-1789-05) (W01-1676-05)
This product uses Lead Free solder.
