Kenwood KAV 7700 Owners Manual

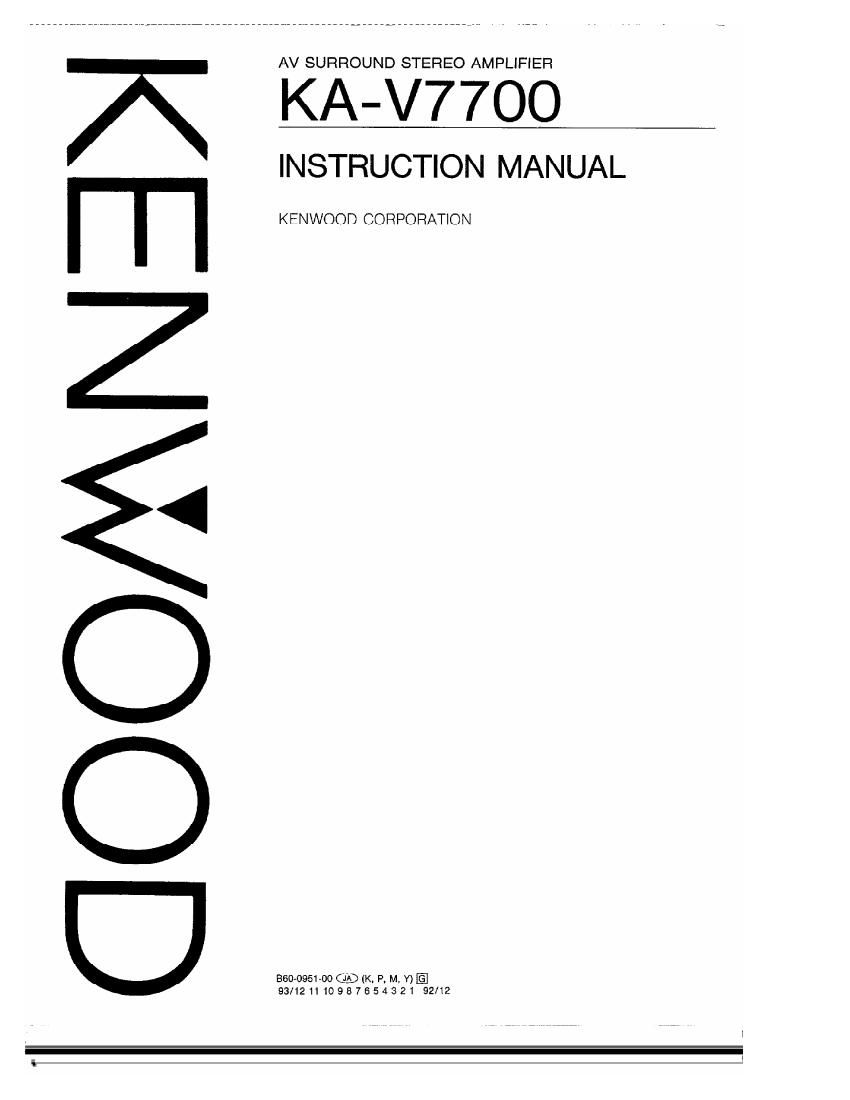

Page 1

C]../Y\N3>l

AV SURROUND STEREO AMPLIFIER

KA-V7700

INSTRUCTION MANUAL

KENWOOD CORPORATION

Page 2

Introduction

Your choice of this product indicates that you are a devotee
to excellence in sound reproduction

We appreciate your patronage and take pride in the long tradi-
tion oi quality components that our company represents.

So that you can get the most out of your unit. we suggest that
you take the time to read through this manuai before you hook
up and operate your system. This will acquaint you with oper-
ating features and systemrconnection oonsrderations so that
your listening pleasure will be enhanced right from the start.
You will notice that in all aspects of planning. engineering,
Sty ing. ooeratlhgconvenienceand adaptability wehave sought
to anticipate your needs and desires.

Keep this manual handy for future reference.

For your records

Record the serial number. found on the back of the unit, in
the spaces designated on the warranty card, and in the space
provided oelow. fieier to the model and serial numbers
whenever you call upon your dealer for information or servroe
on this product.

Model- Serial Number

Unpacking

Unpack the unit carefully and make sure that all accessories
are put aside so they will not be lost.

Examine the unit for any possibility of shipping damage if
your unit is damaged or fails to operate, notify your dealer
immediately. if your unit was shipped to you directly, notify
the shipping company without delay. Only the consignee (the
person or company receiving the unit) can file a claim against
the carrier for shipping damage.

We recommend that you retain the original carton and pack-
ing materials for use should you transport or ship the unit in
the future.

Accessories

0 Remote control unit entry
sheet 1

0 Remote control unit 1

o AC plug adaptor... 1
(Except for some areas.)
For the unit With a European AC

I Batteries
(ROB/U M-4/"AAA"l 2

p ug in areas other than Europe.

are

Contents

Introduction
ABefore applying power

Safety precautions M. 3
AiMPORTANT SAFEGUARDS 4
Controls and indicators 6
System connections .. 7

Playing back an audio source
On-screen character display
Playing back a video source
Recording a video source
Presence feature .....

Caution: Road the page: marked A car-fully to endure safe operation.

Dolby Surround
Dolby 3 Stereo
Presence . .........................
Play with Presence effect
Surround Information Memory
Title Edit func:ion .
Operation of remote control unit.
in case of difficulty.

peciflcations

2 KA-V7700 iEni
