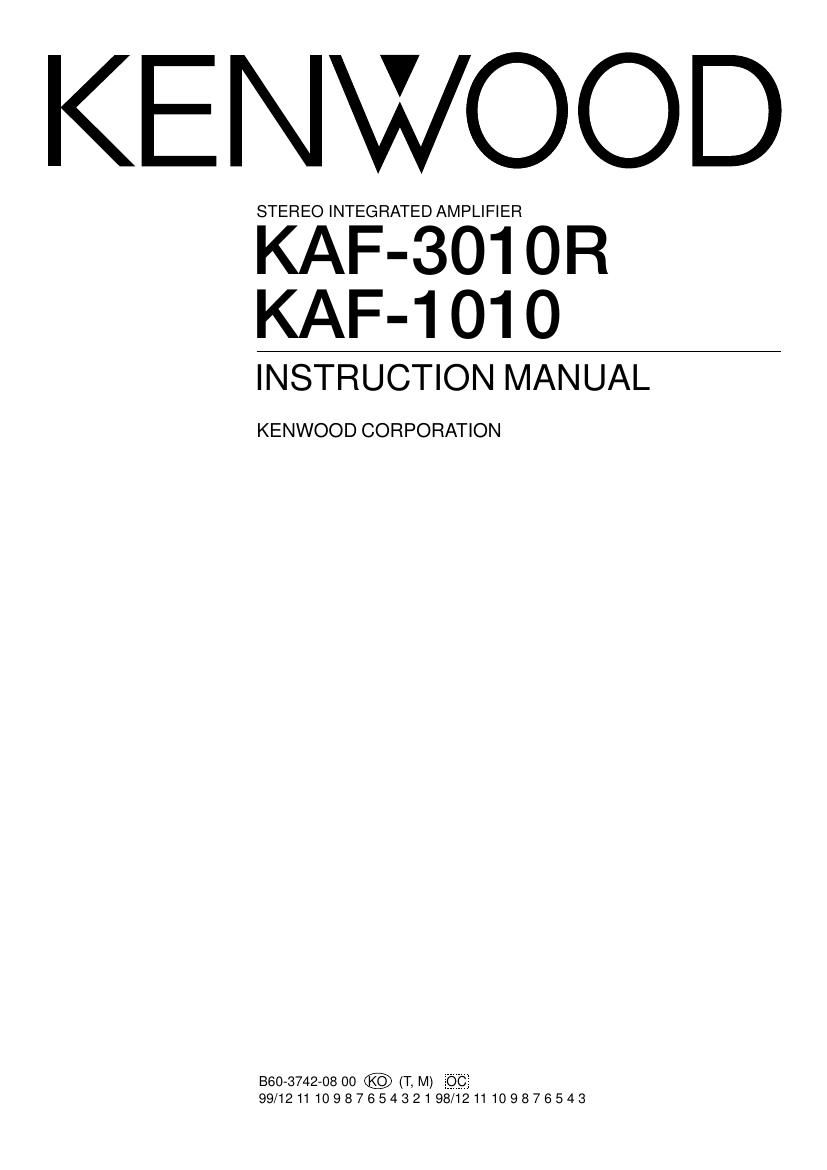

Kenwood KAF 3010 R Owners Manual
This is the 16 pages manual for Kenwood KAF 3010 R Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KAF 3010 R Owners Manual (Ocr-read)
Page 1
2 KAF-3010R/1010 (En) Before applying power Units are designed for operation as follows. Europe and U.K...................................................................... AC 230 V only *Other countries............................. AC 110-120 /220-240 V switchable For the United Kingdom Factory fitted moulded mains plug 1. The mains plug contains a fuse. For replacement, use only a 13-Amp ASTA-approved (BS1362) fuse. 2. The fuse cover must be refitted when replacing the fuse in the moulded plug. 3. Do not cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter, or consult your dealer. If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. IMPORTANT The wires in the mains lead are coloured in accordance with the following code. Blue : Neutral Brown : Live Do not connect those leads to the earth terminal of a three-pin plug. Safety precautions CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN WARNING :TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED ÒDANGEROUS VOLTAGEÓ WITHIN THE PRODUCTÕS ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS. THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE. Unpacking Unpack the unit carefully and make sure that all accessories are put aside so they will not be lost. Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to operate, notify your dealer immediately. If your unit was shipped to you directly, notify the shipping company without delay. Only the consignee (the person or company receiving the unit) can file a claim against the carrier for shipping damage. We recommend that you retain the original carton and packing materials for use should you transport or ship the unit in the future. Caution : Read this page carefully to ensure safe operation. *For other countries This unit operates on 110-120 or 220-240 volts AC . The AC voltage selector switch on the rear panel is set to the voltage that prevails in the area to which the unit is shipped. Before connecting the power cord to your AC outlet, make sure that the setting position of this switch matches your line voltage. If not, it must be set to your voltage in accordance with the following direction. AC voltage selection AC voltage selector switch Move switch lever to match your line voltage with a small screwdriver or other pointed tool. Note: Our warranty does not cover damage caused by excessive line voltage due to improper setting of the AC voltage selector switch. AC 220- 240V AC 110- 120V
Page 2
3 KAF-3010R/1010 (En) Special features SOURCE DIRECT Lets you enjoy high quality sound from the music source selected by the INPUT SELECTOR. Caution : Read the pages marked carefully to ensure safe operation. Contents Before applying power .................................................................................................................................................. 2 Before applying power.................................................................................................................... 2 Safety precautions.......................................................................................................................... 2 Special features .................................................................................................................................................. 3 System connection .................................................................................................................................................. 4 The system control connections.......................................................................................................... 5 Connection of speakers........................................................................................................................ 6 Controls and indicators .................................................................................................................................................. 7 Main unit................................................................................................................................................ 7 Remote control unit...............................................................................................................................8 Operation of remote control unit .................................................................................................................................................. 9 Playing music ................................................................................................................................................ 10 Normal Playback.................................................................................................................................. 10 Sound adjustment functions ................................................................................................................................................ 11 To mute sound temporarily................................................................................................................ 11 Adjusting the left/right sound balance............................................................................................... 11 Adjusting the tone............................................................................................................................... 11 Emphasizing deep bass (LOUDNESS)............................................................................................... 11 To listen through headphones............................................................................................................ 12 Listening to high quality sound from a music source (SOURCE DIRECT).................................... 12 Recording ................................................................................................................................................ 13 To record a music source................................................................................................................... 13 In case of difficulty ................................................................................................................................................ 14 Specifications ................................................................................................................................................ 15 Accessories Remote control unit (1) (KAF-3010R only)Batteries (R6/SUM-3) (2) (KAF-3010R only) AC plug adaptor (1) Use to adapt the plug on the power cord to the shape of the wall outlet. (Accessory only for regions where use is necessary.)
Page 5
6 KAF-3010R/1010 (En) ÄSL 16 XS-8 +––+ PHONO CD TUNER TAPESYSTEM CONTROL SPEAKERS iA or B : 4–16W, A and B : 8–16W j REC PLAY REC PLAYMD SIGNAL GND LR R L R L B A Connect the speakers as shown below, ensuring that bare wires do not make contact with other terminals. Speaker impedance When only one pair of speakers is connected to A or B speaker terminals, use the speakers having an impedance of 4 to 16 W. When two pairs of speakers are connected to both A and B terminals simultaneously, use the speakers having an impedance of 8 to 16 W. In this case, connecting a speaker having an impedance of less than 8 W may cause malfunction of the amplifier. 1Strip coating. 3Insert. 2Loosen. 4Secure. Speaker system B ¥Never short-circuit the + and Ð speaker cords. ¥If the left and right speakers are connected inversely or if the speaker cords are connected with reversed polarity, the sound becomes unnatural with ambiguous acoustic image positioning. Be sure to connect the speakers and speaker cords correctly. 1 Connect all cords firmly. If connections are loose, there could be loss of sound or noise produced. 2. When plugging and unplugging connection cords, be sure to first remove the power cord from the AC outlet. Plugging / unplug- ging connection cords without removal of the power cord can cause malfunctions or damage to the unit. 3 Do not connect up a power source which is larger than that indicated on the socket at the rear of the unit. Speaker system A RIGHT RIGHTLEFT LEFT á »á» á »á» Notes Notes Connection of speakers
