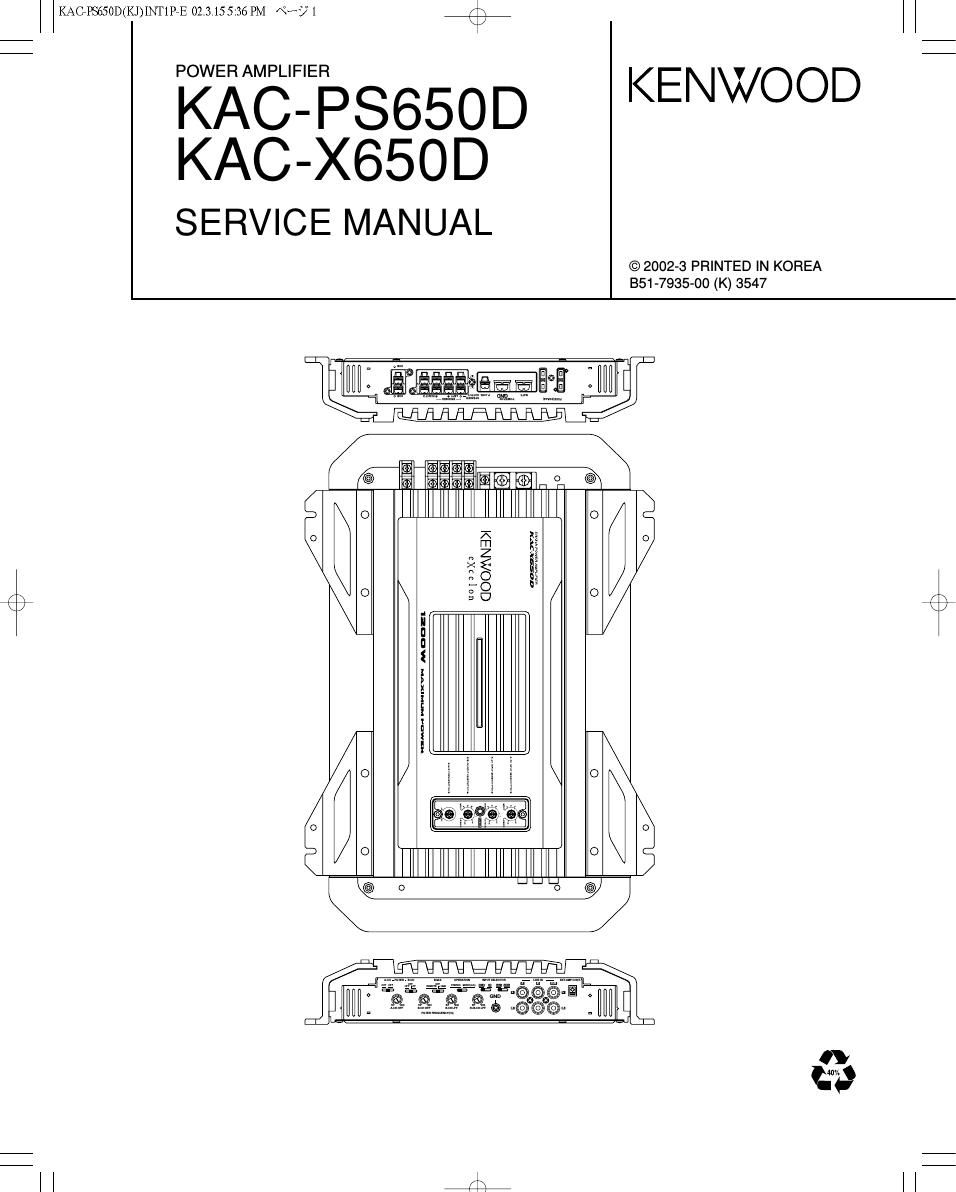

Kenwood KACPS 650 D Service Manual
This is the 19 pages manual for Kenwood KACPS 650 D Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KACPS 650 D Service Manual (Ocr-read)
Page 2
r\
\J
KACFP8650D(KJ)INT1P7E 02.3.155:36PM «>92 #¢_
KAC- P8650 D/X65OD
MICROCOMPUTER'S TERMINAL DESCRIPTION
(x09-) IC22 : u-COM
P331- PORT NAME IIO FUNCTION OPERATING CONDITION
1 W 0 Controls small-amount current. "L" : SW 5V on.
2 _ . . _
3 FAN 0 Controls fan rotation. "H" : Fan on.
4 _ . . _
5 m | Detects class-D over-voltage. "L" : Over-voltage detection.
6 V DOWN | Detects momentary power down. "H" : Momentary power-down detection.
7 W I Detects class-D over-current. "L" (Class-D power on) : Over-current detection.
8 m | Detects class-AB over-voltage. "L" : Over-voltage detection.
9 AB CURRENT I Detects class-AB over-current. "H" : Over-current detection.
10 BLUE 0 Controls BLUE of variable illumination. "H" : Illumination on.
11 GREEN 0 Controls GREEN of variable illumination. "H" ; Illumination on.
12 RED 0 Controls RED of variable illumination. "H" : Illumination on.
13 TEST - - -
14 m - Resets. "L" : Reset.
15 XIN - - .
16 XOUT - - -
17 V88 - - -
18 VAREF - A/D reference. -
19 ADIN 1 | Detects temperature. "H" : Unusual temperature detection.
20 ADIN 2 | Detects temperature. "H" : Unusual temperature detection.
21 ADIN 3 | Detects temperature. "H" : Unusual temperature detection.
22 ADIN 4 | Detects temperature. "H" : Unusual temperature detection.
23 - ' -
24 BASS 12dB I Stabilizes BMS +12dB. "H" : BMS +12dB stabilization.
25 BASS REMO | Being remote-controlled from BMS head unit. "H" : remote control available.
26 BASS OFF | Releases boost. "H" : Boost off.
27 D POWER 0 Controls class-D amplifier. "H" : Class-D amplifier on.
28,29 - - - -
30 POWER 0 Controls power amplifier. : SW 14.4V on.
31 COM HU | Measures the head unit pulse. -
32 OFFSET CON 0 Controls bass boost frequency offset. "H" : Offset on.
33 BASS CON A 0 Controls bass boost frequency offset. -
34 BASS CON B 0 Controls bass boost frequency offset. -
35,36 - - -
37 STAND-BY | Cancels step mode by P-CON on. "L" : P.CON on or BACK-UP over-voltage detection.
38,39 - - - -
40 VDD - VDD. -
41 TACT SW | Switches color. "H" : SW on.
42 m 0 Controls driver stages. "L" : Mute on.
43 m 0 Controls amplifier input mute. "L" : Mute on.
44 - - - -
