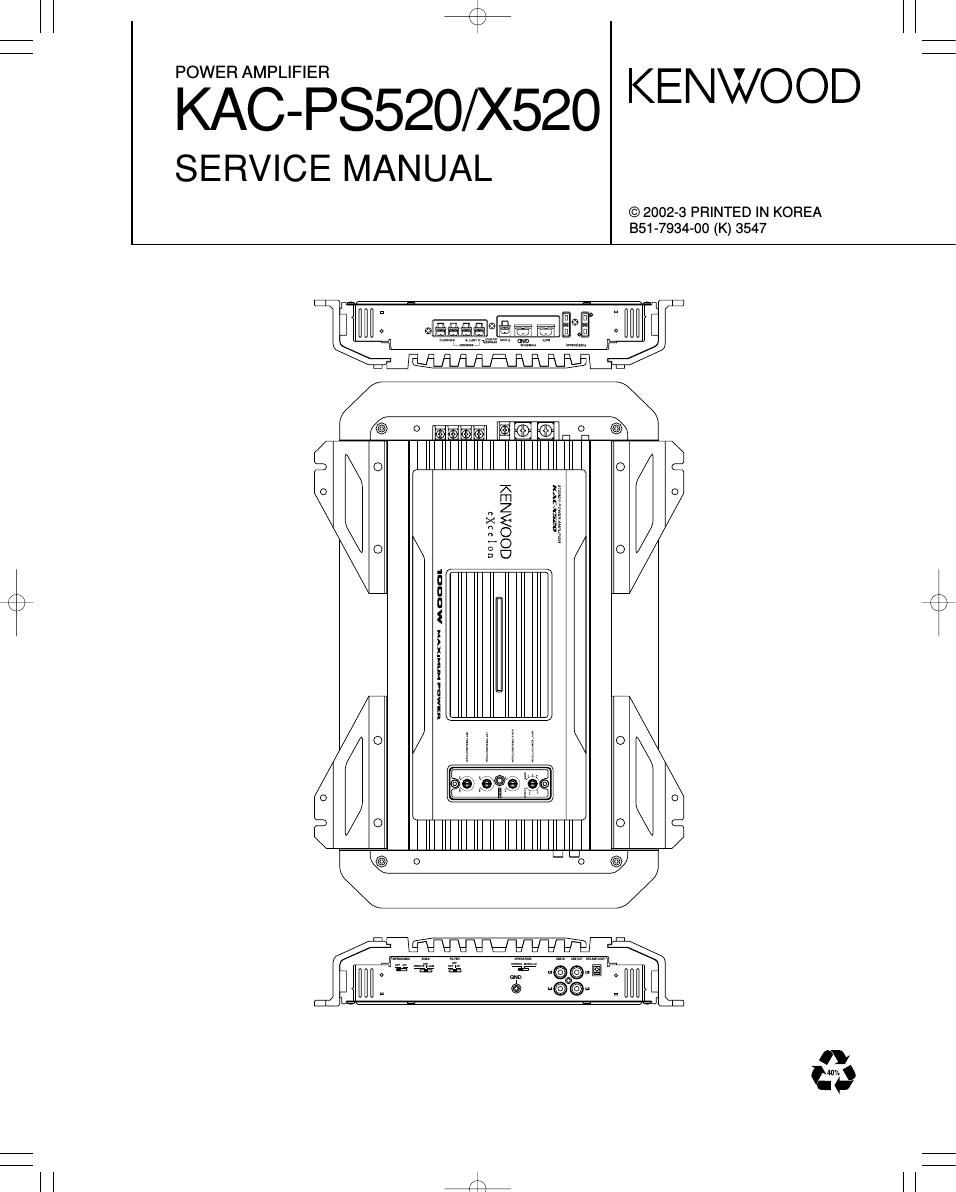

Kenwood KACPS 520 Service Manual
This is the 14 pages manual for Kenwood KACPS 520 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KACPS 520 Service Manual (Ocr-read)
Page 2
r\
\J
KAGPSSZO(K)CINT1P 02.3.1110:34AM «>31 +
KAC-PS520/X520
MICROCOMPUTER'S TERMINAL DESCRIPTION
(x09-) IC11 : u-COM
P331. PORT NAME IIO FUNCTION OPERATING CONDITION
1 W 0 Controls small-amount current. "L" : SW 5V on.
2 . . . _
3 FAN 0 Controls fan rotation. "H" : Fan on.
4 - . - _
5 D VOLTAGE | Detects class-D over-voltage. "L" : Over-voltage detection.
6 V DOWN I Detects momentary power down. "H" : Momentary power-down detection.
7 W | Detects class-D over-current. "L" (Class-D power on) : Over-current detection.
8 m | Detects class-AB over-voltage. "L" : Over-voltage detection.
9 AB CURRENT I Detects class-AB over-current. "H" : Over-current detection.
10 BLUE 0 Controls BLUE of variable illumination. "H" : Illumination on.
11 GREEN 0 Controls GREEN of variable illumination. "H" : Illumination on.
12 RED 0 Controls RED of variable illumination. "H" : Illumination on.
13 TEST - - _
14 m - Resets. "L" : Reset.
15 XIN - - -
16 XOUT - - -
17 V88 - - -
18 VAREF - A/D reference. -
19 ADIN 1 | Detects temperature. "H" : Unusual temperature detection.
20 ADIN 2 | Detects temperature. "H" : Unusual temperature detection.
21 ADIN 3 | Detects temperature. "H" : Unusual temperature detection.
22 ADIN 4 | Detects temperature. "H" : Unusual temperature detection.
23 - ' -
24 BASS 12dB I Stabilizes BMS +12dB. "H" : BMS +12dB stabilization.
25 BASS REMO | Being remote-controlled from BMS head unit. "H" : remote control available.
26 BASS OFF | Releases boost. "H" : Boost off.
27 D POWER 0 Controls class-D amplifier. "H" : Class-D amplifier on.
28,29 - - - -
30 POWER 0 Controls power amplifier. "H" : SW 14.4V on.
31 COM HU | Measures the head unit pulse. -
32 OFFSET CON 0 Controls bass boost frequency offset. "H" : Offset on.
33 BASS CON A 0 Controls bass boost frequency offset. .
34 BASS CON B 0 Controls bass boost frequency offset. -
35,36 - - - -
37 STAND-BY | Cancels step mode by P-CON on. "L" : P.CON on or BACK-UP over-voltage detection.
38,39 ' ' -
40 VDD - VDD. -
41 TACT SW | Switches color. "H" : SW on.
42 m 0 Controls driver stages. "L" : Mute on.
43 m 0 Controls amplifier input mute. "L" : Mute on.
44 - . - _
