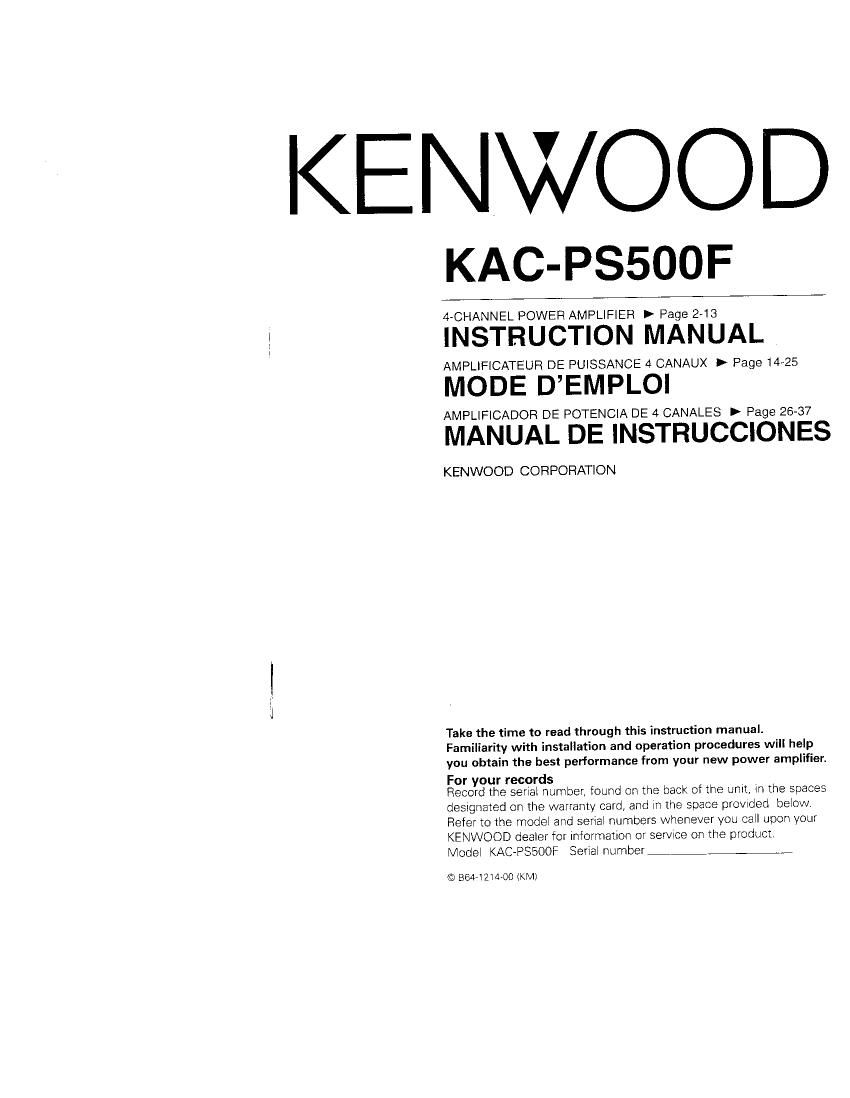

Page 1

KENWOOD

KAC-PSSOOF

4-CHANNEL POWER AMPLIFIER P Page 2713

INSTRUCTION MANUAL

AMPLIFICATEUR DE PUISSANCE 4 CANAUX F Page 14-25

MODE DEMPLOI
AMPLIFICADOR DE POTENCIA DE 4 CANALES > Page 26-37

MANUAL DE INSTRUCCIONES

KENWOOD CORPORATION

Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help
you obtain the best performance from your new power amplifier.
For your records

Record the serial number, found on the back of the unit, lh the spaces
designated on the warranty card, and lfl the space provrded belowv
Refer to the model and serial numbers whenever you call upon your
KENWOOD dealer for Information or sen/ice on the product,

Model KAC-PSEOOF Serial numberi r

© B647l2l4A00 (KM)

Page 2

Safety pregautigns

AWARNING

Take the following precautions to
prevent fire and avoid personal
injury:

OWhen extending the battery cable, or
ground cable, use 5mm2 (AWGlO) or
larger automotive grade cable to avoid
cable deterioration or damage to the
covering.

0Check that no metal objects (coins, tools,
etc) are left inside the unit to avoid short
circuits.

Olf you smell or see smoke, turn the
power off immediately and consult your
Kenwood dealer.

- Do not touch the unit during use because
the surface of the unit becomes hot and
may cause burns if touched,

ACAUTION

Take the following precautions to
keep the unit in proper working
order.

0 Be sure the unit is connected to a 12V
DC power supply with a negative ground
connection,

0 Do not open the top or bottom cover.

0 Do not install the unit in places it is
exposed to direct sunlight, high heat or
humidity, water may splash over it, or
dust exists.

0 If you have difficulty in installing this unit
in your vehicle, contact your Kenwood
dealer.

Cleaning the unit

- If the surface is dirty, wipe it clean with a
silicon cloth or soft dry cloth with the
power off.

ACAUTION

Do not use hard cloths or paint thinner,
alcohol, or other volatile solvents. These
may damage external surfaces or remove
indicator characters.

FCC WARNING

This equipment may generate or Use radio
frequency energy. Changes or
modifications to this equipment may
cause harmful interference unless the
modifications are expressly approved in
the instruction manual. The user could
lose the authority to operate this
equipment if an unauthorized change or
modification is made.

Accessories _ _ _
External Number
Part name View of Items

Self-tapping screws
(05 x 18mm)

6

Terminal cover
(Power terminal)

@1113»

. 2 English
