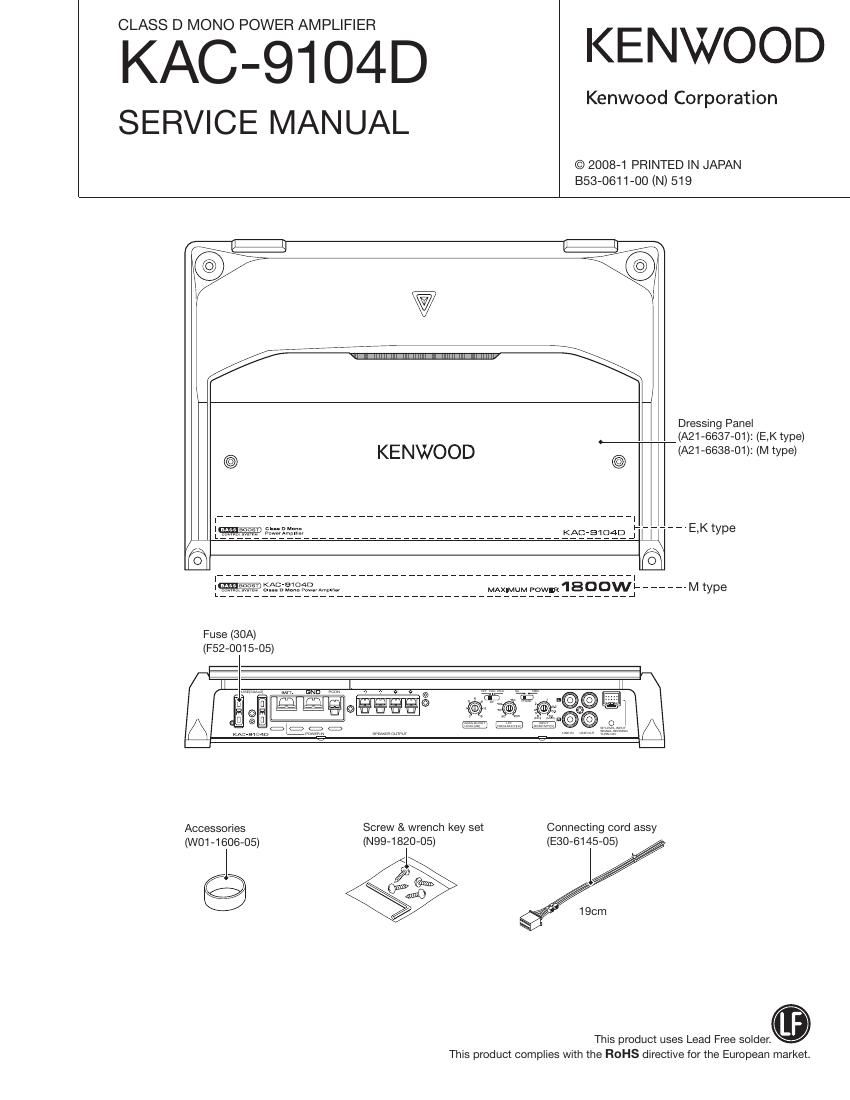

Page 1
CLASS D MONO POWER AMPLIFIER
KAC-9104D KENWOOD
Kenwood Corporation
SERVICE MANUAL
© 2008-1 PRINTED IN JAPAN
853-0611-00 (N) 519
Dressing Panel
(A21-6637-01): (E,K type)
(A21 -6638-01): (M type)
777E,Ktype
Fuse (30A)
(F52-0015-05)
Accessories Screw & wrench key set Connecting cord assy
(W01-1606-05) (N99-18T0-05) (E30-6145-05)
I é I/
@ 0%
190m
This product uses Lead Free soldert.
This product complies with the RoHS directive for the European market.
