Page 20

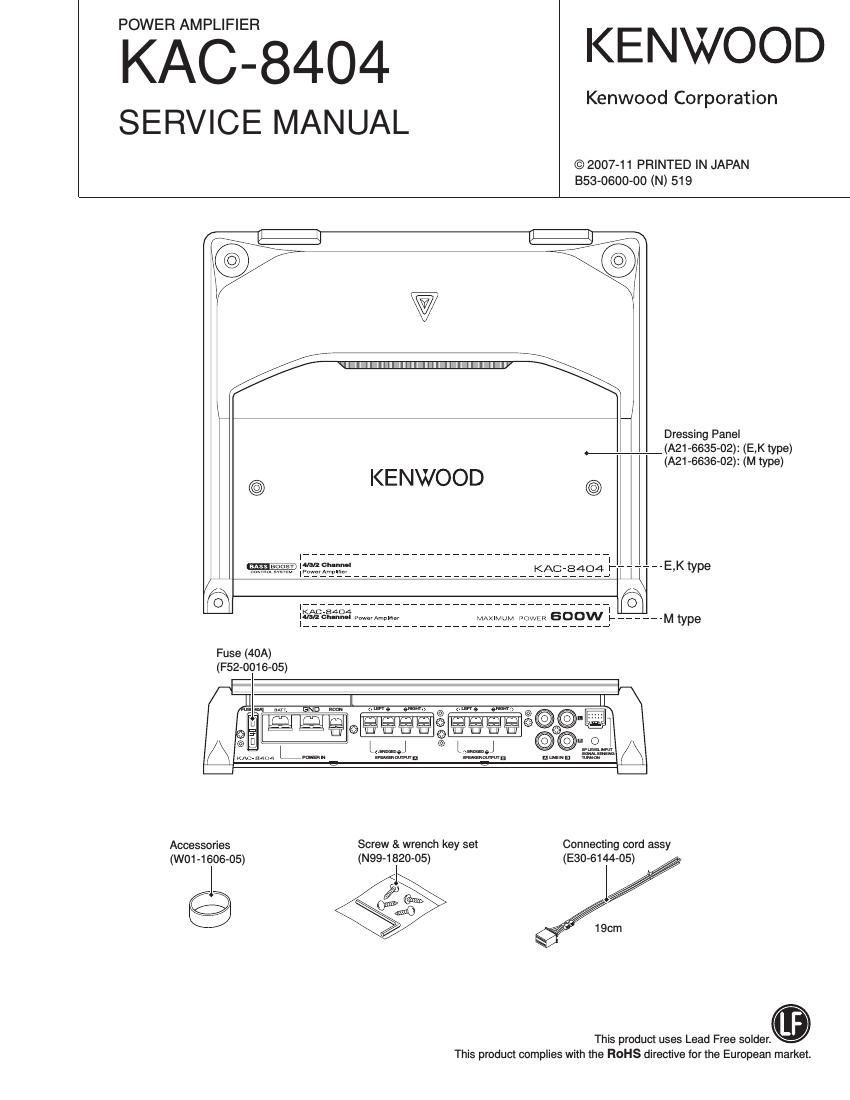

KAC-8404
SPECIFICATIONS
KAC-8404 K,E
CEA-2006
Primary Power Output Ratings
(RMS Watts per channel @ 4 ohms, 1 % THD+N)
.. .. 50 W x 4
Signal to Noise Ratio (Reference: 1Watt into 4 ohms)
................................................................................ 80 dBA
Audio Section
Max Power Output.... ..... 600 W (150 W x 4)
Rated Power Output (+B = 14.4 V)
Normal (4 s2) (20 Hz - 20 kHz, 0.08 % THD) ....... 50 w x 4
Normal (4 9) (DIN :45324, +B =14.4V) .............. 50 w x 4
Normal (2 s2) (1 kHz, 0.8 % THD) ...... 75 w x 4
Bridged (4 s2) (1 kHz, 0.8 rVi, THD) 180 w x 2
Frequency Response (+0, -3 dB).. ..... 5 Hz - 50 kHz
Sensitivity (rated output) ....................... 0.2 V - 5.0 V
Input Impedance ....... 10 kg
Signal to Noise Ratio... .. 100 dB
Low Pass Filter Frequency (-12 dB/oct.)
......................................................... 50 - 200 Hz (variable)
High Pass Filter Frequency (-12 dB/oct.)
......................................................... 50 - 200 Hz (variable)
Bass Boost Circuit (40 H2) (B channel) .................. 0/ +18 dB
General
Operating Voltage ...................... 14.4 V (11 - 16 V allowable)
Current Consumption ..................................................... 40 A
Installation Size (w x H x D)
280 x 59 x 238 mm (11 x 2-5/16 x 9-3/8 inch)
2.8 kg (6.2 lbs)
KAC-8404 M
Audio Section
Max Power Output .................................... 600 W (150 W x 4)
Rated Power Output (+B = 14.4 V)
Normal (4 E2) (20 Hz - 20 kHz, 0.08 °/o THD). 50 W x 4
Normal (2 o) (1 kHz, 0.8 =/.. THD) .................. 75 w x 4
Bridged (4 s2) (1 kHz, 0.8 17/0 THD) ........ 180 w x 2
Frequency Response (+0, -3 dB) ........ .. 5 Hz - 50 kHz
Sensitivity (rated output). 0.2 V - 5.0 V
Input Impedance ........................ 10 kg}
Signal to Noise Ratio .................................................. 100 dB
Low Pass Filter Frequency (-12 dB/oct.)
......................................................... 50 - 200 Hz (variable)
High Pass Filter Frequency (-12 dB/oct.)
......................................................... 50 - 200 Hz (variable)
Bass Boost Circuit (40 Hz) (B channel) .................. 0/ +18 dB
General
Operating Voltage. .144 V (11 - 16 V allowable)
Current Consumption .. ...................................... 40 A
Installation Size (W x H x D). .280 x 59 x 238 mm
Weight ......................................................... 2.8 kg
KENWOOD follows a policy of continuous advancements
in development. For this reason specifications may be
changed without notice.
INSTALLATION
KENWOOD follows a policy of continuous advancements
in development. For this reason specifications may be
changed without notice.
/ /// / 7 I \K \\_ E E
. E. E
r a §
@ KENWOOD @
(55 W
260.5mm
