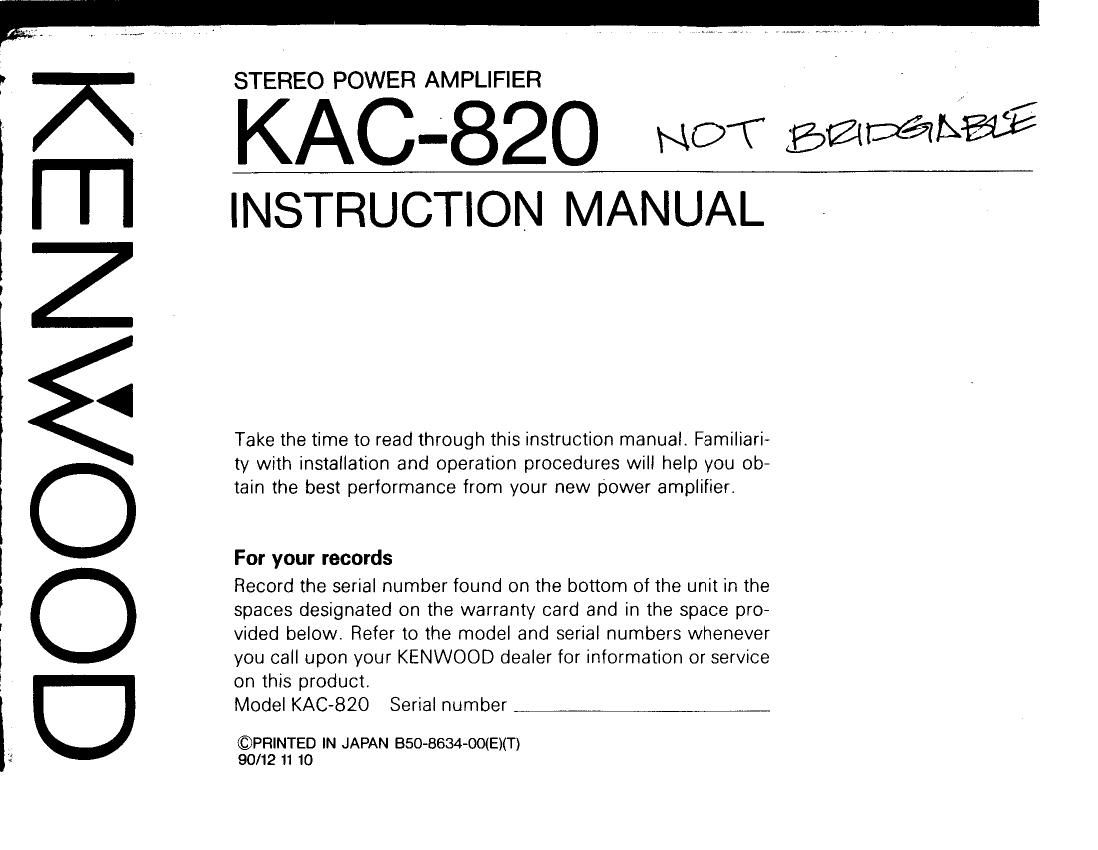

Page 1

'V

GOO/ANEDI

STEREO POWER AMPLIFIER

KAo-82o m BMW

INSTRUCTION MANUAL

Take the time to read through this instruction manual. Familiari-
ty with installation and operation procedures will help you ob-
tain the best performance from your new power amplifier.

For your records

Record the serial number found on the bottom of the unit in the
spaces designated on the warranty card and in the space pro-
vided below. Refer to the model and serial numbers whenever
you call upon your KENWOOD dealer for information or service
on this product.

Model KAC-820 Serial number

©PR|NTED IN JAPAN 850-8634-OOIE)(T)
90/12 11 10

Page 2

Installation

IWhen Installing to the car, Install the unit securely for safety drth.

0 Use screws supplied as accessories when installing the unit.
0 Insert spacers into the screw holes so that the prOJected edges of the spacers face toward the outside,
and fix them usrng tapping screws

0 Since the power amplifier has no parts which
requrre operation, it can be Installed at a posr
tron away from the driver's seat Without any
hinderances.

As generally accepted positions for its installa-
tion, places such as under the front seat or m-
Slde the trunk, etc. can be consrdered.

CAUTION
When making the hole,
do not damage the fuel
tank, brake tube, wir-
ing harnesses, etc. on
the other side.

0 Use the extension cables. CA718F (1 ml,
CA728F (2 ml, and CA-48F (4 ml (optional)
when the connected models are to be installed
away from the power amplifier.

0 Install the unit in a well»ventilated place and do
not place the (heavyl object on it.
