Kenwood KAC 8104 D Service Manual
This is the 18 pages manual for Kenwood KAC 8104 D Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Page: 1 / 18
Extracted text from Kenwood KAC 8104 D Service Manual (Ocr-read)
Page 1

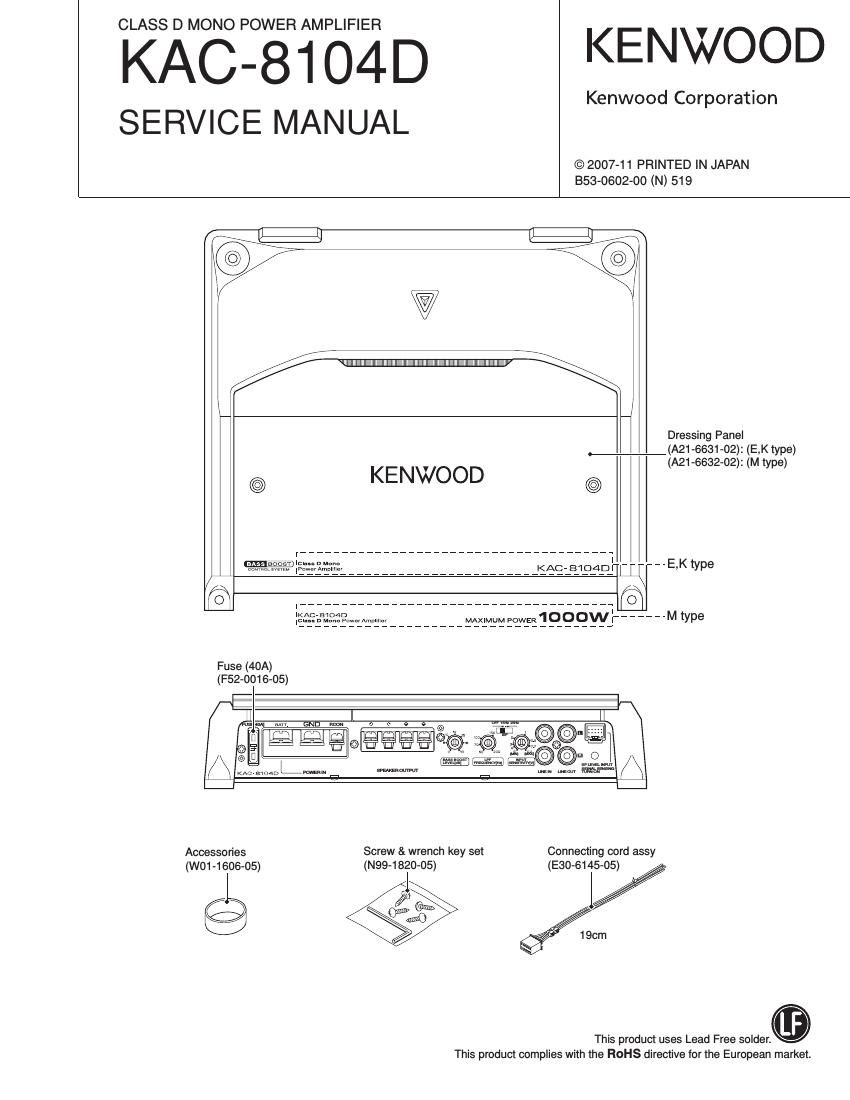

CLASS D MONO POWER AMPLIFIER
KAC-8104D
SERVICE MANUAL
KENWOOD
Kenwood Corporation
© 2007-11 PRINTED IN JAPAN
353-0602-00 (N) 519
@an
\/
Dressing Panel
(A21-6631-02): (E,K type)
(A21-6632-02): (M type)
"7E,Ktype
®
Fuse (40A)
(F52-0016-05)
END mm
I
/\ SMWEM.
Accessories
Screw & wrench key set
(W01-1606-05) (N99-1820-05)
I, p
@ Xe
Connecting cord assy
(E30-6145-05)
This product uses Lead Free maiden.
This product complies with the ROHS directive for the European market.
