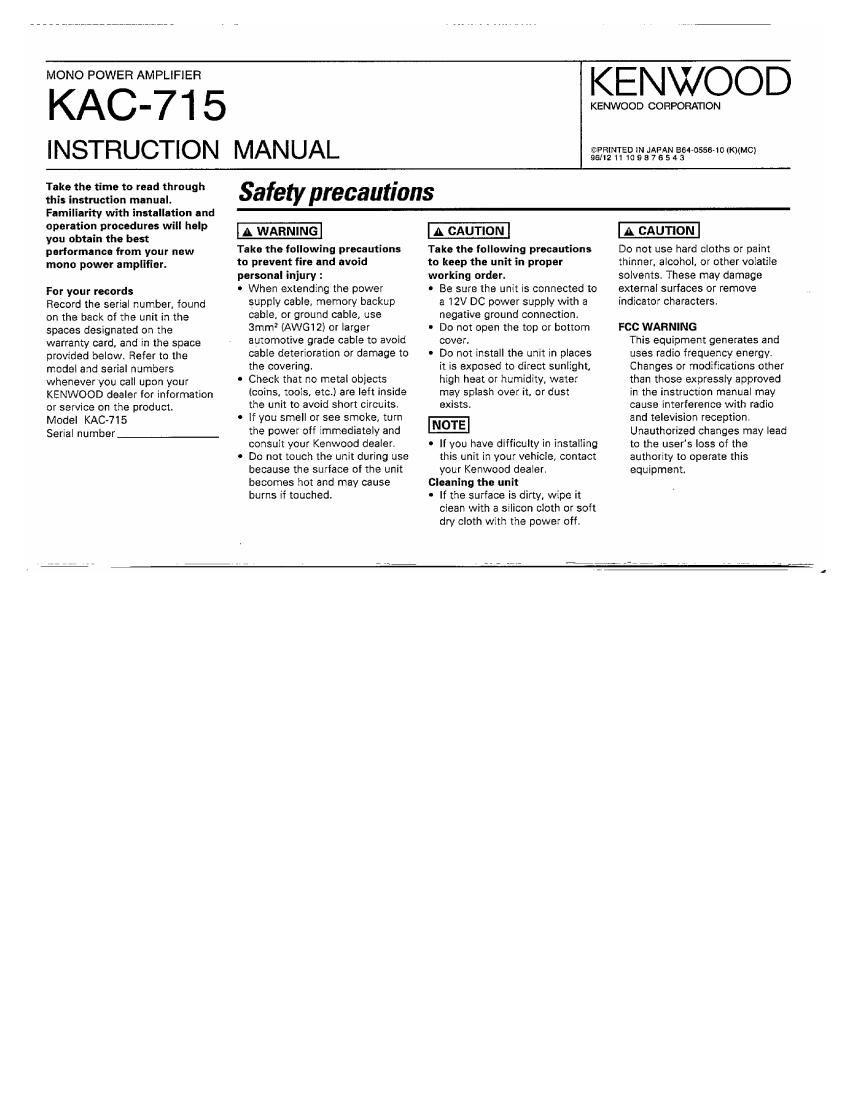

MONO POWER AMPLIFIER

KAC-715

INSTRUCTION MANUAL

KENWOOD

KENWOOD CORPORATION

@PHINTED lN JAPAN 564-05564!) lKNMC}
96/1211 toea75543

Take the time to read through
this Instruction manual.
Familiarity with installation and
operation procedures will help
you obtain the best
performance from your new
mono power amplifier.

For your records

Record the serial number, found
on the back of the unit in the
spaces designated on the
warranty card, and in the space
provided below. Refer to the
model and serial numbers
whenever you call upon your
KENWOOD dealer lor information
or service on the product.
Model KAC-7I 5

Serial number

Safety precautions

Take the following precautions
to prevent fire and avoid
personal injury 2

I When extending the power
supply cable, memory backup
cable. or ground cable, use
3mm2 (AWGlZ) or larger
automotive grade cable to avoid
cable deterioration or damage to
the covering.

- Check that no metal obiects
(coins, tools, etc.) are left inside
the unit to avoid short circuits.

- If you smell or see smoke, turn
the power off immediately and
consult your Kenwood dealer.

- Do not touch the unit during use
because the surface of the unit
becomes hot and may cause
burns if touched.

A CAUTION

Take the following precautions
to keep the unit in proper
working order.

- Be sure the unit is connected to
a l2V DC power supply with a
negative ground connection.

- Do not open the top or bottom
cover.

- Do not install the unit in places
it is exposed to direct sunlight,
high heat or humidity, water
may splash over it, or dust
exists.

0 If you have diificulty in installing
this unit in your vehicle, contact
your Kenwood dealer.

cleaning the unit

. If the surface is dirty, wipe it
clean with a Silicon cloth or soft
dry cloth with the power off.

A CAUTION

Do not use hard cloths or paint
thinner, alcohol, or other voiatile
solvents. These may damage
external surfaces or remove
indicator characters.

Fcc WARNING
This equipment generates and
uses radio frequency energy.
Changes or modifications other
than those expressly approved
in the instruction manual may
cause interference with radio
and television reception.
Unauthorized changes may lead
to the users loss of the
author-1y to operate this
equipment,

Page 2

Montage de I 'appareil

Specifications

II Installation

Vis taraudeuse
w A x 16mm)

Tableau d'installation, etc.
(épaisseur116mm ou plus)

A ATTENTION

Ne pas recouvnr \appareil dune nappe Iapis. etc; is chaleur qu saccumuiewlt
risque d'endommager IappareiL

I Emplacement

Comma "amplificateur pfnclpa ne nécesslte aucun régiage, il pourra ens
mstalié a racer: du sxégs du conduczeur

Les posxtions teHes que Iinterzeur du caffre a bagages som géneraiement
utllisées pour I'insvallatlan de i'amplmcateur prlnmpal.

A ATTENTION
- Instalie: cat apparexi a un empacenant tel que \a chaleur puisse se dissiper
aisement. Apres i'installation, ne piacer aucur obiet sur \anparei.
Apres instelation de iapparetl, sassurer que \es differents équlpments
éleutviques tels que lampes de frem. lampes de ieux de direcmon at essuier
glace fonmionnem normalemenl.

Fixer solgneusement Iappareii a un emplacement qul ne gene en Hen la conduitev

Las spéciflcations sont sujettes & modifications sans préavis.

Section audio

Puissance de sortie max. (4 Q) 200 W x 1

Puissance de sortie norminaie (4 m . 100 W X 1 (30 Hz ~ 200 H2.
0108%)

Puissance de sunie nominale (2 Q) ......... 150 W X 1 (100 Hz, 03%
D.H.T)

1 ~ 200 Hz

100 dB

0115 V (puissance nominaie)
0V (puissance nominale}

Réponse en fréquence (-3 dB)

Rapport signai/bru'

Sensibilhé [MaxJ
(MmJ

Impédance d'emrée 10 m

Fameur d'amonissement (100 Hz) Pius de 100

Frequenoe du filtre passe-has [18 dB/oct) . .30 Hz ~ 200 Hz (Variable)

Générales

Tension de fonctionnement..i 14,4V (11 ~16 V possibles)

Consummation (100 Hz, 10%) , 16A

Dimensions (I x h x p] ......................... 280 x 50 X 170 mm
[11x1715/16 X 6711/16 in)

Poxds .......... ...2,3 kg (5,1 lb)
