Kenwood KAC 646 Service Manual
This is the 15 pages manual for Kenwood KAC 646 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Page: 1 / 15
Extracted text from Kenwood KAC 646 Service Manual (Ocr-read)
Page 1

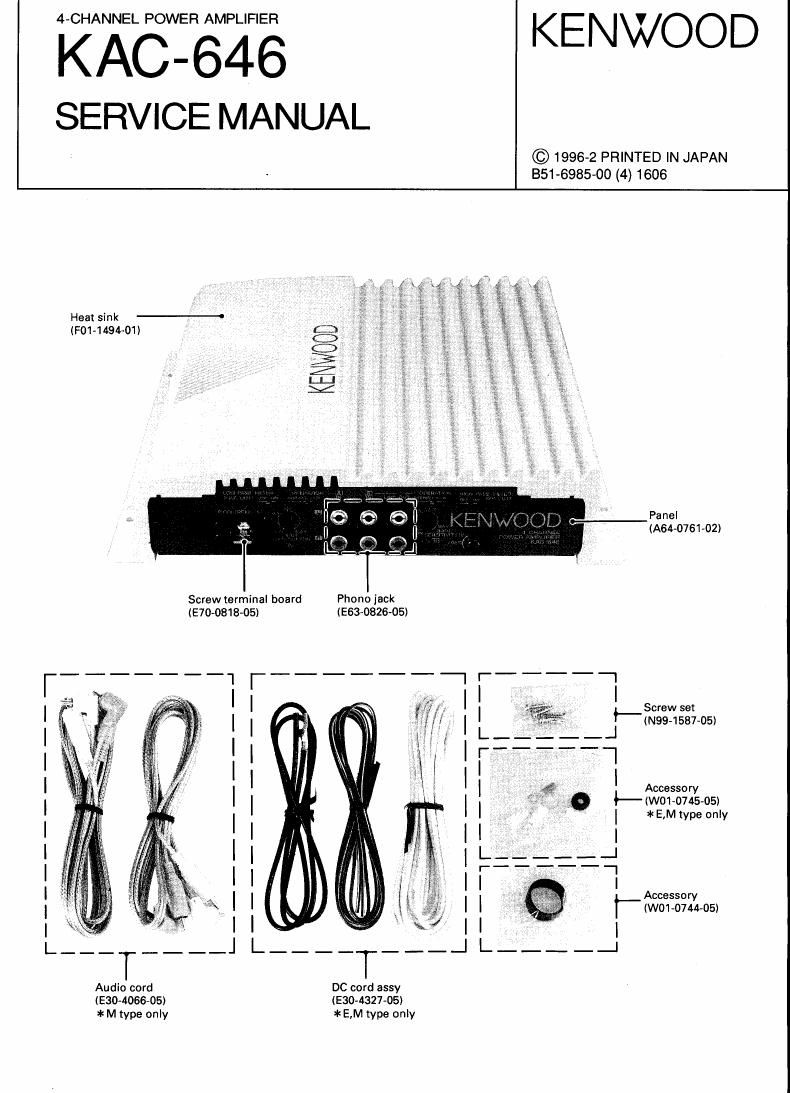

SERVICE MANUAL
© 1996-2 PRINTED IN JAPAN
351-6985-00 (4) 1606
Heat sink ---.,-o _
(F01-1 494-01)
Panel
(A640761-02)
Screw terminal board Phono jack
(E70-0818-05) (E63'0826v05)
I Screw set
J (N99-1587-05)
I Accessory
+- (W01-0745-05)
* E,M type only
Accesso ry
(W01-0744-05)
Audio cord DC cord assy
(E30-4066-05) (E30-4327-05)
* M type only * E,M type onIy
