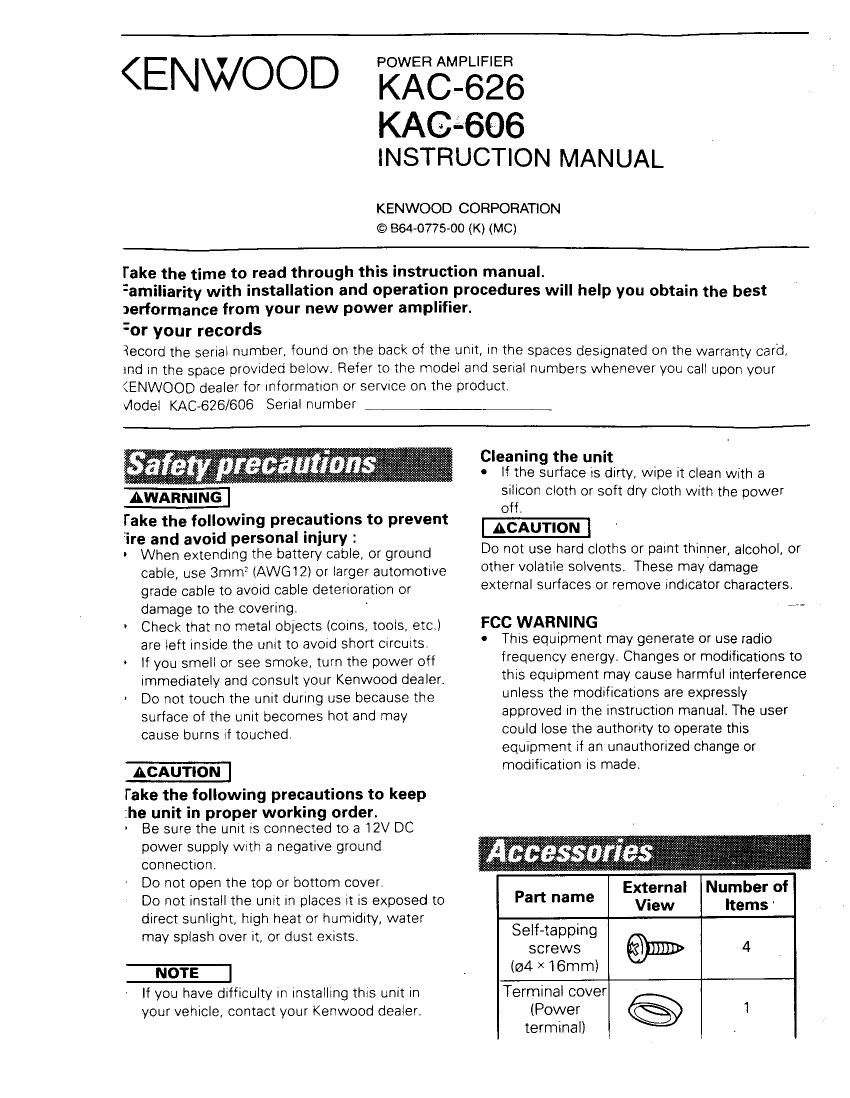

Page 1

(ENWOOD EVKEMféFEFé
KAGBOS
INSTRUCTION MANUAL

KENWOOD CORPORATION
© 864-0775-00 (K) (MC)

lake the time to read through this instruction manual.

=ami|iarity with installation and operation procedures will help you obtain the best
)erformance from your new power amplifier.

=or your records

Record the serial number, found on the back of the unit, In the spaces deSIgnated on the warranty card,
ind In the space provided below. Refer to the model and serial numbers whenever you call upon your
(ENWOOD dealer fOr Information or serVIce on the product.

vlodel KAC-626/606 Serial number

Cleaning the unit
0 If the surface is dirty, wipe it Clean with a

AWARNING I silicon cloth or soft dry cloth with the power
fake the following precautions to prevent
iire and avoid personal injury : .
' When extending the battery cable, or ground DO 0 use hard cm or paint thinner; alcohol, or
cable, use 3mm2 (AWGiZ) or larger automotIve other volatile SOVemi These may damage
grade cable to avoid cable deterioration or external surfaces or remove indIcator characters
damage to the covering. m-
' Check that no metal objects (coms, tools, etc.) FCC WARNING
are left inside the unit to aVOId short CIrCUIts. ' This equment may generate or use radio
~ It you smell or see smoke, turn the power off frequency energy. Changes or modifications to
immediately and Consult your Kenwood dealer_ this equment may cause harmful interference
' Do not touch the unit during use because the unless the modifications are GXPTGSSW
surface of the unit becomes hot and may approved In the instruction manual. The user
cause burns if touched. could lose the authority to operate this

equipment if an unauthorized change or

ACAUTION I modification is made.

Take the following precautions to keep

:he unit in proper working order.
. Be sure the unit is connected to a 12V DC

power supply With a negative ground

connection.
30 not open Ithe top or bottom cover. Part name External Number of
.0 not metal the unit In places it is exposed to View Items .
direct sunlight, high heat or humidity, water _
may splash over it, or dust exists. Self-tapping
screws 4
NOTE I , (04 X16mm)

If you have difficulty In installing this unit in Terminal cover

your vehicle, contact your Kenwood dealer. (Power 1

terminal)

Page 2

00,11,015 '

Operations of the folloWing control and switches are required in accordance with the center

unit and speakers connected with this unit.
(D RCA CABLE GROUND LEAD terminal
® FILTER switch

These switches allow filtering of the speaker output signals.

0 HPF (High Pass Filter) position (KAc-GZG only)

Only frequencies of 150 Hz or higher are output. (Frequencies below 150 Hz are cut.)

-' LPF (Low Pass Filter) Position

Only frequencies of 80 Hz or lower are output. (FrequenCIes above 80 Hz are cut.)

0 OFF position
The original sound without filtering is output,

@ OPERATION switch

This switch allows to select the amplification method of input signals.

. STEREO position

The input left and right signals are amplified separately. Use this position when the unit is as a

stereo amplifier.
0 L+R position (KAC-SZG only)

The input left and right signals are combined before being amplified. Use this position when the unit
is used for subwoofer speakers or the L+R (monaural) sound is required.

' MONO (Lch) position

Amplifies the signal input from the left side only. Set to this position and make bridged connections
to use as a high-power monaural amplifier. (The input right Signal is not output.)

® INPUT SENSITIVITY control
Set this control according to.the pre-output level

of the center unit connected with this unit, or to
the maximum power output of the genuine-
accessory car stereo.

For the pre-output level or the maXimum power
output, refer to the "Specifications" in the
instruction manual of the center unit.

6) LINE IN terminal
© SPEAKER LEVEL INPUT terminal

Maximum power Center unit Amplifier input
output of genume . . .
accessory car stereo. preout level senSitiVity
300 mV MAX (015 V)
10W 800~1000 mV 0.3V
)5 W l .5 V 0.5 V
25W 2~4V 1.0 V~MlN

2 English
