Kenwood KA 994 Owners Manual

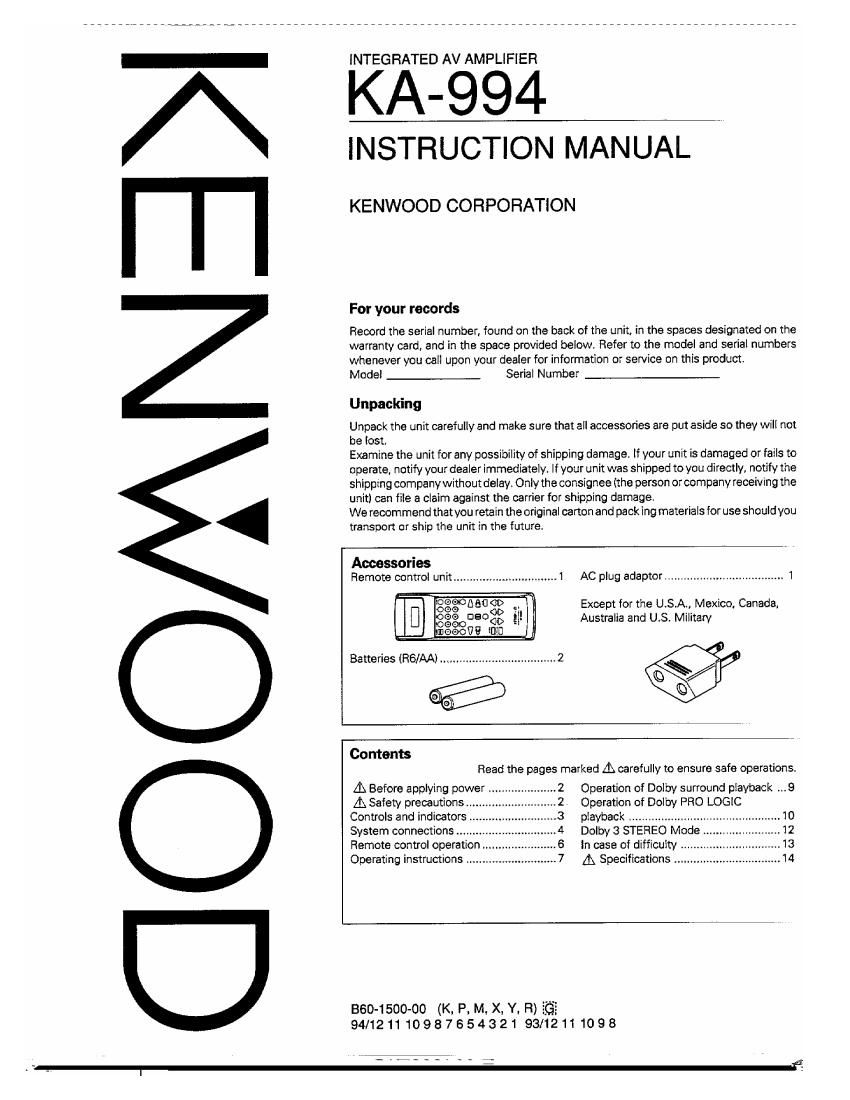

Page 1

INTEGRATED AV AMPLIFIER

KA-994

INSTRUCTION MANUAL

KENWOODCORPORANON

For your records

Record the serial number, found on the back of the unit, in the spaces designated on the
warranty card, and in the space provided below. Refer to the model and serial numbers
whenever you call upon your dealer for information or service on this product.

Model Serial Number

Unpacking

Unpack the unit carefully and make sure that all accessories are put aside so they will not
be lost.

Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to
operate. notify your dealer immediately. if your unit was shipped to you directly, notify the
shippmgcompany without delay. Only the consignee (the person or company receivmgthe
unit) can file a claim against the carrier for shipping damage.

We recommend thatyou retain the original carton and packing materials for use should you
transport or ship the unit in the future.

Accessories
Remote control uniti AC plug adaptor ..................................... 1

assuming
D 066 DEOGD .l'

88%W lflifl

Except for the U.S.A.. Mexico, Canada.
Australia and US. Military

Batteries (RB/AA)

Contents

Read the pages marked A carefully to ensure safe operations.
A Before applying power ..................... 2 Operation of Dolby surround playback ,9
A Safety precautions. .. 2 Operation of Dolby PRO LOGIC
Controls and indicators. playback
System connections .. Dolby 3 STEREO Mode
Remote control operation. in case of difficulty .

Operating instructions ,. ..7 A; Specifications

eeo-isoo-oo (K. P, M. X. Y. R) ..G.:
94/12111098765432193112111098

Page 2

. l»
SEBGIaI feature L'_\ Cautlon: Read this page carefully to ensure safe operation.

DOLBY SURROUND PRO LOGIC : This function allows to enjoy a similar Dolby Surround effect to movie theaters from video
software programs carrying the D_ mark.

DOLBY 3 STEREO

:The Dolby 3 STEREO provides an active center channel to produce a better, stable center

image. This mode can be used when listening to stereo video program and music or when
surround listening or surround system setup is not possible.

Remote control unit

Before applying power

: The remote control unit is provided with this unit.

Units are designed for operations as follows.

U.S.A., Mexico and Canada ............................ 120 V only
U.K. and Australia ........ 240 V only
Europe [Except for U.K.) 230 V only
Other ceuntrlas ........... . 1 10-120/220l230-240 V switch

For the United Kingdom
Factory fitted moulded mains plug

1. The mains plug contains a fuse. For replacement, use only
a 13-Amp ASTA-approved (BS1362) fuse.

2. The fuse cover must be refitted when replacing the fuse in
moulded plug.

3. Do not cut off the mains plug from this eoutpement. If the

plug fitted is not suitable for the power points in your home
or the cable is too short to reach a power point, then obtain
an appropriate safety approved extension lead or adaptor,
or consult your dealer.
If nonetheless the mains plug is cut off, remove the fuse
and dispose of the plug immediately, to avoid a possible
shock hazard by inadvertent connection to the mains
supply.

AC voltage selection

This unit operates on 110 - 120 /220/ 230 - 240 volts AC. The
AC voltage selector switch on the rear panel is set to the
voltage that prevails in the area to which the unit is shipped.
Before connecting the power cord to your AC outlet, make
sure that the setting position of this switch matches your line
voltage. If not, it must be set to your voltage in accordance
with the following direction. , ,,

AC voltage selector switch

Acmv- Acmmw

Acnmwv- Mme

my
unv~"mv~

Move switch lever to match your line voltage with
a small screwdriver or other pointed tool.

Note:

Ourwarrantydoes not coverdamage caused byexcessiveline
voltage due to improper setting of the AC voltage selector
switch.

Safety precautions

WARNING:TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

PERSONS.

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EOUILATERAL
TRIANGLEISINTENDED TO ALERTTHE USER TO THE PRESENCE OF.UNINSULATED
DANGEROUS VOLTAGE" WITHIN THE PRODUCTS ENCLOSURE THAT MAY BE OF
SUFFICIENT MAGNITUDE T0 CONSTITUTE A RISK OF ELECTRIC SHOCK TO

THE APPLIANCE.

THE EXCLAMATION POINT WITHlN AN EOUILATERAL TRIANGLE IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND
MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING

2 lat-994 IEn)
