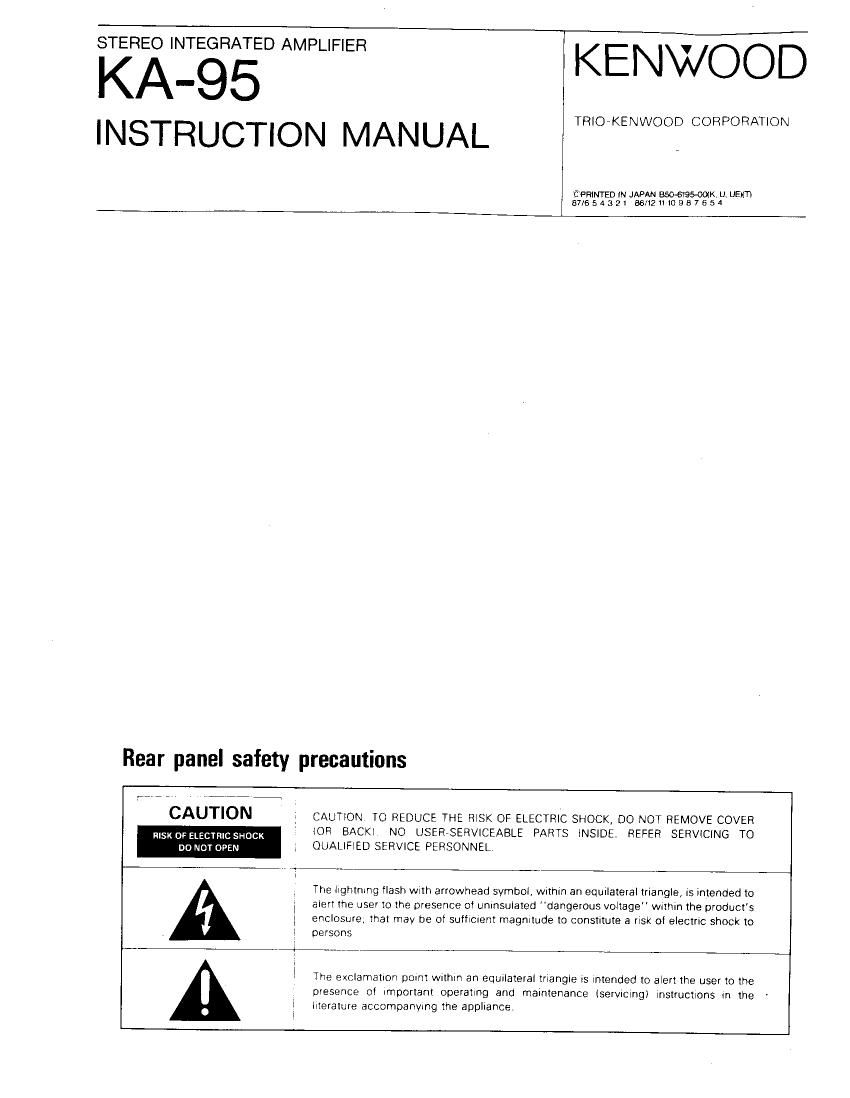

KA-95 KENWOOD

TRIOKENWOOD CORPORATION

INSTRUCTION MANUAL

EFRINTED IN JAPAN B50-6195-OOIK U, UEKTI
87/65432186/121110957654

Rear panel safety precautions

CAUTION 1 CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
SK mammcsmcx IOR BACK) NO USERESERVICEABLE PARTS INSIDE. REFER SERVICING TO
DONOTOPEN I QUALIFIED SERVICE PERSONNEL

The Irghtnrng flash WIth arrowhead symbol, wrthln an equrlateral triangle, IS Intended to
I alert the user to the presence 01 unrnsulated "dangerous VOItage WIthIn the product's
I enclosure, that may be of suffICIent magnItude to constitute a rIsk of electnc shock to
persons

The exclamatlon pornt wrthxn an equrlateral trIangIe IS Intended tO aIert the user to the
presence of Important Operatrng and maintenance IserVICIngI InstructIons In the
I Irterature accompanyIng the appllance,

Page 2

For your records

Record the serial number, found on the back of the
unit, in the spaces destgnated on the warranty card,
and in the space provided below. Refer to the model
and serial numbers whenever you call upon your dealer
for information or serVice on this product.

Model - Serial Number

Unpacking

Unpack the unit carefully and make sure that all ac-
cessories are put aside so they will not be lost,
Examine the unit for any possibility of shipping
damage. If your unit is damaged or fails to operate,
notify your dealer immediately. If your unit was shipped
to yOu directly, notify the Shipping company without
delay Only the consignee lthe person or company
receiving the unit) can file a claim against the carrier for
shipping damage

We recommend that you retain the original carton and
packing materials for use should you transport or ship
the unit in the future.

Important!

U.S.A., Canada, UK. and Europe
Units shipped to the U S A and Canada are
dCSigned for operation on 120 volts AC only,
i Units shipped to European countries are desrgned
for operation on 220 volts AC only Units shipped
to the U K are deSigned for operation on 240
volts AC only These units are not equtpped With
an AC voltage selector swrtch and the discusswn
of such a swnch that follows should be disregard-
ed
All other countries
Units shipped to countries other than the U.S.A.,
i Canada, U K and Europe are equtpped with an
AC voltage selector swttch on the rear panel
Reler to the lollowrng paragraph for the proper
setting ol this swttch

Before applying power

AC voltage selection

This unit operates on 110 i 220 or 220 ~ 240
volts AC The AC voltage selector swttch on the rear
panel is set to the voltage that prevails in the area to
which the unit is shipped Before connecting the power
cord to your AC outlet, make sure that the setting pOSi-
tion of this swttch matches your line voltage If not, it
must be set to your voltage in accordance With the
followmg direction.

Note:
Our warranty does not cover damage caused by excessive lirie
voltage due to improper setting 0! the AC voltage selector swuch

AC 110A120V~<>AC 2207240V~ AC 110-120V~<>AC 220~240V~

Switch lever

Thls shows switch
lever locked In the
220 7 240 v~ post-
(Ion,

This shows switch
lever locked In the
110 7120Vx posi
tion.

Move switch lever to match your line
voltage with a small screwdriver or other
pointed tool.

AC voltage selector switch

For United Kingdom
The mains plug must be removed from the wall socket
prior to any internal examination

Important
The Wires in this mains lead are coloured in accordance

With the followmg code
Blue .. ...... . . Neutral
Live

Brown

The Wires in this mains lead must be connected to the
terminals in the plug as follows

Wire colour Plug terminal marking
Blue ..... .. . . .. N or Black
Brown. ............ . . LorRed

Brown to '
LIVE

Blue ll!
Neutral

my fi-oi

Notes:

I) lf 6 13ramp plug is used, this must be fitted With a Bramp
Iuse

Zl Ila 3-piri plug With earthirig contact is used, no Wire must
be connected to the E terminal

WARNING:

TO PREVENT FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS AP-
PLIANCE TO RAIN OR MOISTURE.
