Kenwood KA 907 Owners Manual

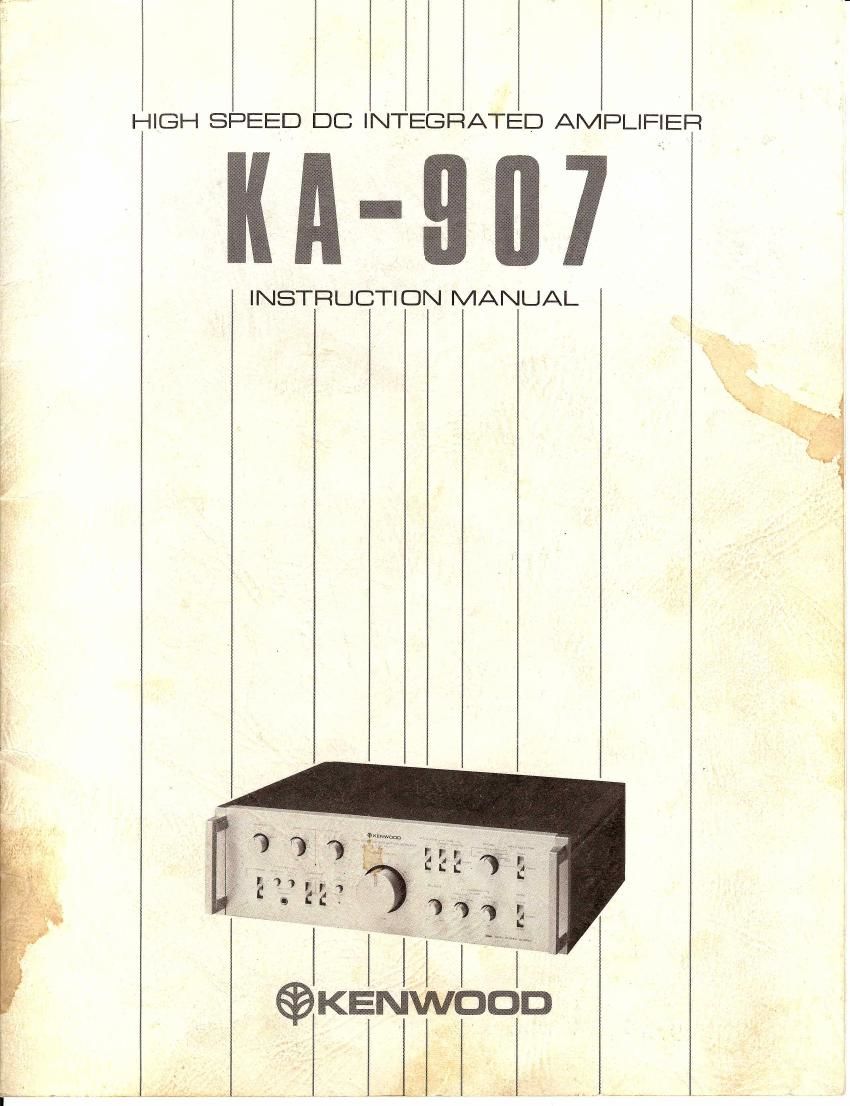

Page 1

I I
I

I
HIGH SPEED DC INTEGRATED AMPLIFIER

INSTRUCTION MANUAL

V_, V,_.._ 7' Mr, W"

Page 2

INTRODUCTION

The purpose of this manual is to acquaint you
with the operating features of your new amplifier.
You will notice that in every detail of planning,
engineering, styling, operating convenience, and
adaptability, we have sought to anticipate your
needs and desires.

We suggest that you read this manual carefully.
Knowing how to set up your amplifier to the best ad-
vantage will enhance your listening pleasure right
from the start. You will also become aware of the
ease with which you can adjust your amplifier to
meet your special requirements.

FOR YOUR RECORDS

Record the serial number, found on the back of
the unit, in the spaces designated on the warranty
card, and in the space provided below. Refer to the
model and serial numbers whenever you call upon
your Kenwood dealer for information or service on
this product.

Model KA-907 Serial number

AFTER UNPACKING

After unpacking, we recommend you inspect and
examine the unit for any possible shipping damage.
If your unit is damaged or fails to operate, notify your
dealer immediately. If your unit was shipped to you
directly, notify the shipping company without delay.
Only the consignee (the person or company receiv-
ing the unit) can file a claim against the carrier for
shipping damage.

We recommend that you retain the original car-
ton and packing materials to prevent any damage
should you transport or ship your unit in the future.

INSTALLATION PRECAUTIONS

al Avoid locations subject to direct sunlight.

bl Avoid high or low temperature extremes.

c) Keep the unit away from heat radiating sources.

d) Choose a location that is relatively free of vibra-
tion or excessive dust.

e) Make sure power is off before making any system
connections.

WARNING:

TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.

2 KA»907lKl

AC VOLTAGE SELECTION

This unit operates on 1 10-120 volts or 220-240
volts AC.The AC Voltage Selector Switches on the
bottom plate is set to the voltage that prevails in the
area to which the unit is shipped. Before connecting
the power cord to your AC outlet, make sure that the
setting position of these switches match your line
voltage. If not, it must be set to your voltage in ac-
cordance with the following direction.

Note:
Our warranty does not cover damage caused by excessive line

voltage due to improper setting of the AC Voltage Selector
Switch.

llO-lZOVN {>220-240VN 110-120VV (b2207240Vm

This shows switch
levers locked in the
220-240VN
position.

other pointed tool.

Move switch levers to match your line
voltage with a small screw driver or

AC VOLTAGE SELECTOR SWITCH

This shows switch
levers locked in the
110-120VN
position.
