Kenwood KA 660 Service Manual

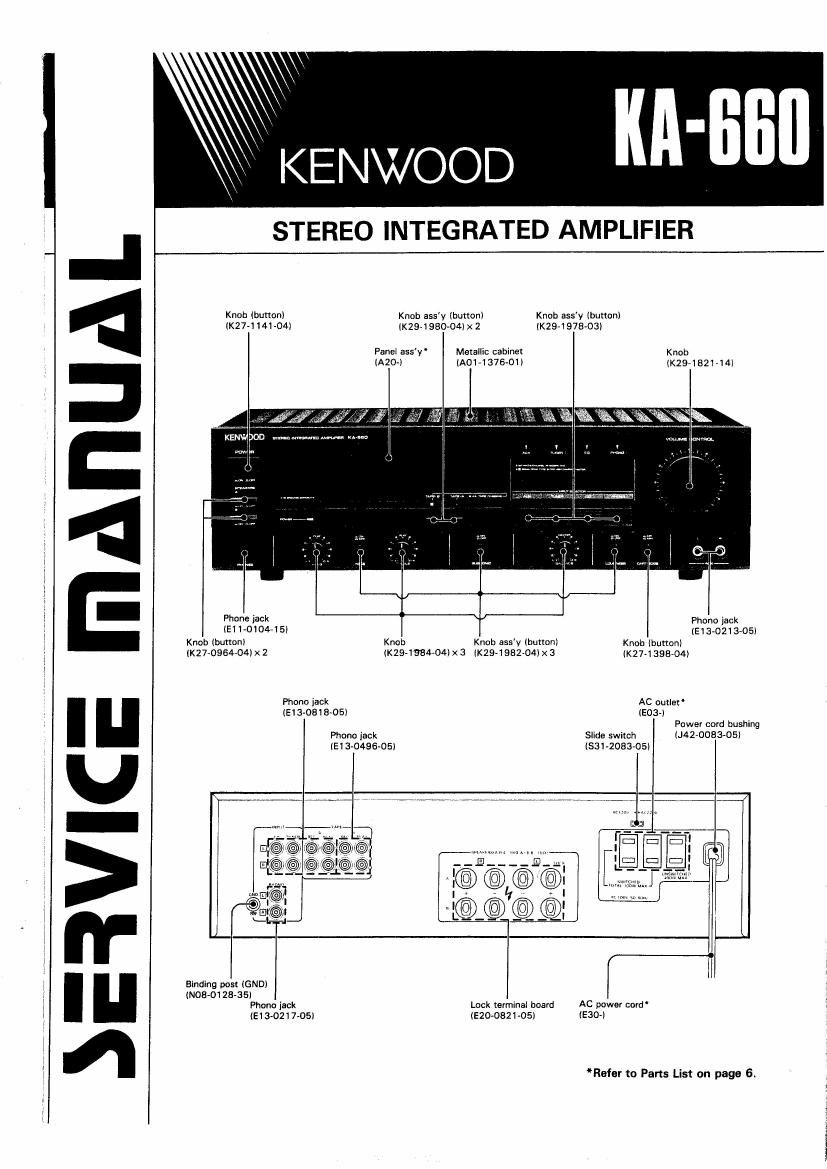

This is the 17 pages manual for Kenwood KA 660 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KA 660 Service Manual (Ocr-read)
Page 2
DISASSEMBLY FOB REPAIR
REPLACEMENT 0F PARTS 0N AUDIO UNIT
1. Remove 2 screws at the chassis Fl (unified with the bot-
tom plate) (0) and 3 screws at the rear panel (0).
FLAT CABLE
2, Remove 6 screws at the bottom plate (0).
3. Slide and remove the bottom plate as shown by the ar-
row, being aware that parallel flat cable is sandwiched by
pc boards (0L
REPLACEMENT OF PARTS 0N MAIN AMP UNIT
4. Pull off BASS, TREBLE and BALANCE knobs (0).
Remove 3 screws at the top of the panel assy (9).
5. Remove 4 screws at the sides of the chassis, 2 on each
side, (0) and 3 screws at the bottom side of the panel
assy (0 )t
