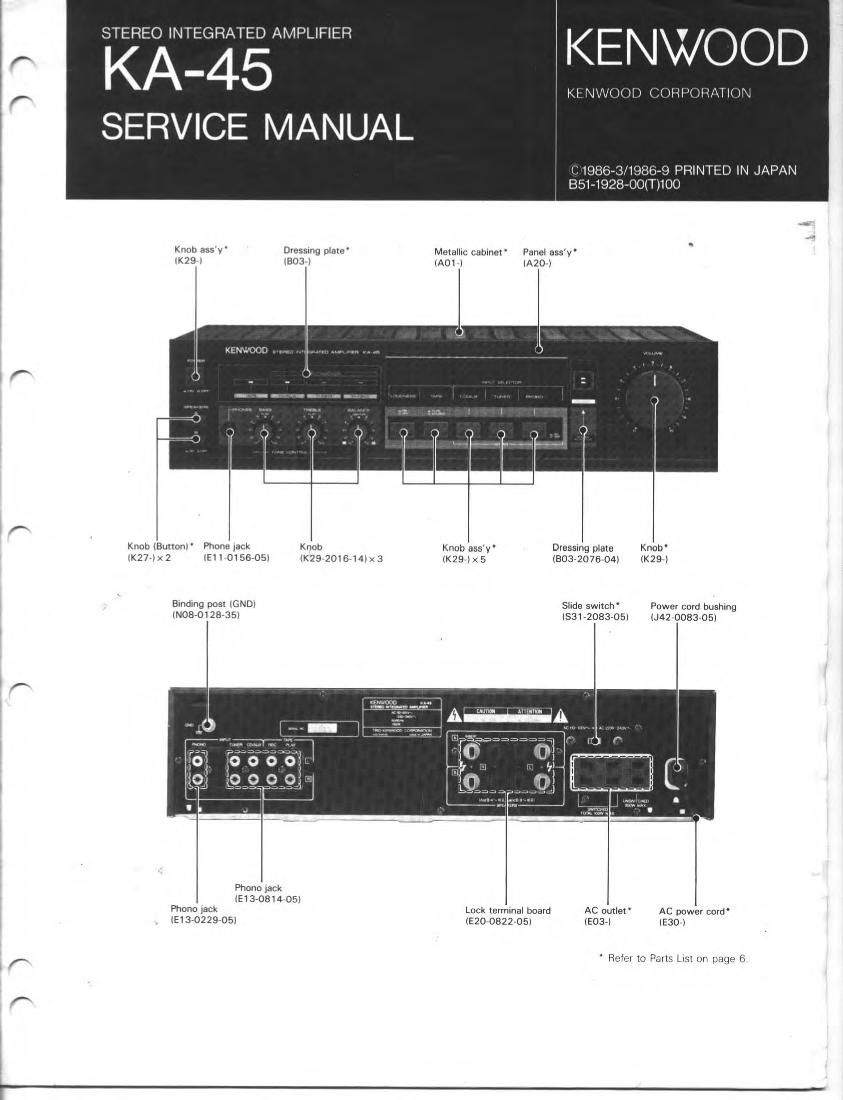

Kenwood KA 45 Service Manual
This is the 16 pages manual for Kenwood KA 45 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KA 45 Service Manual (Ocr-read)
Page 2
6.
DISASSEMBLY FDR REPAIR
Remove the metallic case and remove 6 screws retaining
the panel assembly to l.
Remove the panel assembly and remove 2 screws at the
ends of the sub panel I o ). Unwrap the ground leads
from the chassis l 0 ).
(Non) Whulchocklnglhopcbolrd,mmmflbom,
Remove 3 screws at phono packs and 2 screws at
speaker terminal ( o, 0 ll
Remove 4 screws retaining the mounting hardware from
the bottom (0 ii
Turn the sub panel with the pc board as shown bv the ar
row and put the rear sude of the pc board on the rear
panel (0 ). Now components on the on board can be
replaced
For replacement of the power transistors, use a hex,
wrench lW05-0022-00l ( 0 ).
