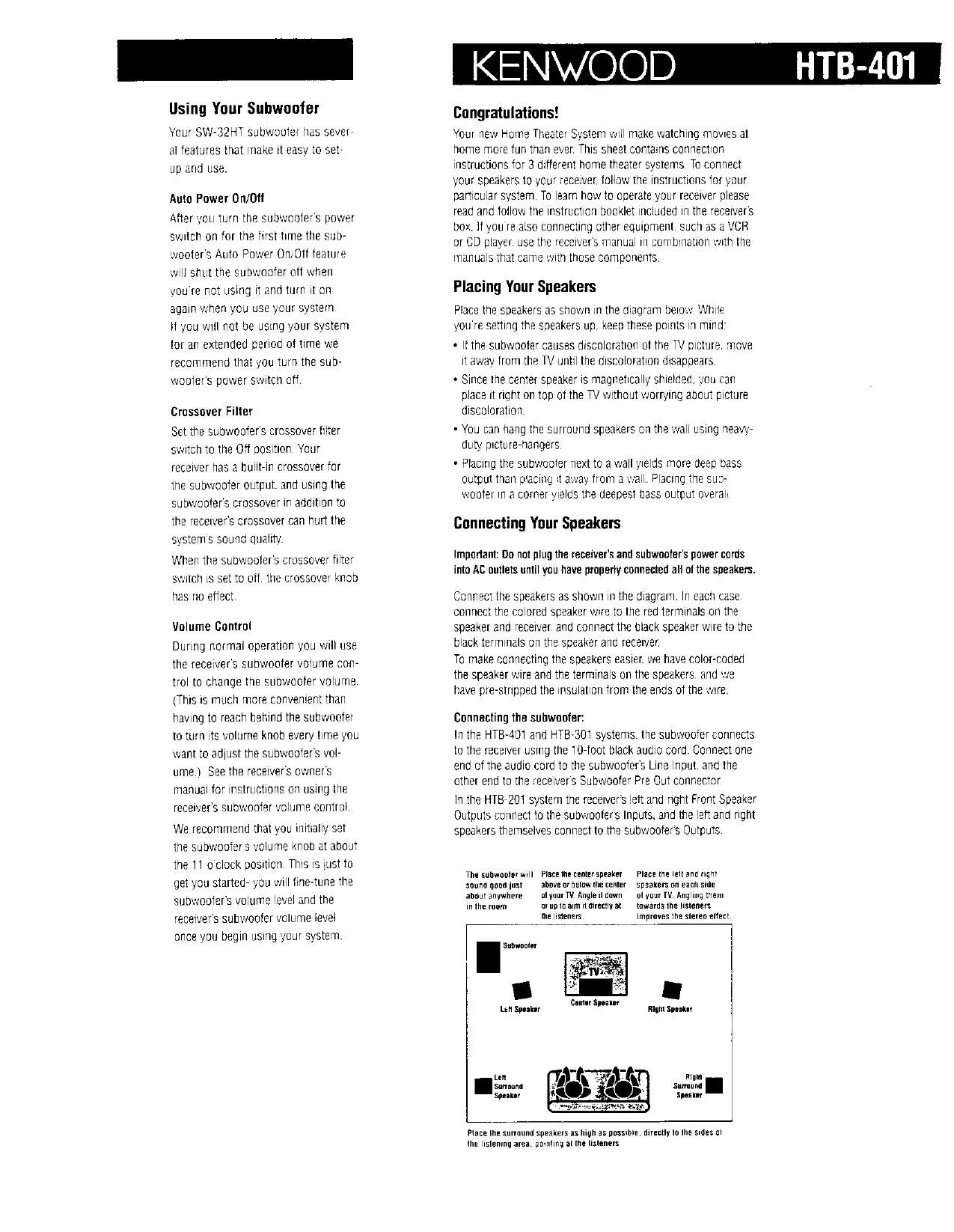

Page 1

Using Your Subwonfer

Your SW-32HT suowooter has severe
al features that make tt easy to set
up and use.

Auto Power Orr/Oil

After you turn the suowooter's power
swrtch on for the tirst time the sub-
wooler 5 Auto Power 0n, 0" teature
Will shut the subwooter otl when
you're not usan it and turn it on
again when you use your system

ll you Will not be ustng your system
tor an extended period of time we
recommend that you turn the sub-
wooters power swrtch ott

Crossover Filter

Set the suhwooters crossover tilter
svvitch to the Off position Your
receiver has a burltrin crossover tor
the suowooter output, and using the
suowooters crossover ll'l addition to
the receivers crossover can hurt the
system 5 sound quatrty.

When the subwooter's crossover tilter
swttch lS set to ottr the crossover knob
has no effect

Volume Control

Durlng normal operation you will use
the receiver's suowooter volume con-
trol to change the suowooler volume.
[This Is much more convenient than
haying to reach behind the suowootei
to turn its volume knob every time you
want to adjust the subwooters vol-
umes) See the receiver's owner's
manual for instructions on usrng the
receiver's suowooter volume controlv
We recommend that you initially set
the subwooters volume knoo at about
the tt o clock posrtion This Is lost to
get you started- you Will tine-tune the
subwooter's volume level and the
receivers subirvooter volume level
once you begin usrng your system

KENWOOD HTB 401

Congratulations!

Your new Home Theater System will make watching movies at
home more tun than ever, This sheet contains connection
instructions for 3 ditterent home theater systems To connect
your speakers to your receiver. tollow the instructlons tor your
particular system To learn how to operate your receiver please
read and follow the instruction booklet included In the receiver's
box. it you re also connecting other equipment such as a VCR
or CD player use the receiver's manual in combination With the
manuals that came with those components

Placing Your Speakers

Place the speakers as shown in the diagram below While
you're setting the speakers up, keep these points in mind'

- lt the supwooter causes discoloration oi the TV picture move
it away from the TV until the discoloration disappears

- Since the center speaker is magnetically shielded you can
place it right on top of the TV Without worrying about picture
discoloration

- You can hang the surround speakers on the wall uSing heavy
duty picturerhangers

- Placrng the suowooter next to a wall yields more deep bass
output than placrng it away trom a wad. Placrng the SUD-
wooter in a corner yields the deepest pass output overalr

Connecting Your Speakers

Imponant: Do not plug the receiver's and suhwooters power cords
into AC outlets until you have properly connected all at the speakers.

Connect the speakers as shown in the diagram ln each case
connect the colored speaker wtre to the red terminals on the
speaker and receiver and connect the black speaker Wire to the
black terminals on the speaker and receiver

To make connecting the speakers easier. we have color-coded
the speaker wrre and the terminals on the speakers and we
have ore-stripped the insulation trom the ends of the wrre.

Connecting the suhwooler:

In the HTB-4m and HTB~301 systems. the subwooter connects
to the receiver usrng the lO-toot black audio cord. Connect one
end of the audio cord to the subwooters Line lnput. and the
other end to the receivers Suowooter Pre Out connector

in the HTBVQOT system the receiver's left and right Front Speaker
Outputs connect to the subwoofers Inputs, and the left and right
speakers themselves connect to the suowooters Outputs.

The summer wrii Place rue centerspeakel Place are let! am right
souno oouo iusl ahove or neiow me eerrrer speakers on each sroe
about anywhere otyourW Angleildown at your rv Angling them
rrr the mom or unto aim directly at iowzms the listeners

In: listeners improves the slereo ellect
I Suawoollr

I Cont-r Sir-nor

Lall Spook-r niom Sum-r

niom
surrouno
Spun:

Piaee irre surround speakers as men as possible orreeuy In the Side: or
me irsierrrrrq area. nnlnlmq ai the listeners
