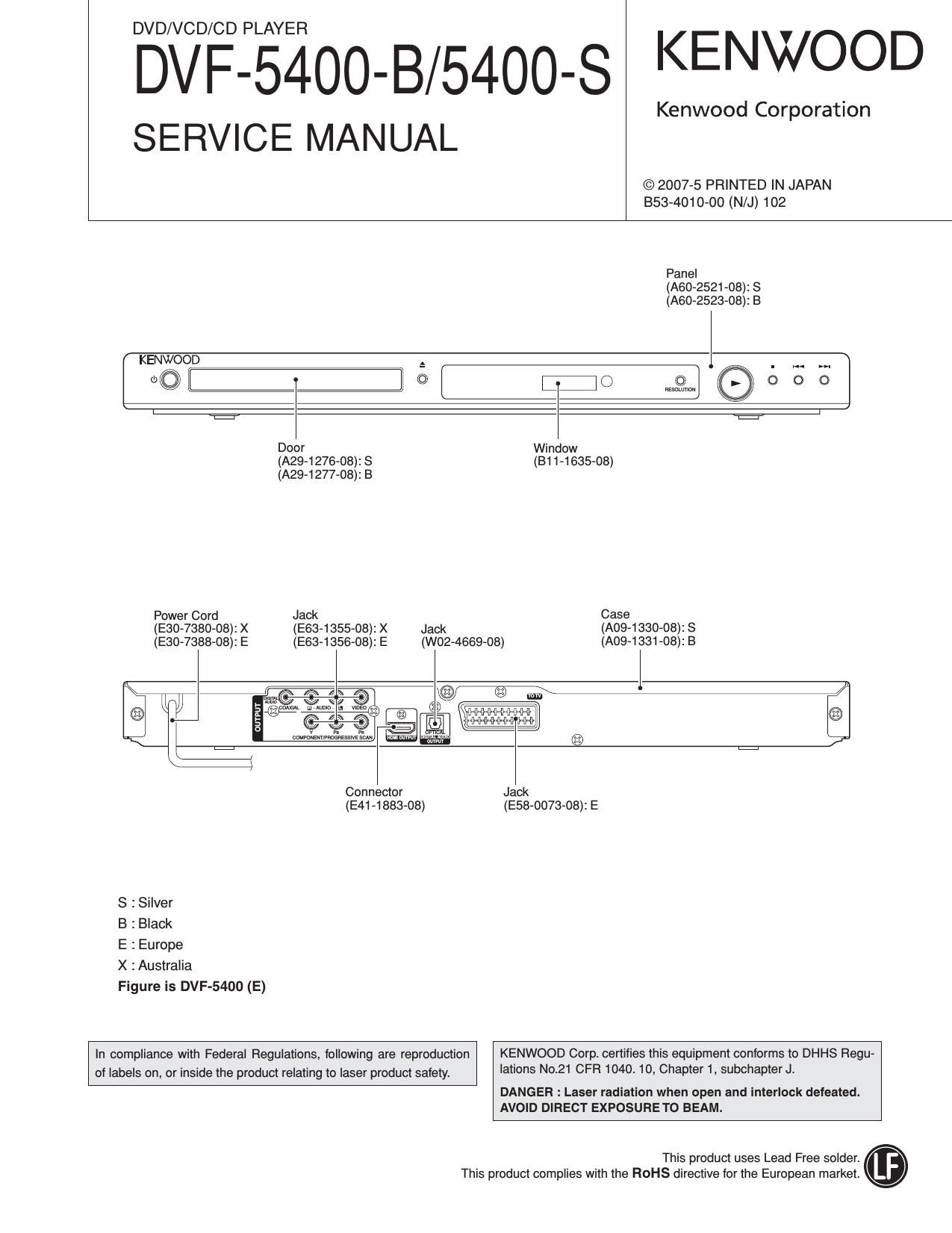

iiiibfifgiioo-B/Moo-s KENWOOD

Kenwood Corporation
SERVICE MANUAL

© 2007-5 PRINTED IN JAPAN
853-4010-00 (N/J) 102

Panel
(A60-2521-08): s
(A60-2523-08): B

nimumm

Door Window
(A29-1276-08): s (B11-1635-08)
(A29-1277-08): B

Power Cord Jack Case
(E30-7380-08): X (E63-1355-08): X Jack (A09-1330-08): S
(E30-7388-08): E (E63-1356-08): E (W02-4669-08) (A09-1331-08): 8
(Egg
E; ,
® ®
mmwmmwss , v ., ® g
Connector Jack
(E41-1883-08) (E58-0073-08): E

S :Silver
B : Black
E : Europe

X :Australia

Figure is DVF-5400 (E)

In compliance with Federal Regulations, following are reproduction KENWOOD Corp. certifies this equipment conforms to DHHS Regu-
of labels on, or inside the product relating to laser product safety. lations N021 CFR 1040- 10« Chapter 1, subchapter J-

DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURETO BEAM.

This product uses Lead Free solder.
This product complies with the ROHS directive for the European market.

Page 2

DVF-54OO

ACCESSORIES I CAUTIONS

Accessories

Audio cord (Red, White)
(X 1)
(E30-7381-08)

Video cord (Yellow)
(X 1)
(E30-7382-08)

Coaxial cable (Black)

(X1)

(E30-7383-08)

Remote control batteries
(R03 x 2)

H

Remote control unit
(RC-D0314 x 1)
(A70-1717-08)

[s o Goggoggoo
GEO AW
0 o OFIUOOOOOO

Cautions

Information on Disposal of Old Electrical
and Electronic Equipment (applicable for EU
countries that have adopted separate waste
collection systems)

Products with the symbol (crossed-out wheeled
bin) cannot be disposed as household waste.
Old electrical and electronic equipment should
be recycled at a facility capable of handling
these items and their waste by products.
Contact your local authority for details in locating a
recycle facility nearest to you.
Proper recycling and waste disposal will help conserve
resources whilst preventing detrimental effects on our
health and the environment.

For the U.S.A.

CAUTION:

Use of controls or adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure. In compliance with Federal
Regulations, the following are reproductions of labels on,
or inside the product relatin to laser roduct safety.

i KENWOOD CORPORATION :
3 2967-3, lSHIKAWA-CHO, i
i HACHIOJl-SHI, E
TOKYO, JAPAN :
KENWOOD CORR CERTIFIES THIS EQUIPMENT 5

CONFORMS TO DHHS REGULATIONS NO. 21 CFR 5

1040.10, CHAPTER 1, SUBCHAPTER J.

Manufactured under license from Dolby
Laboratories. Dolby and the double- D PPM
symbol are trademarks Of Dolby Laboratories.

DTS and DTS Digital Out are registered @dts
trademarks of DTS, Inc.

Digital Dut

DivX, DivX Certified, and associated logos
are trademarks of DivX, Inc. and are used
under license.

HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI licensing
LLC.

I:IDI11I"

The marking of products using lasers

CLASS 1

LASER PRODUCT

The marking this product has been classified as Class 1.
It means that there is no danger of hazardous radiation
outside the product.

Location: Back panel

Caution for Transport or Movement

Before transporting or moving the system, prepare it as
described below.

CD Switch the system ON without placing a disc in it.
(2;) Ensure that is displayed.
{3) Wait a few seconds, and then switch the system OFF.

Operation to reset

The microprocessor may fall into malfunction (impossibility
to operate erroneous display, etc.) when the power cord is
unplugged while power is ON or due to an external factor.
In this case, switch off the power, wait for several seconds,
and then switch the power on again.
