Kenwood DVF 3530 Service Manual

Page 1

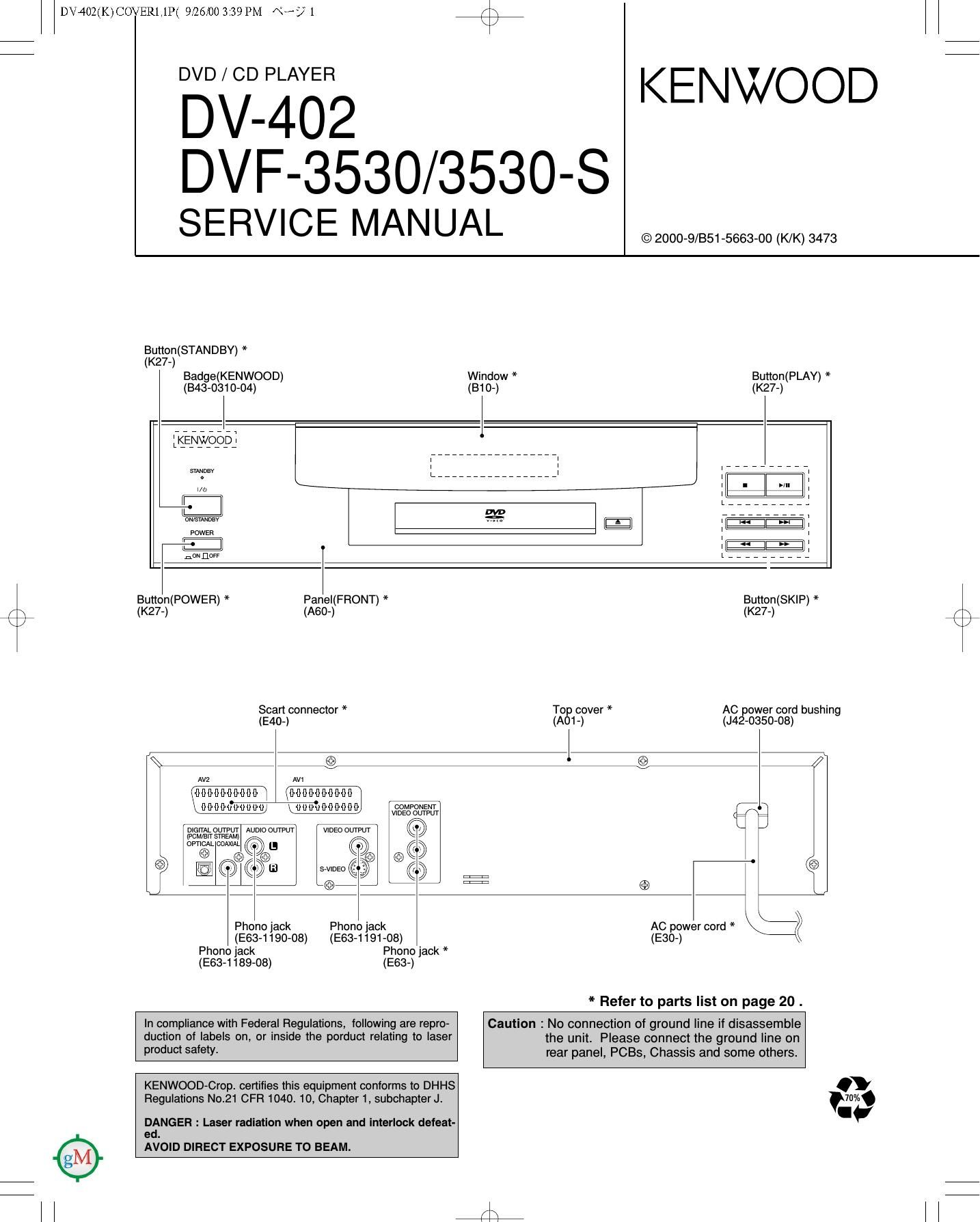

DV402(K)COVER1,1P( 9/26/00 3:39PM Ans/1 /\

DVD/CD PLAYER KEN V OOD
DV-402 W

DVF-3530/3530-S

SERVICE MANUAL

© 2000-9/B51-5663-00 (K/K) 3473

Button(STANDBY) *

(K27-)
Badge(KENWOOD) Window * Button(PLAY) *
(343-0310-04) (B1 0-) (K27-)
[KEMGEEJJ

swam

l/m

oN/srANosv

POWER

%
noNflOFF
Button(POWER) * Pane|(FRONT) * Button(SK|P) *
r \ (K27-) (A60-) (K27-) ,
k / \
Scart connector * Top cover * AC power cord bushing
(E40-) (A01-) (J42-O350-08)
AVZ Aw
GGGGGGGGGG CGGGGGGGGGG

\lllllllllmnnny \llllllniiiiiiiiiilij coMPoNENr

VIDEO ouwur

kJLJ

vao ourpur

©x C<>

© .» Cy

\

@\

[WK/VJ
H

(6 s
SerDEOW- J

w
637 -' ©
. . L k >
Phone Jack Phone Jack AC power cord *
(E63-1190-08) (E63-1191-08) (E30-) \
Phono jack Phone jack *
(E63-1189-08) (E63-)

* Refer to parts list on page 20 .

In compliance with Federal Regulations, following are repro- Caution : No connection of ground line if disassemble
duction of labels on, or inside the porduct relating to laser the unit. Please connect the ground line on
product safety. rear panel, PCBs, Chassis and some others.

KENWOOD-Crop. certifies this equipment conforms to DHHS .
Regulations No.21 CFR 1040. 10, Chapter 1, subchapter J. 70%

I
DANGER : Laser radiation when open and interlock defeal- V
ed.

w AVOID DIRECT EXPOSURE TO BEAM.

H A? ll

Page 2

r\
\/

DV402(K)COVER1,1P( 9/26/00 3:39PM \°-A/°2

DV-402/DVF-3530/3530-S

CONTENTS / ACCESSORIES / CAUTIONS

Contents

CONTENTS / ACCESSORIES / CAUTIONS.
DISASSEMBLY FOR REPAIR .......................
BLOCK DIAGRAM
WIRING DIAGRAM
WAVEFORM .........

bmlb'ooix)

Accessories

Audio video cord (1)
(Red, White, Yellow)
(E30-2990-08)

Optical fiber cable (1)
(For U.S.A. only)
(E30-2989-08)

Remote control unit (1)
(A70-1482-08)

PC BOARD ....................
SCHEMATIC DIAGRAM
EXPLODED VIEW.
PARTS LIST..
SPECIFICATIONS

AC plug adaptor (1)
(E03-0115-05)
4", * Use to adapt the plug on the
power cord to the shape of the
w] wall outlet.
(Accessory only for regions
where use is necessary.)

Batteries (R03/AAA) (2)

Cautions

Note related to transportation and move-
ment

Before transporting or moving this unit, carry out the follow-

ing operations.

1. Set the POWER key to ON without loading a disc.

2. Wait a few seconds and verify that the display shown
appears.

3. Set the POWER key to OFF.

Beware of condensation

When the difference between the internal temperature of the unit
and external atmosphere is large, dew (mist) may be produced on
the internal parts of the unit. In such a case, turn the unit ON and
leave it for a few hours until the condensation has dried up.

Be especially careful in the following conditions:
When the unit is brought into a place where there is a large differ-
ence in temperature between the previous location, when the
humidity of the listening room is high, etc.

Operation to reset

The microprocessor may fall into malfunction (impossibility to oper-
ate erroneous display, etc.) when the power cord is unplugged
while power is ON or due to an external factor. In this case, exe-
cute the following procedure to reset the microprocessor and
return it to normal condition.

0 In POWER ON condition, keep the l (STOP) key and the
ONISTANDBY key pressed at the same time.

9 When both keys are pressed, the region code of the unit, the
software version, etc. will be displayed on the display. (When
nothing is done, the display of this information continues.)
Example: 71 .101 .06:14

9 Press the ONISTANDBY key to go to STANDBY mode.

0 When Power ON is performed with the ONISTANDBY key,
the settings become the default lactory settings.

0 Please note that resetting the microprocessor clears the con-
tents stored in, it returns the microprocessor to the condition
when it left the factory.
