Kenwood DVF 3250 S Service Manual

Page 1

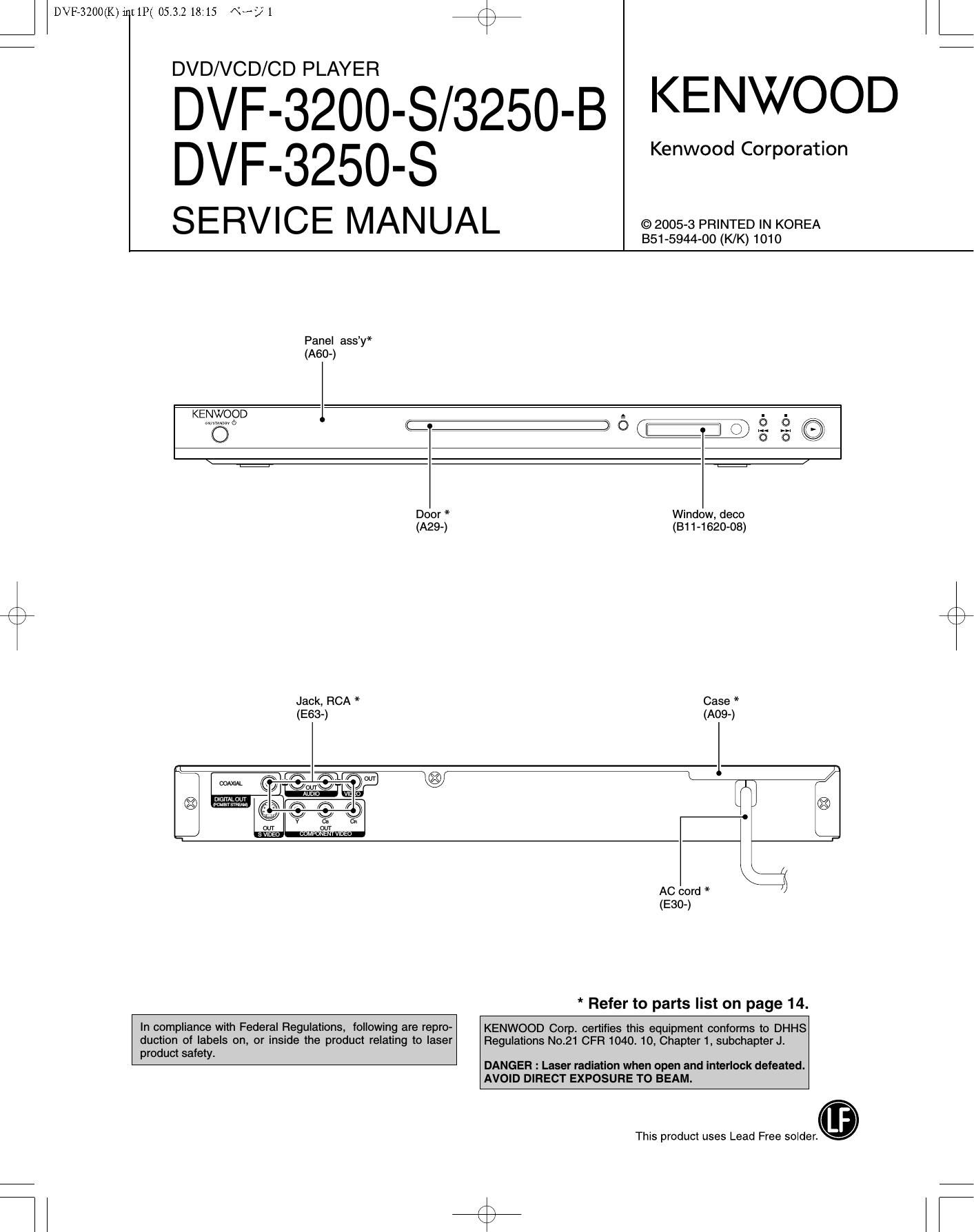

DVF73200(K) inttP( 05.3.2 18: 15 \°~/1

DVDNCD/CD PLAYER

/\
K

DVF-3200-S/3250-B KENWOOD

DVF-3250-S

SERVICE MANUAL

Kenwood Corporation

© 2005-3 PRINTED IN KOREA
851-5944-00 (K/K) 1010

Panel assy*
(A60-)
(:3 5 -==]\ 52 2
C: 1 o 0
Door * Window, deco
(A29-) (B11-1620-08)
E9
Jack, RCA * Case *
(E63-) (A09-l
"I um Widow l®i * I /
W QIVDMMTREg-I U
® % @lm fl ¢\ ®
I V Y \5/ #
M w l
WWW/mac
I: g
AC cord *

(530-)

* Refer to parts list on page 14.

In compliance with Federal Regulations, following are repro-
duction of labels on, or inside the product relating to laser
product safety.

KENWOOD Corp. certifies this equipment conforms to DHHS
Regulations No.21 CFR 1040. 10, Chapter 1, subchapter J.

DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM.

This product uses Lead Free solder..
