Kenwood DVF 3060 Service Manual

This is the 22 pages manual for Kenwood DVF 3060 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 22

Extracted text from Kenwood DVF 3060 Service Manual (Ocr-read)

Page 1

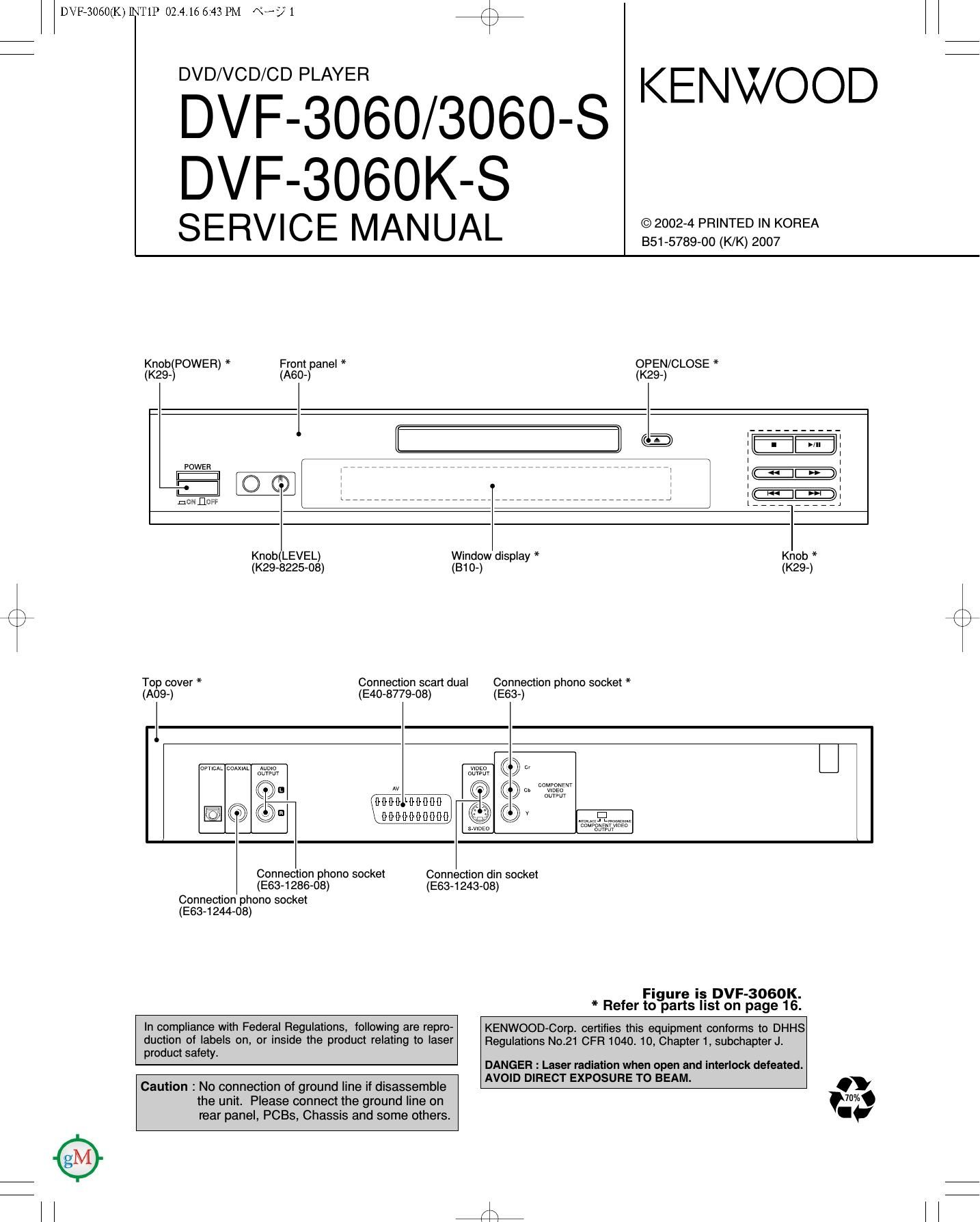

DVF73060(K)]NT1P 02.4.16 6:43PM \°-/° 1

r\
\/

DVD/VCD/CD PLAYER

/\
\/

KENWOOD

DVF-3060/3060-S
DVF-3060K-S

SERVICE MANUAL

Knob(POWER) * Front panel * OPEN/CLOSE *
(K29-) (AGO-I (K29-)
<3 I 1
i I
, I i
POWER
:I ., I ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, i r
Em an I ,,,,,,,,,, A
Knob(LEVEL) Window display * Knob *
(K29-8225-08) (310-) (K29-)
/'\
\
Top cover * Connection scart dual Connection phono socket *
(A09-) (E40-8779-08) -
/\ W n \ ED :0nger
\PB Milt} m _ (D "0
' \ .7 s
3 © Q \iiiiGiiiiiiiiiiiiii Q Q V

Connection phono socket
(E63-1286-08)
Connection phono socket

(E63-1244-08)

Connection din socket
(E63-1243-08)

Figure is DVF-3060K.
* Refer to parts list on page 16.

In compliance with Federal Regulations, following are repro-
duction of labels on, or inside the product relating to laser
product salety.

Caution : No connection of ground line if disassemble
the unit. Please connect the ground line on
rear panel, PCBs, Chassis and some others.

KENWOOD-Corp. certifies this equipment conforms to DHHS
Regulations No.21 CFR 1040. 10, Chapter 1, subchapter J.

DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM.

Page 2

r\
\/
DVF73060(K)]NT1P 02.4.16 6:43 PM NH? 2
DVF-3060/3060-S/306OK-S
CONTENTS / ACCESSORIES / CAUTIONS
Contents
CONTENTS / ACCESSORIES / CAUTIONS ............. 2 SCHEMATIC DIAGRAM .......................................... 13
DISASSEMBLY FOR REPAIR ....3 EXPLODED VIEW ....19
CIRCUIT DESCRIPTION ....... ....4 PARTS LIST ....... ....20
PC BOARD ................................................................ 9 SPECIFICATIONS .................................................... 25
Accessories
,
Please confirm that the following accessories are present.
Audio video cord (Red, White, Yellow) ...(1)
(EGO-299008)
Batteries ............................... (2)
DV-603/DVF-3060 (RES/AA)
W at
DVF-3060K (R03/AAA)
Cautions
Remote control unit.
DV-603/DVF-3060
(A70-1532-08)
Coaxial cable ...(1)
(E30-7235-08)
DVF-3060K
(A70-1592-08)
ma 6
3
07mm
AC Plug Adaptor (1)
(E03-0115-05)
,1 Use to adapt the plug on the
power cord to the shape of the
wall outlet.
(Accessory only for regions where
use is necessary.)
Operation to reset
The microprocessor may fall into malfunction (impos-
sibility to operate erroneous display, etc.) when the
power cord is unplugged while power is ON or due to
an external factor. In this case, execute the following
procedure to reset the microprocessor and return it to
normal condition.
0 Please note that resetting the microprocessor clears the
contents stored in, It returns the microprocessor to the con
dition when it left the factory.
0 In Power ON condition,keepthel (Stop) keyand the >>
(Search) key pressed at the same time.
9 When both keys are pressed, the region code of the
unit, the software version, etc. will be displayed on
the display. (When nothing is done, the display of this
information continues.)
Example: 72. 14.0205
9 Press the POWER ONIOFF switch to go to Power OFF.
0 When Power ON is performed with the POWER ONIOFF
switch, the settings become the default factory settings.
The marking of products using lasers
(For countries other (Iran U.S.A., U.S.-Mili!ary and Canada)
CLASS I
LASER PRODUCT
The marking thIs product has been classIerd as Class I. It
means that there Is no danger of hazardous radiatIon outsIde
the product.
LocatIon: Back panel
Model vs description
MODEL DESTINATION COLOR
DVF-3060 E BLACK
DVF-3060 Y BLACK
DVF-3060-S ETXY SILVER
DVF-3060K-S HM SILVER
DVF-3060K-S(M2) M2 SILVER

Page 6

r\
\J
DVF73060(K)]NT1P 02.4.16 6:43 PM \°-A7 6
/\
\/
DVF-3060/3060-S/306OK-S
CIRCUIT DESCRIPTION
Port No. Port Name l/O Part Description
36 l REF YCC l Reference current input for DAC YCC.
35 V REF YCC l Reference voltage input for DAC YCC.
23 VDD RGB - Supply voltage for RGB (+2.5VA).
24 V88 FIGB - GND
30 VDD YCC - Supply voltage for YCC (+2.5VA).
31 VSS YCC - GND
Shared memory interface
66~69 SMI ADR(3~O) O SDRAM address bus.
58~63 SMI ADR(4~9) O SDRAM address bus.
70~73 SMI ADR(10~13) O SDRAM address bus.
84~93 SMI DATA(0~9)
97~102 SMI DATA(10~15) l/O SDRAM data bus.
74 SMI 08(0) 0 Chip select bank 0.
75 SMI CS(1) - Unused.
76 SMI HAS 0 SDRAM FIAS
77 SMI CAS 0 SDRAM CA8
78 SMI WE O SDRAM write enable
79 SMI DQML 0 DC.) MASK enable low.
80 SMI DQMU 0 DO MASK enable up.
82 SMI CLKIN | SDRAM clock input.
95 SMI CLKOUT O SDRAM clock out.
Power supply
$271,213,112: VDD3 3 - 3.3V Power supply.
14.37.64.94
119.149.171 VDD2 5 - 2.5V Power supply.
198
5.15.38.50.65
83.96.108.121
137.150.160 VSS ' GND
172.185.199
:1: M type only
2. Description of lcs
2-1 VFO controller: uPD16311(lC91)
Pin No. Pin Name l/O Pin Description
6 DIN l Inputs serial data at rising edge of shift clock, starting from lower bit.
Output serial data at falling edge of shift clock. starting from lower bit.
5 DOUT O . . . .
This IS N-ch open-drain output pm.
9 STB - Strobe pin.
8 CLK l Reads serial data at rising edge. and output data at falling edge.
52 080 - Connect resistor for determining oscillation frequency to this pin.
15~26 S1/KS1~S12/KS12 0 Segment output pins (Dual function as key source).
35~44 G10~G1 0 Grid output pins.
271:: 221811: 0 These pins are selectable for segment or grid output.
46.47.49.50 LED (5.4.2.1) O Unused.
48 LED3 0 Control pin of standby LED.
10~13 KEY1~KEY4 I Data input to these pins is latched at end of display cycle.
1~4 N.C. - Unused.
14.33.45 VDD - +5V power supply.
51 VSS - Connect this pin to GND of system.
34 VEE - -27V power supply.
7 N.C. - Unused.
