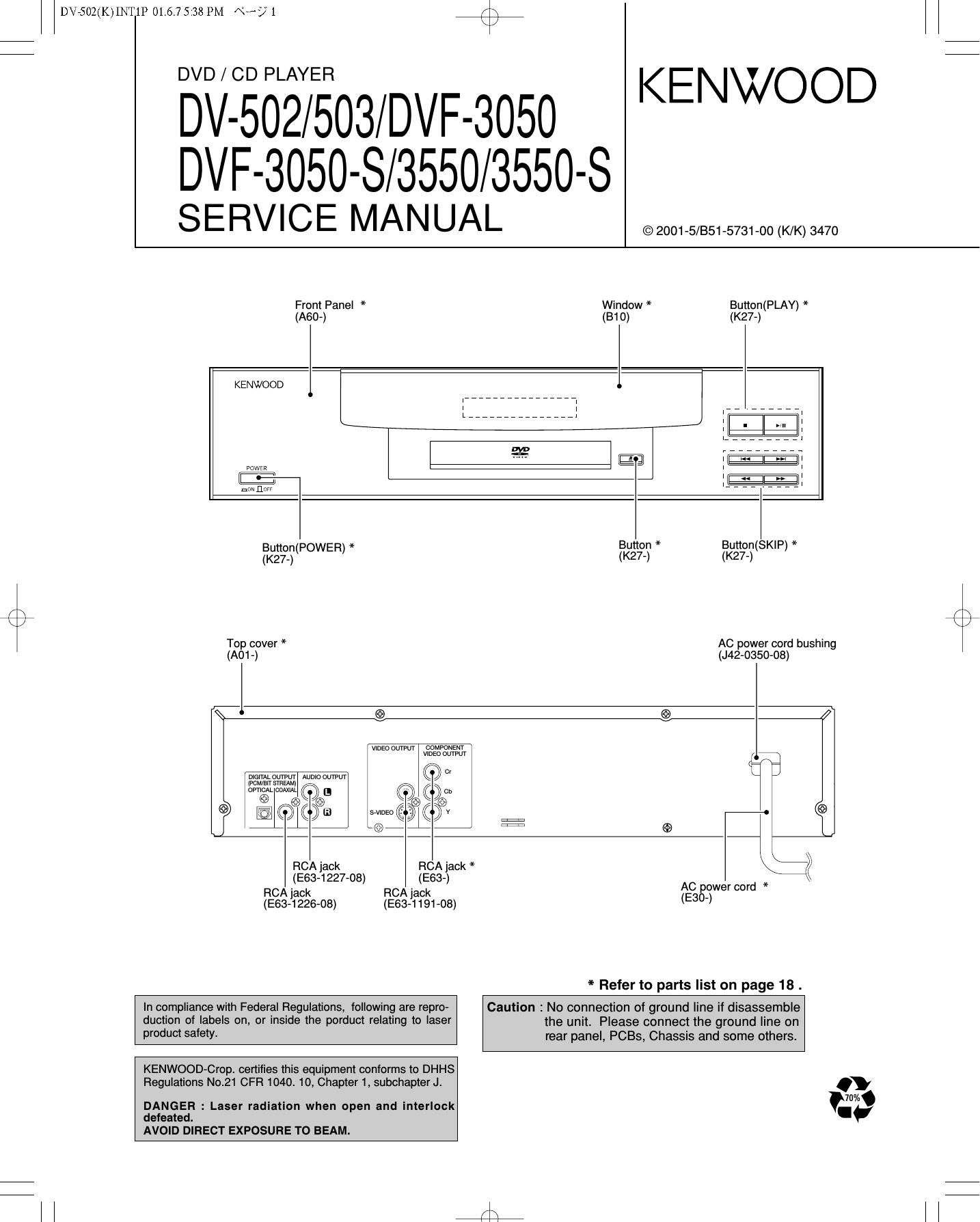

DV7502(K)INT1P 01.6.7 5:38 PM «Ks/1

DVD / CD PLAYER

DV-502/503/DVF-3050

/\
\/

DVF-3050-S/3550/3550-S

SERVICE MANUAL

© 2001-5/851-5731-00 (K/K) 3470

KENWOOD

Front Panel *
(A60-)

Window * Button(PLAY) *
(B10) (K27-)

KENWOOD

mm 2

navflcrr

Button POWER * Button * Button(SK|P) *
(K27-)( ) (K27-) (K27-)
TOP cover * AC power cord bushing
(A01-l (J42-0350-08)
l @ ©

muse omeur cowousm
vloEo ouwu'r

srleEo

o J;
v

RCA jack RCA jack *
(E63-1227-08) (E63-)
RCA iack RCA jack

(E63-1226-08) (E63-1191-08)

AC power cord *
(E30-)

* Refer to parts list on page 18 .

In compliance with Federal Regulations, following are repro-
duction of labels on, or inside the porduct relating to laser
product safety.

KENWOOD-Crop. certifies this equipment conforms to DHHS
Regulations No.21 CFR 1040. 10, Chapter 1, subchapter J.

DANGER : Laser radiation when open and interlock
defeated.
AVOID DIRECT EXPOSURE TO BEAM.

Caution

: No connection of ground line if disassemble
the unit. Please connect the ground line on
rear panel, PCBs, Chassis and some others.
