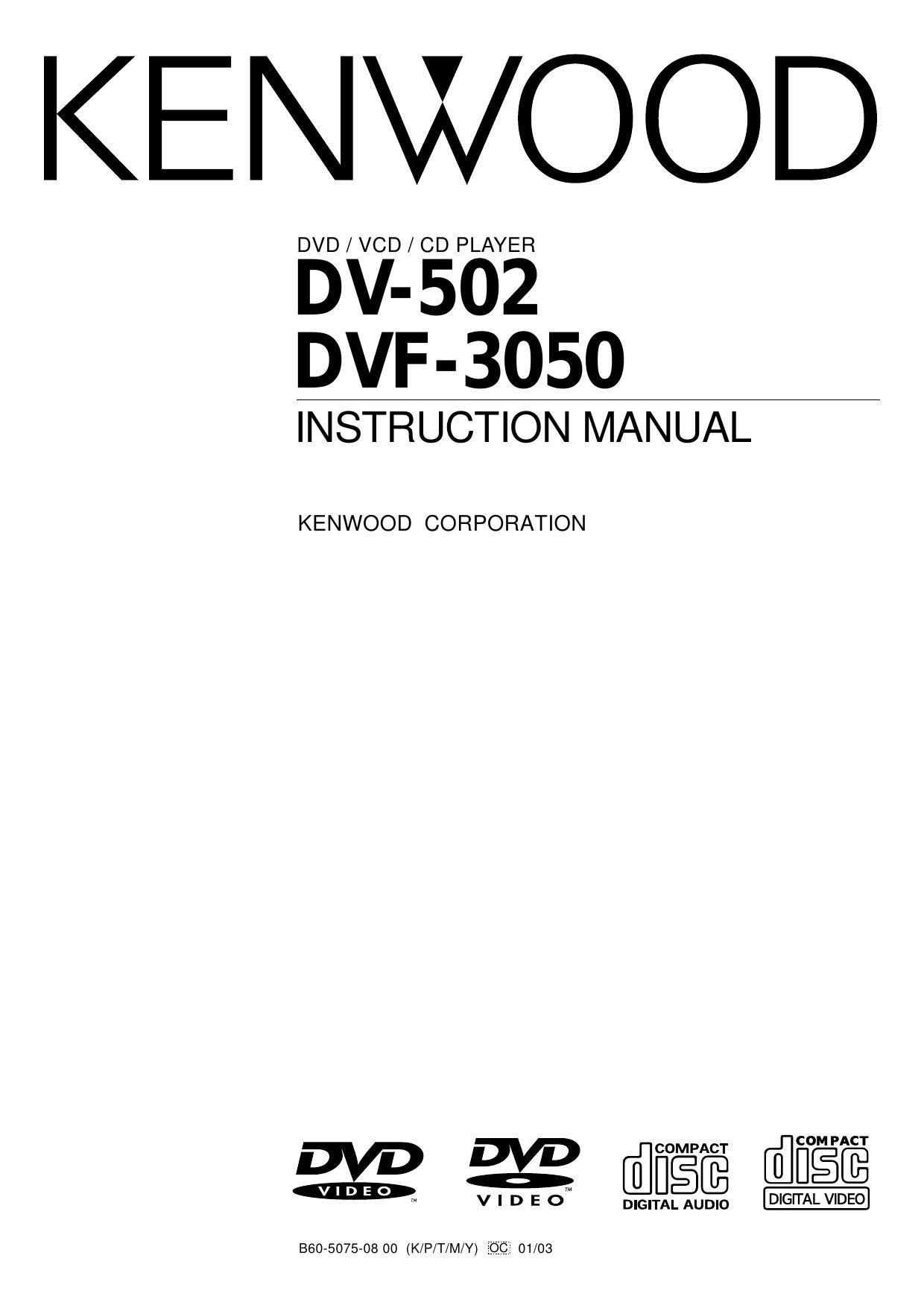

Kenwood DVF 3050 Owners Manual

Page 2

Introduc tion

Before applying power

Units are dsigned for operation as follows.
U.5.A. and Canada .. A C 120V only
Australia ..................... A C 240 V only

For the United Kingdom

Factory fitted moulded mains plug

1. The mains plug contains afuse. Forreplacement, use
only a 3-Amp ASTA-approved (BS 1362) fuse.

2. The fuse cover must be refitted when replacing the
fuse in the moulded plug.

3. Do not cut off the mains plug from this equipment. If
the plug fitted is not suitable for the power points in
your home or the cable is too short to reach.

A power point, then obtain an appropriate safety
approved extension lead or adapter, or consult your
dealer. lf nonetheless the mains plug is cut off,
remove the fuse and dispose of the plug immediately,
to avoid a possible shock hazard by inadvertent.
Connection to the mains supply.

IM PORTANT :
The wires in the mains lead are coloured in accordance
with the following code:

Blue : Neutral

Brown : Live
Do not connect those leads to the earth terminal of a
three-pin plug.

Safety precautions

DV~502/DVF73050 (EN/K,P,T,M ,Y)

A Caution : Read this page carefully to ensure safe operation.

Europe and U.K
*Other countries

AC 230V only
C 110-120/ 220-240 szitchable

/!\ Caution : Read this page carefully to ensure safe operation.

WARNING :TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.

CAUTION

alsn or ELECYRlC sNocK
no nor am.

CAUTION: TO REDUCE THE RISKOF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SER-
VICING TO QUALIFIED SERVICE PERSONNEL.

A

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRI-
ANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DAN-
GEROUS VOLTAGE" WITHIN THE PRODUCTS ENCLOSURE THAT MAY BE OF SUFFICIENT
MAGNTTUDE TO CONSTTTUTE A RISKOF ELECTRIC SHOCKTO PERSONS.

A

THE EXCLAMATION POINT WTTHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT
THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SER-
VICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

The marking of products using lasers
(Except for some areas)

CLASS 1
LASER PRODUCT
The marking is located on the rear panel and says that
the component uses laser beams that have been clas-
sified as Class 1. It means that the unit is utilizing laser

beams that are of a weaker class. There is no danger of
hazardous radiation outside the unit.

Page 37

DVD player unit

In case ofdifficulty 37

DV402/DVFn3530 (EN/K,P,T,M ,X)

Symptom

Cause

Remedy

Playback will not start even alter a title is
selected.

0A viewing restriction (RATING) has been set for
the disc.

0 Check the viewing restriction level (RATING)
setting.

Theviewing rstriction level (RA11NG) can-
not be changed.

0 You haveforgotten the viewing restriction (RAT-
ING) password.

0 Set the initial setup to the factory setup with
the following procedure.

(D In POWERON condition, keep the I isrop) key and the»
(Search) key pressed at the same time.

(2) when both keys are pressed, the region code of the unit, the
softwareversion, etc. will oedisplayeo on the display. (When
nothing is done, the display of this inronnanon continues.)

6) Press the ON/DFF key to go to Power OFF.

(é) when Power on is performed with the arr/on: key, the
settings become the default rectory settings.

The voice or subtitle language selected in
the initial setting is not played.

oThe DVD disc being played does not contain the
recording of the selected voice or subtitle lan-
guage.

oUse a DVD disc containing the recording of
the selected voice or subtitle language.

No mssage appears on the TV screen alter
a key is pressed.

oThe function for displaying message on the TV
screen (On-Screen Messages) is set to off.

oSet On-Screen Messages to on.

Menu screen messaga are notshown inthe
daired language.

oThe menu language function (M ENU) is not set.

0 Set the disc menu language function (M ENU)
as required.

Remote control unit

Symptom

Cause

Remedy

Remote control operation is not possible.

- Batteries are exhausted.

oThe remote control is too far away from the
system, the controlling angle is deviated or
there is an obstacle in between.

a Replace with new batteries.
oOperate the unit inside the remote control-
lable range.

Inhibition icon

Symptom

Cause

Remedy

111e inhibition icon is displayed
and remote control is not pos-

o Playback is restricted intentionally by the soft-
ware producer.

.111e opelalion is inhibiled. Please by an-
aflieroperafion.

sible.

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216,
and 4,819,098, Licensed for limited viewing uses only.

This product is compatible with the MacroWsion type copy
protection. Some discs contain the recording of copy inhibit
signals, and the video may be disturbed when the video of
such discs is recorded onto a VCR and played back.

This product incorporates copyright protection technology that is pro-
tected by method claims of certain U .S. patents and other intellec-
tual property right owned by M acrovision Corporation and other rights
owners. Use of this copyright protection technology must be author-
ized by M acrovision Corporation, and is intended for home and other
limited viewing uses only unless otherwise authorized by M acrovision
Corporation. Reverse engineering or disassembly is prohibited.

It is prohibited by laws to duplicate, broadcast, perform in
public or rent a disc without the permission of the copyright
owners.

M anufactured under license from Dolby Laboratories. Dolby",
"AC-3", Pro Logic" , and the doubleD symbol are trademarks of
Dolby Laboratories. Confidential Unpublished Works. © 1992»
1997 Dolby Laboratories. All rights reserved.

DTS and "DTS Digital Surround are trademarks of Digital
Theater Systems, Inc.
