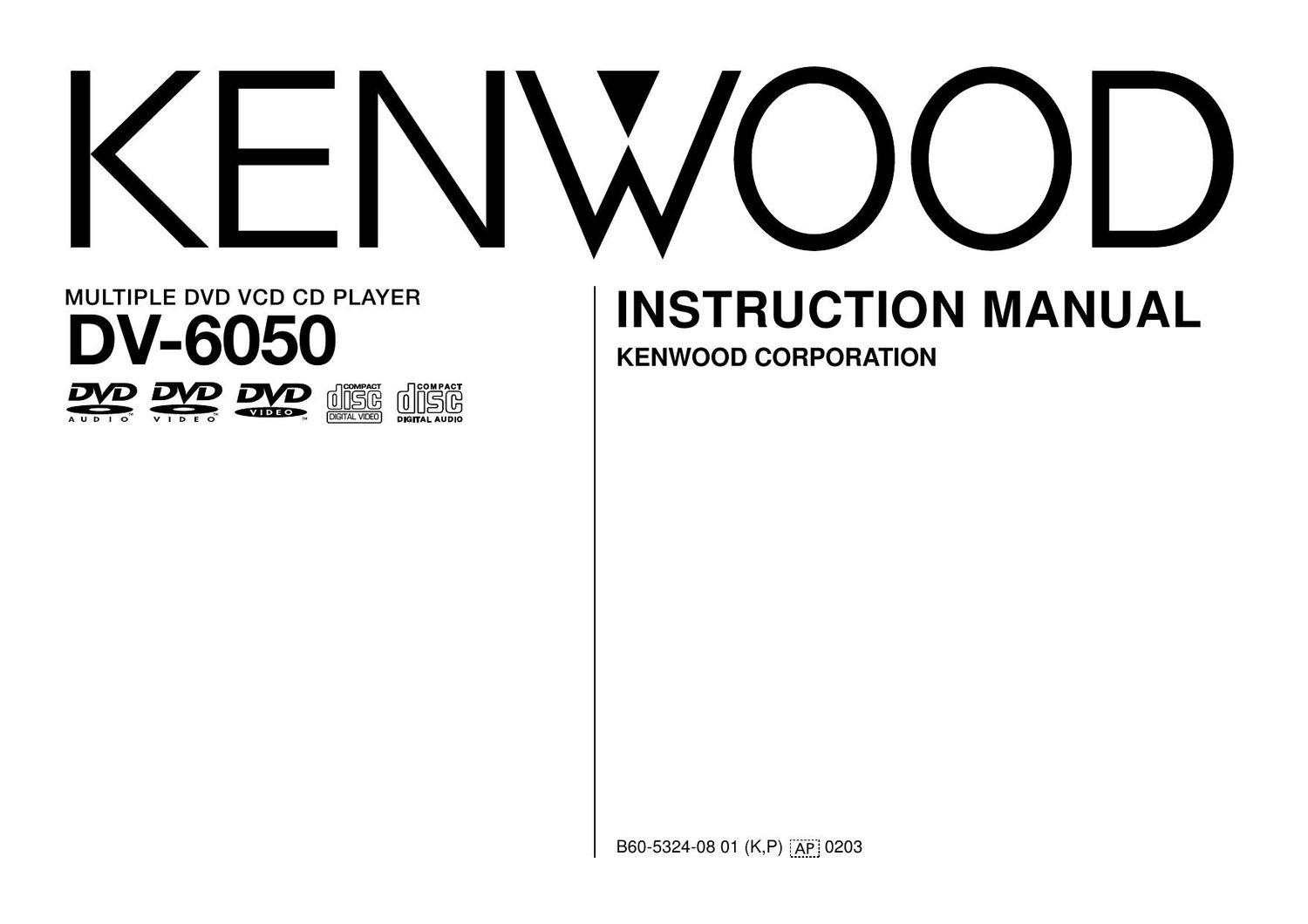

Kenwood DV 6050 Owners Manual
This is the 68 pages manual for Kenwood DV 6050 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood DV 6050 Owners Manual (Ocr-read)
Page 1
2 Chapter 1: Connection of Equipment Before applying power Units are designed for operation as follows. U.S.A. and Canada ........................ AC 120 V only The marking of products using lasers (For countries other than U.S.A., U.S.- Military and Canada) Safety precautions WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. RISK OF ELECTRIC SHOCK DO NOT OPEN THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED DANGEROUS VOLTAGE WITHIN THE PRODUCTS ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS. THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE. CAUTION The marking this product has been classified as Class 1. It means that there is no danger of hazardous radiation outside the product. Location: Back panel Caution : Read this page carefully to ensure safe operation. CLASS 1 LASER PRODUCT Inside this laser product, a laser diode classified as Class 2 laser radiation is contained as alerted by the internal caution label shown above. Do not stare into beam. Location: DVD laser pick-up unit cover inside this product CAUTION VISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM.
Page 2
3 Chapter 1: Connection of Equipment Features Compatible with DVD AUDIO, one of the latest digital audio formatsThe DVD AUDIO reproduces 2-channel, 192 kHz, 24-bit sampled digital audio or 6-channel, 96 kHz, 24-bit sampled audio. This innovative technology has made possible audio reproduction in unprecedented high quality. Versatile DVD VIDEO Functions The DVD provides horizontal resolution of 500 lines, which exceeds that of S VHS video (400 lines) or laserdisc (430 lines). Multi-audio function: With DVD discs marked with the 8 icon, the desired language can be played back by selecting it from up to 8 languages. (The number of available languages is variable depending on the discs.) Multi-subtitle function: With DVD discs marked with the 32 icon, the subtitle language can be selected from up to 32 languages. (The number of subtitle languages is variable depending on the discs.) Angle function: With DVD discs marked with the 9 icon, a single object can be viewed in up to 9 angles by switching. (The number of available angles is variable depending on the discs.) Compatibility with Wide Range of Digital Surround Software The unit incorporates Dolby Digital decoder, DTS decoder, MPEG multi-channel decoder and Packed PCM decoder so that the users can enjoy the sound of real cinemas. The unit can also be connected to the user's existing TV set. 6-Channel Output Terminals These output terminals can be connected to an amplifier with 6-channel input compatibility to enjoy high-bit, high-sampling rate multi-channel sound. 5-Disc Carousel Disc Changer The disc tray can accommodate up to 5 discs and the disc can be changed while another disc is being played. DVD player with CD-R and CD-RW disc* compatibility This DVD player can play back tracks recorded in CD- R (Compact Disc Recordable) and CD-RW (Compact Disc Rewritable) as well as those in music CD. * Only finalized discs can be played back. However, certain discs may still be unplayable on this player. MP3 playback capabilities This player can also play back the MP3 files which are the latest formats for storage of music data. However, certain MP3 files may still be unplayable on this player. Progressive scanning The video display format can be switched between "Interlaced" and "Progressive" scanning. Accessories Remote control unit (1) Batteries (R03/AAA) (2) Coaxial cable (1) Audio/Video cables (1) Unpacking Unpack the unit carefully and make sure that all the accessories are present. If any accessories are missing, or if the unit is damaged or fails to operate, notify your dealer immediately. If the unit was shipped to you directly, notify your shipper immediately. Kenwood recommends that you retain the original carton and packing materials in case you need to move or ship the unit in the future. Keep this manual handy for future reference. DV-6050 advanced video technology The DV-6050 changer includes two different video processing circuits from Faroudja ® that deliver a superb DVD picture that is close to a high definition broadcast image when viewed on an HD-ready TV or monitor. ¶ A Faroudja DCDI™ (Directional Correlation Deinterlacing) progressive scan processor produces the highest-quality progressive video output in the industry, pro viding superior performance where many progressive scan DVD players have great difficulty. DCDi s Motion Adaptive De-Correlation processes motion information separate from still information, reducing video artifacts and distortion such as jagged edges which are very apparent with motion and diagonal lines. Cross-Color Separation reduces bleed across colors, and Film and Animation Detection processes film and animation information separately, reducing artifacts and distortion in both. The DV-6050 allows you to use the on-screen menu to compare the DCDi-processed picture with the unprocessed picture. See page 38 of the instruction manual for details. ¶ Faroudja s Digital Video Enhancement increases resolution by processing both vertical and horizontal signals to provide maximum detail. Large edges and small details are processed independently, providing optimum edge enhancement, and a DVD image that approaches the quality of a high-definition broadcast image. The Enhancer Gain setting allows you to fine-tune the amount of Faroudja detail enhancement to increase sharpness without adding noise or making the picture look too etched or artificial. See page 38 of the instruction manual for details. Comparison of DCDi deinterlaced (progressive scan) output (top) with conventional progressive scan processing (bottom). Proprietary Faroudja technology identifies moving images at all angles, and uses exclusive algorithms to process the moving edges, producing a smooth image that is far more film-like than is possible with conven- tional progressive scan processing. DCDi pro- cessing also eliminates coloration artifacts result- ing from the deinter-lacing process.
Page 15
16 Chapter 2: Controls and indicators Controls and indicators Chapter 2: Controls and indicators This chapter gives description on the front panel buttons, display panel of the player main unit and the provided remote control unit. This chapter is composed of the following sections.Front Panel & Display * Remote Control Unit (
Page 24
25 Chapter 3: Basic Operation Basic Operation Menu playback of DVD When a DVD containing the recording of the top menu or menu is played, the top menu or menu is displayed. These menus allow you to select the position you want to play easily based on an interactive method. The following operation procedure is the basic procedure. The functions vary depending on certain softwares. 1. Press the TOP MENU/PBC button to display the top menu. ¶ When the TOP MENU/PBC button is pressed again while the top menu is displayed during playback, the played position returns to the position where the button was pressed for the first time and playback restarts from there. 2. Select the scene to be played by pressing the cursor button on the remote. (Step 3 is not required if nu- meric buttons are used to select the item.) 3. Press the ENTER button to play the DVD from the selected title. ¶ To display multiple menus sequentially, repeat steps 2 and 3 above. If the menus are provided in a hierarchical structure, this operation allows you to move to the menus in the lower hierarchy level. ¶ The MENU button on the remote is pressed, the menu is displayed. The operation is the same as that of the top menu. Menu playback of P.B.C.-compatible VCD When a P.B.C. (PlayBack Control) capable VCD is played with P.B.C. on, the menu is displayed. Perform operation according to the procedure indicated by the menu. (For details on the operation method and control buttons, refer to the manual provided with the played software.) Hierarchy level 1 (Menu) Hierarchy level 2 (Submenus) Hierarchy level 3 (Scenes) Example of hierarchical structure PLAY SELECT RETURN PREVIOUS PREVIOUS NEXT NEXT To advance in the hierarchy: When an item is selected in the menu using the ENTER (Select) button or numeric buttons, you can advance to the menu at the level immediately below the current level. When the selected item is a [scene], the scene will be played back. To return in the hierarchy: You can return to the level immediately above the current level every time you press the RETURN button. ¶ When there are multiple menus (scenes) in a hierarchy level, they can be switched over by pressing the 4 (Previous ) button or ¢ (Next) button. ¶ The indication on the jacket is variable depending on the software. Switching P.B.C. On and Off When there is a VCD in the played position of the stocker and the player is in stop mode, press the TOP MENU/PBC button to switch P.B.C. on or off. P.B.C. on: The TV screen shows " P.B.C. On" and the P.B.C.-compatible VCD is played according to P.B.C. The " PBC" indicator in the display lights up. P.B.C. off: The TV screen shows " P.B.C. Off" and the P.B.C.-compatible VCD is played in normal playback without P.B.C. The " PBC" indicator in the display turns off. ¶ P.B.C. is switched off automatically when the sequential play mode is set to " SEQ.2" or when the play mode is set to the program or random mode. § ENTER button RETURN button 4 button ¢ button Indication on software jacket Control button on the player 3 (Select) (Return) 4 (Previous) ¢ (Next) Hierarchical structure of VCD menus When a P.B.C.-compatible VCD containing menus is played and an item is selected in the displayed menu, a menu with more detailed items may sometimes be displayed. Such a structure in which multiple menus are distributed in different levels and interconnected is referred to as the hierarchical structure. In this structure, the target scene can be reached by repeatedly selecting items in multiple menus. Main control buttons used in VCD playback, and examples of indications
Page 50
51 Chapter 6: Various Setups Various Setups Table : " Speaker Setting (Custom) " Function & Setting (2/2) Level Off Icon Speaker Icon Function Initial Position Means Subwoofer SW Size Subwoofer channel output ON/OFF On Icon –– Speaker Item Setting Item Set the volume level –– 0 to -12 dB ÷For the " Speaker Setting" when an AV amplifier is connected digitally to the player, refer to the instruction manual of the AV amplifier. ÷ Note on the Speaker Level adjustment. When a set of speaker(s) is installed, it is recommended to adjust the level using the Test Tone. W ÷ " " : Select to return to the previous screen. 4. Select the Speaker item (refer to the table on the right) and press the ENTER button. Select the Function item (refer to the table on the right) and press the ENTER button. Select the Setting item (refer to the table on the right) and press the ENTER button. ÷ When setting the distance of each speaker, place the cursor on the nearest integral value among " 0" to " 10", then press the ENTER button and adjust the distance using the cursor up/down button. After setting the distance, press the ENTER button again. dB Speaker Setting (Custom) -12-11-10-9-8-7-6-5-4-3-2-10 ft 010 2030 C Level Distance Exit Off Size Normal Large 0 dB 10 ft 0 dB 10 ft 0 dB 10 ft 5 ft 0 dB 0 dB LS R RS L SW C 0 dB Press the cursor button to select "Exit ", then press the ENTER button. 5. Repeat step 4 as required. 6. Press the cursor button to select "Exit ", then press the ENTER button. 0 dB On Select " Off" if the subwoofer is not used.
