Kenwood DV 5050 M Owners Manual

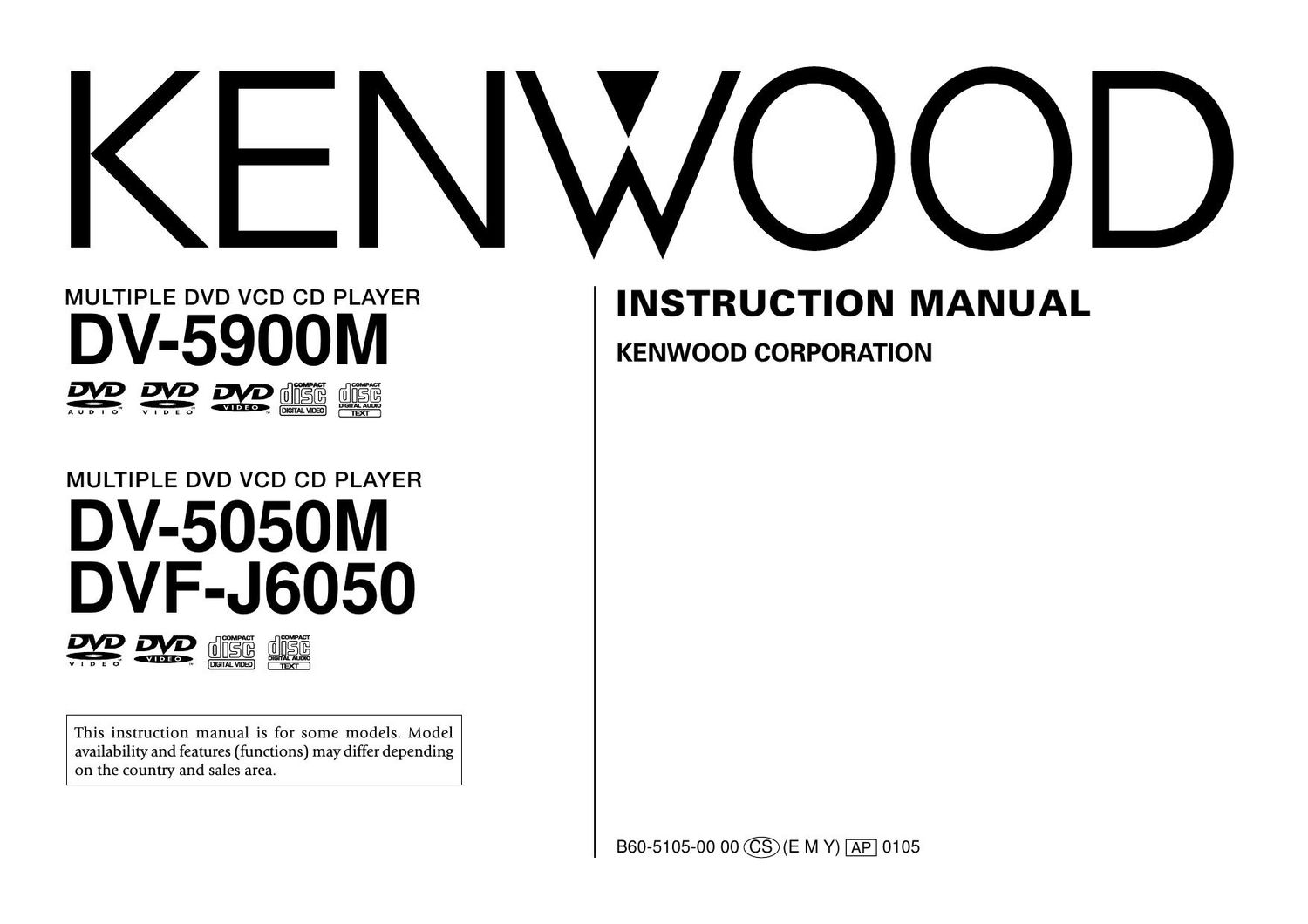

Page 1

KENWOOD

MULTIPLE DVD VCD CD PLAYER INSTRUCTION MANUAL

DV'5900 M KENWOOD CORPORATION

fi <=> % [fl_[I§@ @flfifi

v. umuvuau

MULTIPLE DVD VCD CD PLAYER

DV-5050M
DVF-J6050

m % wage Eilflfifi

"

This instruction manual is for some models. Model
availability and features (functions) may differ depending
on the country and sales area.

860-5105-00 00 @(E M Y) 0105

Page 2

0-1 Before applying power

Units are designed for operation as follows.

For the United Kingdom

A Caution : Read this page carefully to ensure safe operation.

U.S.A. and Canada ........................ AC 120 V only Factory fitted moulded mains plug
Europe and ILK. ........................... AC 230 V only
Other countries .............................. AC 110-240 V

Blue : Neutral

l. The mains plug contains a fuse. For replacement, use only a 13-Amp ASTA-approved (B51362) fuse.
2. The fuse cover must be refitted when replacing the fuse in the moulded plug.

3. Do not cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points
in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved
extension lead or adapter, or consult your dealer.

If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a
possible shock hazard by inadvertent connection to the mains supply.

IMPORTANT : The wires in the mains lead are colored in accordance with the following code:
: Live
Do not connect those leads to the earth terminal ofa three-pin plug.

0-2 Safety precautions

WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN
EQUILATERAL TRIANGLE, 1S INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULATED DANGEROUS VOLTAGE" WITHIN THE
PRODUCTS ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE
TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.

INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT
OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE Is
A LITERATURE ACCOMPANYING THE APPLIANCE.

The marking of products using lasers
(For countries other than II.S.A., (LS.-
Military and Canada)

CLASS 1
LASER PRODUCT

The marking this product has been classified as Class 1.
It means that there is no danger of hazardous radiation
outside the product.

Location: Back panel

CAUTION

VISIBLE LASER RADIATION

WHEN OPEN. DO NOT
STARE INTO BEAM.

Inside this laser product, a laser diode classified as Class
2 laser radiation is contained as alerted by the internal
caution label shown above. Do not stare into beam.

Location: DVD laser pick-up unit cover inside this
product

Page 29

3-4 Inserting discs
3. Insert the disc vertically.
Up to 403 discs can be loaded in the stocker. Disc

exchange also is possible during playback 0 Insert it so that the side to be played back faces

leftward. . .
The discs can be changed during playback without dlSC label Slde
stopping the currently played disc.

Be sure to operate a button when opening/dosing
the disc door or rotating the stocker. Never
attempt to move the stocker with your hand.
Never let your hand or any object enter inside the
unit.

Operation procedure

1. Press the OPEN/CLOSE button on the player main 4- Repeat 2 and 3 [0 insert discs.
unit to open the disc door. (Pressing the button again

closes the disc door.
) 5. Press the OPEN/CLOSE button on the player to close

the disc door.

This unit cannot play back 8 cm discs. Do not

attempt to play an 8 cm disc for this may result
in malfunction. The unit starts detection of discs in the stocker

("DETECTION" is displayed during this).

0 When the disc door closes :

. Place the disc to be played along the groove on the . . .
slot. Electing the dlSC

. Do not insert more than one disc in a slot. Operation procedure

0 When handling a disc, take care not to touch the

. 1. Turn the DISC knob on the main unit to select a disc.
disc surface.

0 Please do not use discs which are not round 2_ Press the EIECTA button.
because they may cause malfunction.

2. Turn the DISC knob and bring the slot with the disc
to be placed to the front.
. If you are operating the remote, press the DISC Adisc is inserted in the slot with the same disc number
+0113), _ (down) button. as the disc being loaded. It is not permitted to insert
another disc in a slot from which the disc has been
loaded. Remove the inserted disc and insert it in an
idle slot.

When REMOVE DXXX" is displayed :

Chapter 3: Basic Operation

3-5 In regard to ALL DATA READ mode

The disc information for all discs will be read. We
recommend to execute this mode before playback after
discs have been exchanged.

Close the disc door before operation.

Operation procedure (remote)
1. Press the MODE button.

2. Press the DISC +(up), - (down) button, then select
ALL DATA READ".

3. Press the SET button.

I To display the title on a LCD remote control unit
(provided with a KENWOOD Receiver or optional),
perform the all data read operation first, and
operate the LCD remote control unit with the disc
door closed. For the operation ofthe LCD remote
control unit, refer to the instruction manual
provided with your receiver or LCD remote control
umt.

o If you are operating the keyboard remote, press the
ALL DATA READ button. (DV-5900M only)

I To quit ALL DATA READ mode, Press the I button.

29

g 19,"!qu

Page 47

4-5-3 Switching the Viewing angle ()

When a DVD containing the recording of multiple
viewing angles is playedl the angles can be switched as
desired.

Operation procedure

1. During playback of DVD, ensure that the "ANGLE"
indicator in the display is lit.

2. Press the ON SCREEN button during playback, then
display the "VISUAL" OSD by pressing the cursor up/
down.

3. Move the cursor to it. 1 (Angle icon) by

pressing the cursor left/right button, then press the
ENTER button.

4. Select the desired angle number by pressing the cursor
up/down button, then press the ENTER button.

0 With a DVD, a viewing angle number can be
selected from up to 9 numbers

Chapter 4: OSD Operation

47

17 muting)

Page 50

Chapter 4

Chapter 5: Applied Operations

5-3-2 Checking the program

The contents of the existing program can be checked or
modified.

Press the CHECK button during stop or playback.

. Each time the CHECK button is pressed, the
program No. and the disc No. are displayed.

0 Press each button within 20 seconds after pressing
the previous button.

5-3-3 To change a track in the program

Operation procedure
(Enter stop mode before proceeding.)

1. Press the CHECK button repeatedly until the pro-
gram No, to be changed is displayed.

2. Perform steps 2 and 7 of "Registering and playing
the program" --

5-3-4 Clearing the program
One or all tracks in the existing program can be cleared.
To clear a track from the program list :

Press the CLEAR button.

0 Each time the CLEAR button is pressed, the last
track in the program is cleared.

To exit the PGM :

(Enter stop mode before proceeding.)

Press the PGM button.
0 The unit enters normal play mode (Track mode).

50

5-4 Random playback
Disc Random Playback

Tracks in a desired disc can be played back in a random
order. (Disc random playback is not available with DVD
VIDEO, MP3 file.)

All Disc Random Playback

Tracks in all discs in the stocker can be played in a random
order. (All random playback is not available with DVD
VIDEO, MP3 file.)

0 Set the player to stop mode

0 lfAll Disc Random Playback is required, begin the
procedure from step 3.

Operation procedure
1. Check that the player is in the normal play (TRACK
.@

mode).

2. The disc number can also be selected using the DISC
SEL. and numeric buttons on the remote.

o The disc number can also be selected using the
DISC + (up)/- (down) button on the remote.

o The disc number can also be selected by rotating
the DISC knob on the front panel.

0 The discs in the PLUSl to PLUS3 slots cannot be
played with random playback.

3. Press the SET button.

4. Press the RANDOM button to select "ONE RANDOM".

If All Disc Random Playback for playing tracks
in all discs in a random order is required :

Press the RANDOM button to select "ALL RANDOM".

0 When the player enters the random mode, the
"RANDOM" indicator in the display lights to
indicate that the player is in the disc random mode.

I With ALL RANDOM" playback, the discs that
cannot be played in a random order, such as the
DVD-VIDEO discs and discs containing MP3 files,
are skipped and the next disc will be played.

5-4-1 Stopping random playback

Press the I button.
I The "RANDOM" indicator turns off.

Page 65

Chapter 6 : Specifying and Using Disc or Track Data

To search the next disc b ; Searching the music 13mg 5. Press the SET button.
Press the DISC + (Plr ' (down) button. (MUSIC TYPE SEARCH mode] I Ifthere is no disc registered in the specified music

To play the searched disc type, "No ENTRY" Will be displayed.

Press the SET button or the > button. The discs registered in the specified music type can be

searched in sequence. 0 When daisy chain connection 1s set, the set changer

To eject the searched disc units can be switched using the MAIN, SUB 1 and

Press the A ElECT button 0 Check that the unit is in the normal play TRACK SUB 2 buttons.
I mode. -3;
0 Register music type. --

6. Select one of the following operations for the search
Operation procedure target disc.

1. Press the MODE button.

0 When the MODE button is pressed during MUSIC To 5931de the 2X1 disc
TYPE SEARCH mode, the MUSIC TYPE SEARCH Press the DISC + (up), - (down) button.
mode is cancelled. To play the searched disc

Press the SET button or the > button.

To eject the searched disc

2. Press the DISC + (up), - (down) button to select Press the A EIECT button.

DISC SEARCH ", then press the SET button.

3. Press the DISC + (up), - (down) button to select MU-
SIC TYPE", then press the SET button.

Disc search can be activated using the buttons on
the main unit. (MUSIC TYPE SEARCH mode)

0
4. Press the DISC + (up), - (down) button to select the Operation procedure é
mus1c type to be searched. 3
o
1. Set the player to stop mode. a
0 Discs can be registered separately by 26 types of 2. Press the MUSIC TYPE button.
musrc genres.
Adult Contemporary, Alternative Rock, 3. Turn the DISC knob to select the "music type
ChildrensMusic, Classical, Contemporary 10 be SEBIChEd.
Christian, Country, Dance, Easy Listening, Folk,
Gospel, Hip Hop, Jazz, Latin, Musical, New 4- Press the SET button.

Age, Opera, Operetta, Pop Music, Rap, Reggae,
Rock Music, Rhythm & Blues, Sound Effects,
Sound Track, Spoken Word, World Music

o The registered music types are displayed.

65

Page 75

7-3-2 "Rating" Setting

This setting makes it possible to inhibit the playback
of adult DVD videodiscs that you do not want the
children to View. However, there are some discs which
carries an X-rating indication on the jacket but do not
contain recording of the viewing restriction label. With
such discs, the viewing restriction of the player is
invalid and playback cannot be inhibited.

The default setting is "Level 8" which means no
restriction When you change the restriction level for
the first time, you will also be requested to register a
password

7-3-3 Input of Password

Chapter 7 : Various Setups

Setting items

"8 No Limit" 2 Select to enable playback of any DVD
discs whether their targets are adults, general public
or children.

"7" to "1": When DVD software containing the
recording of restriction level (an adult-oriented disc
or a disc includingviolence), playback is restricted
in accordance with the restriction level.

"0 Lock All": Select to inhibit any DVD. Use this
setting for example when you want to inhibit
playback of an adult-oriented DVD which does not
contain the restriction information.

"Change Password": Select to change the viewing
restriction password which has been registered
before. (This item cannot be selected unless a
password has already been registered)

"Temporary Unlocked": Select to disable
temporarily the viewing restriction which has been
set previously (This item cannot be selected unless
a password has been set previously)

When no password has been set previously:

@The password input screen as shown below ap-
pears. Now compose the password using the nu-
meric buttons and press the ENTER button on the
remote

filtlng

I .v
I mung. Level
lnout . in pnsswam.

Than nmu ENTER.

El
@

0 When "a" in the screen is selected and the ENTER
button is pressed, the display returns to the setting
screen. (This effect can also be achieved by pressing
the RETURN button.)

@The password input screen changes to the confir-
mation screen, and the input password is shown
on the TV screen.

fining

me plan: is mm.
mm. rem-Mb" ma pmwom.

Puss ENTER to cumin.

©Note the password in a memo and retain it in a
safe place before pressing the ENTER button. The
password is required when setting the viewing re-
striction.

When a password has already been set:

The password input screen as shown below appears.
Now input the password using the numeric but-
tons and press the ENTER button on the remote

Hutlng
I J
. emu. Lawl
mom . 4-41in msswnm.

Thin nnss ENTER.

El
sq
\Q

0 When " a" in the screen is selected and the ENTER
button is pressed, the display returns to the setting
screen. (This effect can also be achieved by pressing
the RETURN button.)

If you select " Change Password", the screen for in-
put of the new password will open. Input the new
password using the numeric buttons and press the
ENTER button. When the password confirmation
screen appears, note the password in a memo and
retain it in a safe place then pressing the ENTER but-
ton.

75

4 4315117113

Page 95

[DV-5050M/DVF-16050]

Format section

.. DVD video ver. 11

Format .
. Semiconductor laser

Laser .......

Audio section
Frequency response

Sampling frequency: 44.1kHz (CD only)
4 Hz ~ 20 kHZ
4 Hz ~ 44 kHz
..More than 115 dB
.. More than 92 dB

Sampling frequency: 96 kHz .
Signal to noise ratio ..

Dynamic range ..
Total harmonic distortion

.. Less than 0.0045 % (1kHz)
...... More than 92 dB (lkHz)
Analog output level/impedance

Channel separation .

MIX LINE OUTPUT ................................ 2 V/ 510 Q
Digital output level/ impedance
COAXIAL ......................................... 0.5 Vp-p/ 75 Q

OPTICAL (Wave length 660 nm)
.................................................. -21 dBm ~ -15 dBm

Video Section

Video output format

DV-SOSOM ......................................................... NTSC
DVF-IGOSO
For Europe .. PAL/PAL60
For Asia ...... NTSC/PAL
For US. Military .............................. NTSC
Composite video output level . 1 Vp-p (75 Q)
S-video output level
(Y-signal) . 1 Vp-p (75 Q)
(C-signal) . 0.286 Vp-p (75 (2)
Component video output level
[DV-SOSOM]
(Interlace/ "Black Level Setup" =7.5 IRE)
(Y-signal) ....... 1 Vp-p (75 Q)
(Cb-signal) .. .. 0.68 Vp-p (75 Q)
(Cr-signal) ...................................... 0.68 Vp-p (75 Q)
[DVF-16050 for Europe, (LS. Military and Asia]
(Y-signal) ............................................. 1 Vp-p (75 $2)

(Cb-signal) .. 0.7 Vp-p (75 Q)
(Cr-signal) .. 0.7 Vp-p (75 (2)
Video signal to noise ratio ................................. 60 dB
Horizontal resolution .................................. 500 lines

Chapter 8 : Other Information

Laser Section

Wavelength
................................ 643 N 683 nm (DVD play)
Laser power class ................................... class 2 (IEC)

General Section

[UV-5050M]
Power consumption ............................................. 35 W
Dimensions ........................ W : 440 mm (17-5/16")
H : 203 mm (8)
D : 555 mm (21-20/17")
Weight (net) ........................................ 10.4 kg (22.9 lb)
[DVF-IGOSO]

Power consumption . ..................................... 35 W

Dimensions ............... : 440 mm (17-5/16")

: 203 mm (8)

: 555 mm (21-20/17")
Weight (net) ........................................ 10.4 kg (22.9 lb)

KENWOOD follows a policy of continuous
advancements in development. For this reason
specifications may be changed without notice.

Sufficient performance may not be exhibited at extremely
cold locations (Where water freezes).

95

9 1915111113
