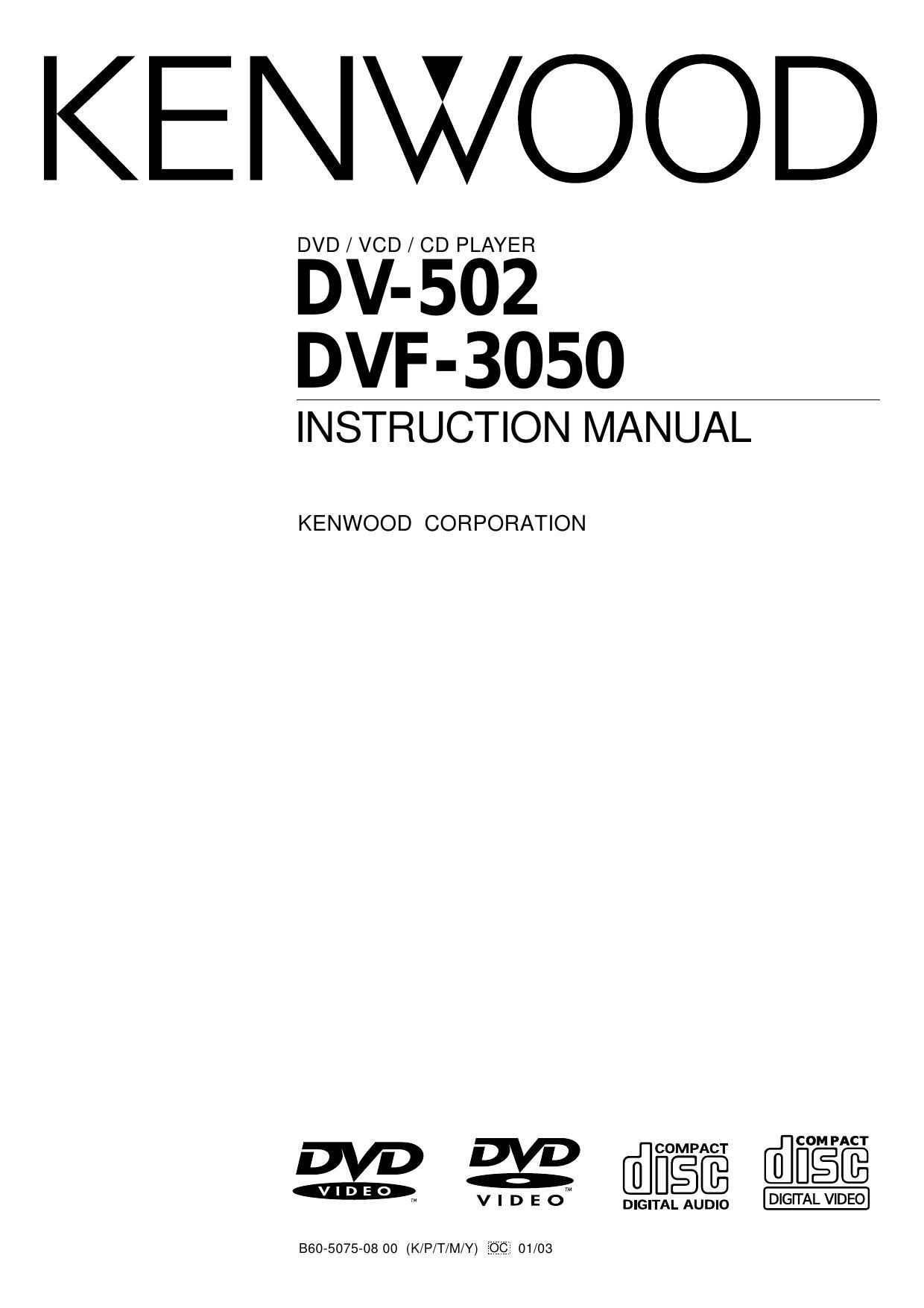

Kenwood DV 502 Owners Manual

Page 2

Introduc tion

Before applying power

Units are dsigned for operation as follows.
U.5.A. and Canada .. A C 120V only
Australia ..................... A C 240 V only

For the United Kingdom

Factory fitted moulded mains plug

1. The mains plug contains afuse. Forreplacement, use
only a 3-Amp ASTA-approved (BS 1362) fuse.

2. The fuse cover must be refitted when replacing the
fuse in the moulded plug.

3. Do not cut off the mains plug from this equipment. If
the plug fitted is not suitable for the power points in
your home or the cable is too short to reach.

A power point, then obtain an appropriate safety
approved extension lead or adapter, or consult your
dealer. lf nonetheless the mains plug is cut off,
remove the fuse and dispose of the plug immediately,
to avoid a possible shock hazard by inadvertent.
Connection to the mains supply.

IM PORTANT :
The wires in the mains lead are coloured in accordance
with the following code:

Blue : Neutral

Brown : Live
Do not connect those leads to the earth terminal of a
three-pin plug.

Safety precautions

DV~502/DVF73050 (EN/K,P,T,M ,Y)

A Caution : Read this page carefully to ensure safe operation.

Europe and U.K
*Other countries

AC 230V only
C 110-120/ 220-240 szitchable

/!\ Caution : Read this page carefully to ensure safe operation.

WARNING :TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.

CAUTION

alsn or ELECYRlC sNocK
no nor am.

CAUTION: TO REDUCE THE RISKOF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SER-
VICING TO QUALIFIED SERVICE PERSONNEL.

A

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRI-
ANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DAN-
GEROUS VOLTAGE" WITHIN THE PRODUCTS ENCLOSURE THAT MAY BE OF SUFFICIENT
MAGNTTUDE TO CONSTTTUTE A RISKOF ELECTRIC SHOCKTO PERSONS.

A

THE EXCLAMATION POINT WTTHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT
THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SER-
VICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

The marking of products using lasers
(Except for some areas)

CLASS 1
LASER PRODUCT
The marking is located on the rear panel and says that
the component uses laser beams that have been clas-
sified as Class 1. It means that the unit is utilizing laser

beams that are of a weaker class. There is no danger of
hazardous radiation outside the unit.

Page 4

I IM POR TANT SA FEG UARDS A

DV~502/DVF~3050 (EN/K,P,T,M ,Y)

as

Please read all of the safety and operating instructions
before operating this appliance. Adhere to all warnings on
the appliance and in the instruction manual. Follow all the
safety and operating instructions. These safety and
operating instructions should be retained for future
reference.

1. Power sources - The appliance should be connected to
a powersupplyonly ofthe type described inthe instruction
manual or as marked on the appliance. If you are not sure
of the type of power supply to your home, consult your
appliance dealer or local power company. For appliances
intended to operate from battery power, or other sources.
refer to the instruction manual.

2. Power-cord protection - Power-supply cords should
be routed so that they are not likely to be walked on
or pinched by items placed upon or against them.
pay particularattention to cords at plugs, convenience
receptacles, and the point where they exit from the
appliance.

3. CAUTION - Polarization - This appliance may
be equipped with a polarized altemating-current line plug (a
plug having one blade widerthan the other). This plug will
fit into the power outlet only one way. This is a safety
feature. If you are unable to insert the plug fully into the
outlet, try reversing the plug. If the plug should still fail to
fit, contact your electrician to replace yourobsolete outlet.
Do not defeat the safety purpose of the polarized plug.

4. Ventilation - Slots and openings in the cabinet are
provided for ventilation and to ensure reliable operation of
the appliance and to protect it from overheating. and these
openings must not be blocked or covered. The appliance
should be situated so that its location or position does not
interfere with its proper ventilation.

To maintain good ventilation, do not put records ora table-
cloth on the appliance. Place the appliance at least 10 cm
away from the walls.

Do not use the appliance on a bed, sofa. mg or similar
surface that may block the ventilation openings. This
appliance should not be placed in a built-in installation such
as a bookcase or rack unless proper ventilation is provided
orthe manufacturers instructions have been adhered to.

5. Water and moisture - The appliance should not be
used near water - for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool, etc.

. Temperature - The appliance may not function

properly if used at extremely low, or freezing
temperatures. The ideal ambient temperature is
above +5°C (41°F).

. Heat - The appliance should be situated away from

heat sources such as radiators, heat registers. stoves,
orotherappliances (including amplifiers)that produce
heat

. Electric shock- Care should be taken so that objects

do not fall and liquid is not spilled into the enclosure
through openings. If a metal objects, such as a hair
pin or a needle, comes into contact with the inside of
this appliance, a dangerous electric shock may result.
For families with children, never permit children to
put anything, especially metal, inside this appliance.

9. Enclosure removal - Never remove the enclosure.

lfthe internal parts are touched accidentally, a serious
electric shock might occur.

10.Magnetic fields - Keep the appliance away from

sources of magnetic fields such as TV sets, speaker
systems, radios, motorized toys or magnetized
objects.

11.Cleaning - Unplug this appliance from the wall

outlet before cleaning. Do not use volatile solvents
such as alcohol, paint thinner, gasoline, or benzine,
etc. to clean the cabinet. Use a clean dry cloth.

12.Acoasoris - Do not place this appliance on an unstable

cart, stand, tripod, bracket, ortable. The appliance may fall,
causing serious injury to a child or adult, and serious
damage to the appliance. Use only with a cart, stand,
tripod. bracket, ortable recommended bythe manufacturer,
or sold with the appliance. Any mounting of the appliance
should follow the manufacturers instructions. and should
use a mounting accessory recommended by the
manufacturer. An appliance and cart combination should
be moved with care. Quick stops, excessive force, and
uneven surfaces may cause the appliance and cart
combination to overturn.
