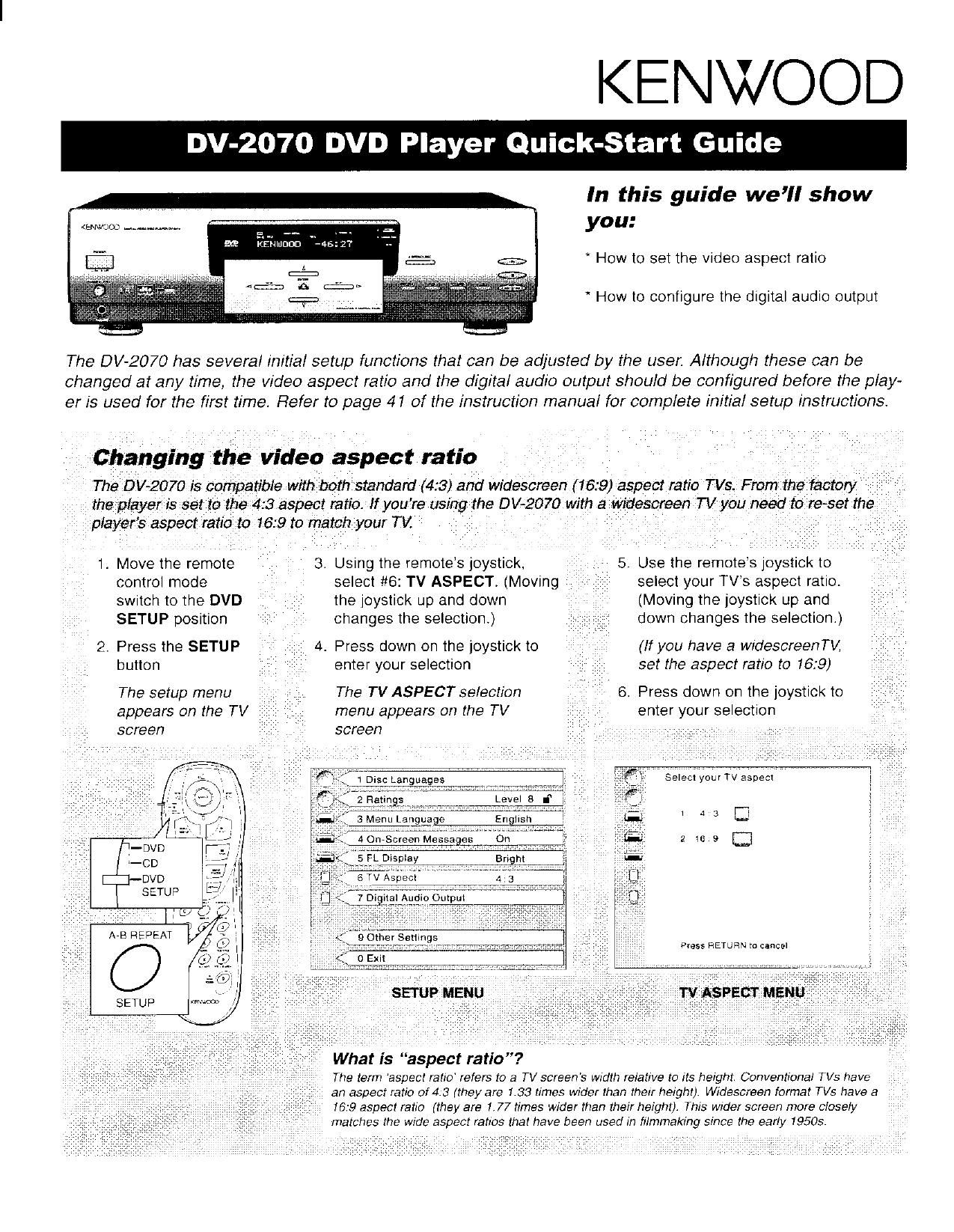

Kenwood DV 2070 Guide

Page 1

KENWOOD

_y , In this guide well show
' (moo _____ M j you:

PIE-Mutant! -45: 21'

* How to set the video aspect ratio

How to configure the digital audio output

The DV-2070 has several initial setup functions that can be adjusted by the user. Although these can be
changed at any time, the video aspect ratio and the digital audio output should be configured before the play-
er is used for the first time. Flefer to page 41 of the instruction manual for complete initial setup instructions.

Changing the video aspect ratio

The Div-2070 is compatible with both standard (4:3) and widescreen (18:9) aspect ratio TVs. From the factory
theplayer is set to the-4:3,aspect ratio. If youre using the DV-2070 with a widesoreen TV you need to re-set the
players aspect ratio to 16:9 to match your TV.

1. Move the remote 3. Using the remotes joystick. _ 5. Use the remotes joystick to

control mode select #6: TV ASPECT. (Moving - select your TVs aspect ratio.
switch to the DVD the joystick up and down ' (Moving the joystick up and
SETUP position changes the selection.) - _ down changes the selection.)

2. Press the SETUP T 4. Press down on the joystick to _ (If you have a widescreenTV,
button enter your selection set the aspect ratio to 16:9)
The setup menu The TV ASPECT selection H I 6. Press down on the joystick to
appears on the TV _ menu appears on the TV enter your selection

screen screen

Select your TV aspect

1 DISC L

2 Ratin

,., 3MenuLa A 3 C
AOn-Screen Mes 2 is 9

" 5FL
L 5 TV Aspect

" 70 alAudio

9 Other Settings

Press RETURN to cancel
0 Exit

,_: SETUPMENU

What is aspect ratio?
The term aspect rat/0' refers to a TV screen '5 Width relative to its height. Conventional TVs have
an aspect ratio of 4.3 (they are 1.33 times wider than their height). Widescreen format TVs have a
16:9 aspect ratio {they are 1.77 times wider than their height). This wrder screen more closely
matches the wide aspect ratios that have been used in filmmaking since the early 19505.

Page 2

DV-2070 Quick-Start Guide

7:.COnf'gurIng the digital audio output

- The DV 2070 is compatible with Dolby Digital and DTS movie DVDs, standard 605, CDs with DTS
- multichannel music and 2- channel DVD audio discs In the 24~bit/~96kHz format Yoilr system 5 sur-
round sound decoding capability and the type of software you play will determine how you configure

the digital output.
1. Follow steps 1 and 2 on the 4. Use the remotes joystick to select each of the 3
previous page to activate the digital signal formats. Use the joystick to configure
SETUP mode each format individually. (Moving the joystick up

2. Using the remotes joystick, and down changes the selection.)

select #7: DIGITAL AUDIO
OUTPUT. (Moving the joystick
up and down changes the
selection.)

LPCM (DVD): If you will be playing 24-bit/96kHz
audio DVDs, set LPCM (DVD) to OFF
(factory setting). This shuts-off the
DV-2070s digital outputs and uses its
internal D/A converters, so you must
connect the DV-2070s analog outputs
to your receiver or amplifier.

If you set LPCM (DVD) to PCM, 24-
bit/96kHz audio DVDs will be automat-
ically downconverted to a 20-bit/48kHz
digital signal and sent out via the digi-
tal output. The 24-bit/96kHz signal is
still converted to analog by the
DV-2070s internal D/A converters and
sent through its analog outputs.

3. Press down on the joystick to
enter your selection

1 Disc L

2 Ralin

8 Menu La

AOn-Screen Mess

EFL

6 TV Aspect

7DI Ital Audlo Out ut

9 Other Settings

Dolby Digital: If your system has a Dolby Digital
decoder, set Dolby Digital to BIT-
STREAM (factory setting). This will
send the Dolby Digital bitstream
through the digital output to the
decoder
If your system does not have a Dolby
Digital decoder, set Dolby Digital to
PCM.

dts: If your system has a DTS decoder, set
DTS to BITSTREAM (factory setting).
This will send the DTS bitstream
through the digital output to the
decoder

0 Exit

The DIGITAL AUDIO OUTPUT
selection menu appears on the
_ TV screen

Digital Audio Output

l LPCM \DVD) Oil
2 Dolby Digital ansimam
a dis

Bustream

If your system does not have a DTS
decoder, set DTS to OFF.
